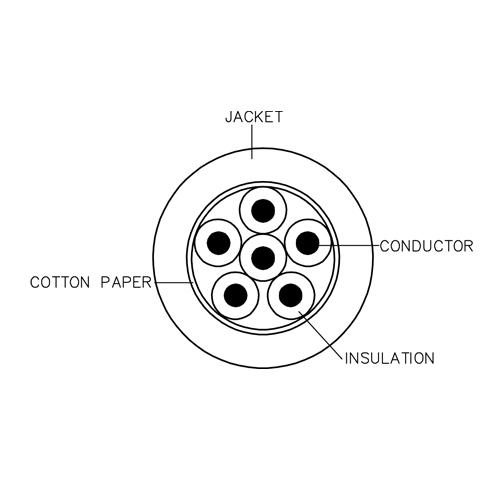

Technical drawing AWG28 Round Cable | 6-pin LTG-MPPE-06XAWG28-UL21455-WH Technical drawing This 6-pin unshielded round wire AWG28 with a strand diameter of only 0.60 mm is especially designed for LED backlight applications. Technical data:

AWG28

6-pin, tin-coated copper strand no halogens, LSOH and RoHS free

outer diameter: 3.5 mm

strand diameter: 0.60 mm

insulation jacket: MPPE-PE

white wire, cable roll = 500 m

operating temperature: -10°C to 80°C,30V

UL 21455 This cable is also available in a 4 or 10 pin version ( LTG-MPPE-4XAWG28-UL21455-WH / LTG-MPPE-10XAWG28-UL21455-WH ) or in a five and ten twisted pair version ( LTG-MPPE-5X2XAWG28-UL21455-WH / LTG-MPPE-10X2XAWG28-UL21455-WH ).
