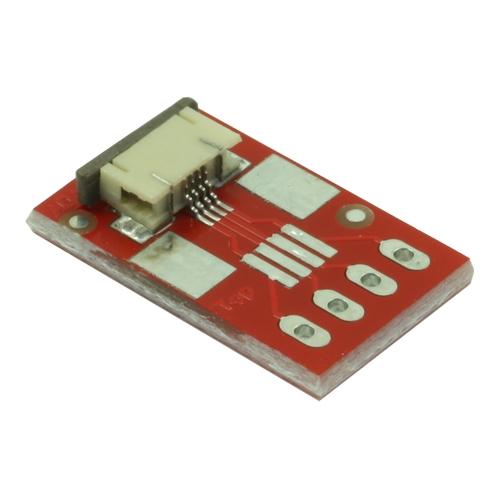

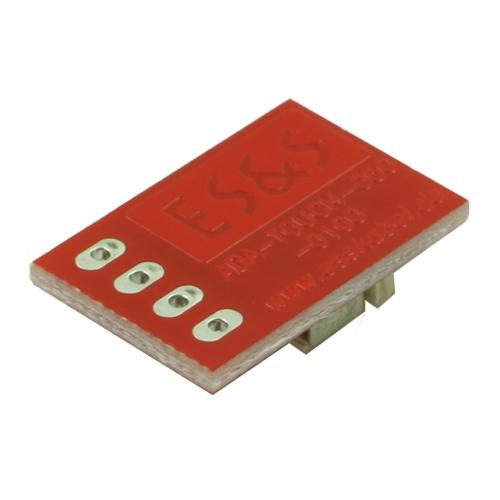

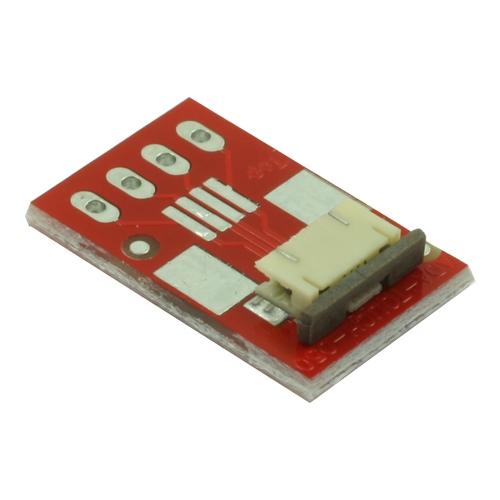

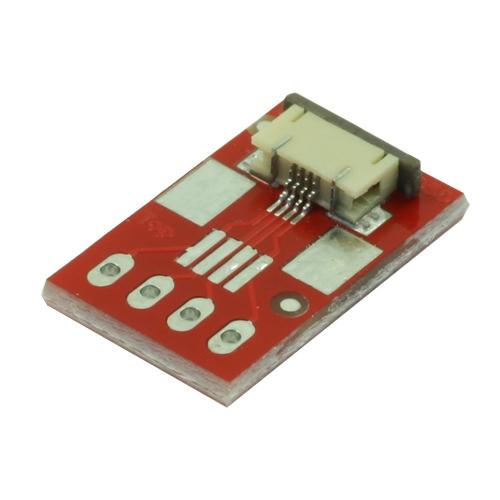

Adapter for FFC/FPC | pitch: 0.50 mm | 4-pin ADA-TOUCH-4P-050 This adapter is designed to connect a touch controller up to 4 pins to a standard FFC cable with a pitch of 0.50 mm. On side 2 strands, flat- or round-cables can be soldered.

dimension: 19 (l) x 12 (w) x 4.5 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 1 g

Connectors:

side 1: FFC connector, 4-pin, pitch: 0.50 mm, ZIF

side 2: 4 solder pads with pitch: 2.54 mm

The suitable FFC cable in various lenghts, can be supplied from stock.
