OKI Manufacturer datasheet OKI cable length USB 3.0 cable for robotics | drag chain compatible KAB-OKI-USB3-KR1-A-MBS-050 OKI Manufacturer datasheet OKI cable length

OKI Electric Cable has developed a new USB3 Vision Cable that combines the most important requirements for industrial image processing cables: USB3.0 high-speed transmission and high flexibility.

The cable can be ordered optionally with screw locking on one or two cable sides. This screw locking prevents an unplugging by accident and therefor an extremely solid connection is guaranteed. This product is suitable for robot systems and other industrial equipment. The interface cable with its special isolation is suitable for the use in drag chains. The drag chain capability has been tested with over 1 million flex cycles with a radius of 10 cm.

side 1: USB3.0-A male

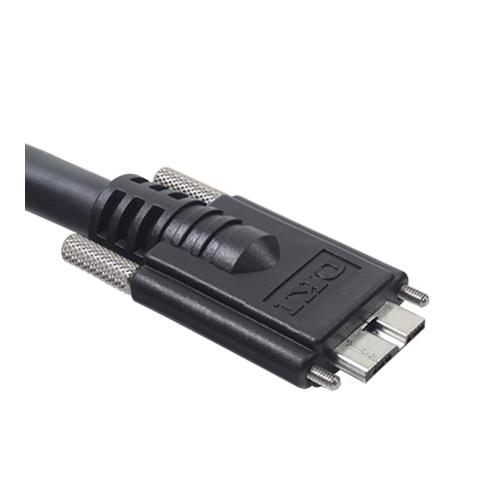

side 2: USB3.0-micro B male

trandfer rate: 5GHz max. 3 m

cabel: Ø 8,2 mm, black, PVC

L = 5000 mm

temperatur: 80°C, 30V

flame resistance: VW-1

RoHS compatible

UL20276

Alternative versions: USB3-T8-A-MBS-030, USB3-T8-A-MBS-050, USB3-T8-A-MBS-060, USB3-T8-A-MBS-070, USB3-T8-A-MBS-080, USB3-KR1-A-MBS-030, USB3-KR1-A-MBS-050, USB3-KR1-A-MBS-080

Compatible 'Baumer' cameras: VCXU camera, VEXU camera, MXU camera, VLU camera, PXU camera"
