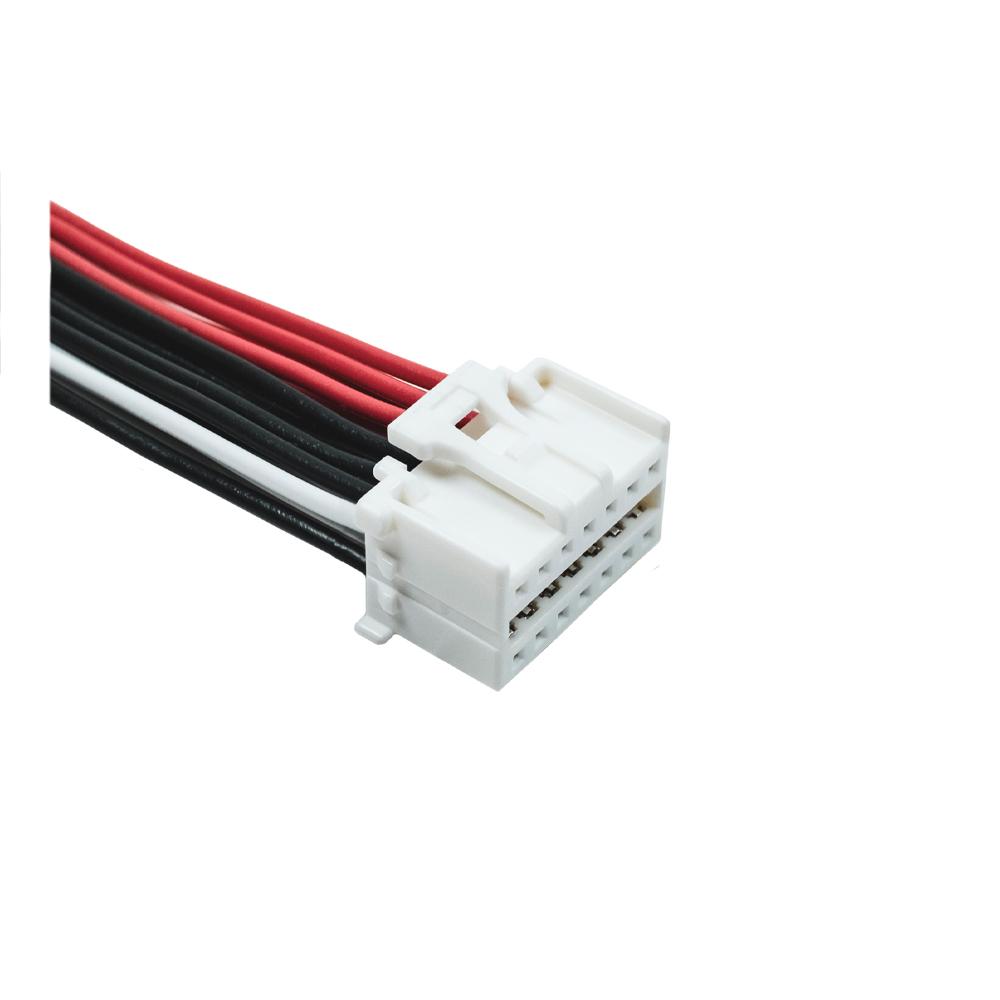

Back to overview New High-Quality Connection Cable for Display Backlighting KAB-51353-1400-0500LI High-Quality Connection Cable for Display Backlighting Our LED Backlight Cable (e.g. P2700FHF1MA00) is the ideal solution for stable and reliable power delivery to LED backlighting systems in displays, monitors, and industrial panels. It ensures a secure connection and guarantees safe and long-lasting performance. This LED Backlight Cable is perfectly suited for use in LED displays, LCD modules, TFT monitors, and industrial display units. It provides the ideal solution for repairing or replacing backlight systems in notebooks, tablets, and industrial control systems, ensuring consistently reliable and stable power transmission. Technical Data:

Side1: 51353-1400

Side2: open end

Wires: 14 × AWG22 stranded, UL1061

Length: 500 mm (outer)

Colour coding: Pin 1, 4–9: Black, Pin 10–14: Red, Pin 2, 3: White

Key Features

• Thanks to its high-quality construction and versatile connection options, the LED Backlight Cable P2700FHF1MA00 is the perfect choice for repairs, upgrades, and custom modifications. In addition to the standard version, we also offer tailor-made cable assemblies according to your specifications – whether with custom lengths, special connectors, or other individual configurations for your application.

Product Notes

High-quality workmanship: Durable strands ensure reliable power transmission

Versatile application: Compatible with a wide range of display backlight systems

Flexible use: The open cable end allows for customised adjustments

Optimal signal transmission: Low voltage losses ensure uniform and stable illumination

Matching crimp contact: : KON-MLX-56134-9000

Passende Displays : P2700FHF1MA00
