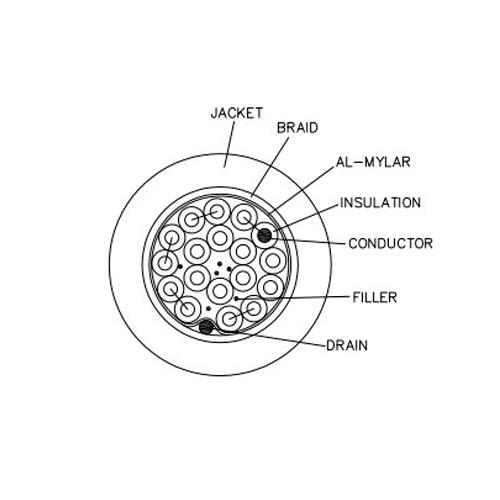

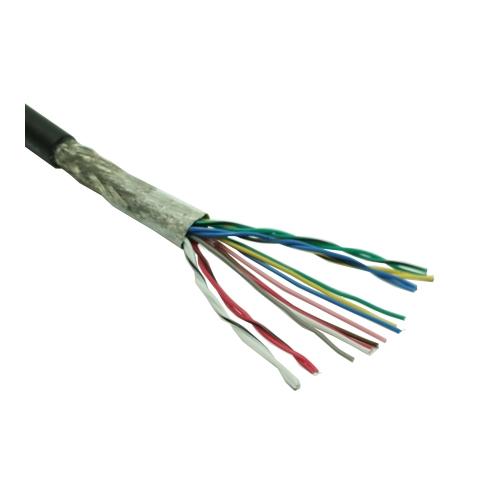

Drawing / Special Cable for LVDS Signals with Overall Shielding | 18-pin LTG-LVDS-05P-08C-AWG30-UL21445-BK Drawing / Special-purpose cable for the transmission of LVDS signals with an overall screen. 18-pin LVDS round cable AWG30 (7/0.10) x (5P+8C) 5 twisted pair and 8 single conductors LSOH-jacket, free of halogen

colour: black

Free of halogen

Diameter of conductor: = 0.60 +/- 0.05 mm

Total diameter of TPE jacket: = 5.1 +/- 0.2 mm

Operating temperature: -10°C to 80°C with 30V

UL 21445
