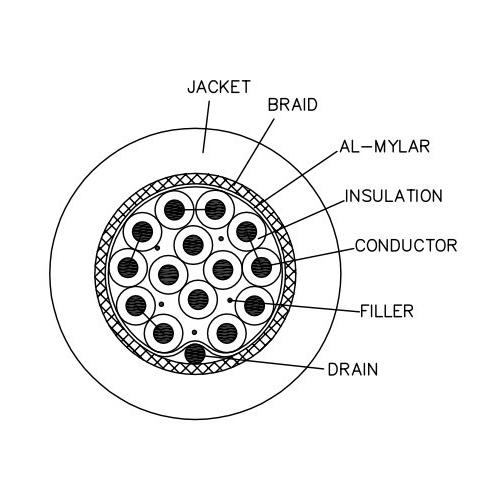

Drawing / Special Cable for LVDS Signals with Overall Shielding | 14-pin LTG-LVDS-04P-06C-AWG30-UL21445-BK Drawing / Special-purpose cable for the transmission of LVDS signals with an overall screen. 14-pin LVDS round cable AWG30 (7/0.10) x (4P+6C) 4 twisted pair and 6 single conductors LSOH-jacket, free of halogen

colour: black

Diameter of conductor: = 0.60 mm +/- 0.05 mm

Total diameter of TPE jacket: = 4.6 mm +/- 0.2 mm

Operating temperature: -10°C to 80°C with 30V

UL 21445
