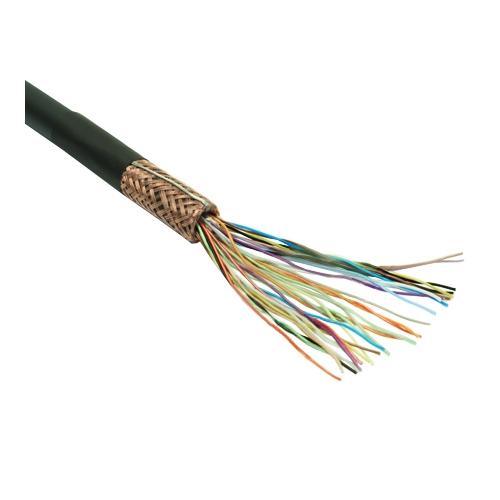

for Don Connex Series A32 Technical details Special Cable for DUAL LVDS Signals | 30-pin, AWG28 LTG-LVDS-15P-00C-AWG28-UL20276-BK-CHAIN for Don Connex Series A32 Technical details Special cable for the transmission of DUAL LVDS signals with an overall screen. This LVDS special cable is especially suitable for a highly flexible and robust application – furthermore it is suitable for drag chains. 30-pin 2 x 15-pin twisted pair) AWG28 (30/0.05) tinned copper wire conductor single conductor - core diameter = 0.58 mm +/-0.05 mm FEP jacket outer diameter = 8.2 mm +/- 0.2 mm UL20276 ( -10°C to 80°C, 30V) oil resistance shielding by braid drain wire color matt black packing unit 100 m suitable for drag chains

sliding: 20 millions bending

bending: 20 millions bending

twisting: 20 millions bending

Cable also with 10 pairs (20-pin) with an outer diameter 7,7 mm +/- 0,02 mm available on request. *The data are based on defined test conditions. (The number of bending cycles represent only reference data and are no guaranteed minimum value.)
