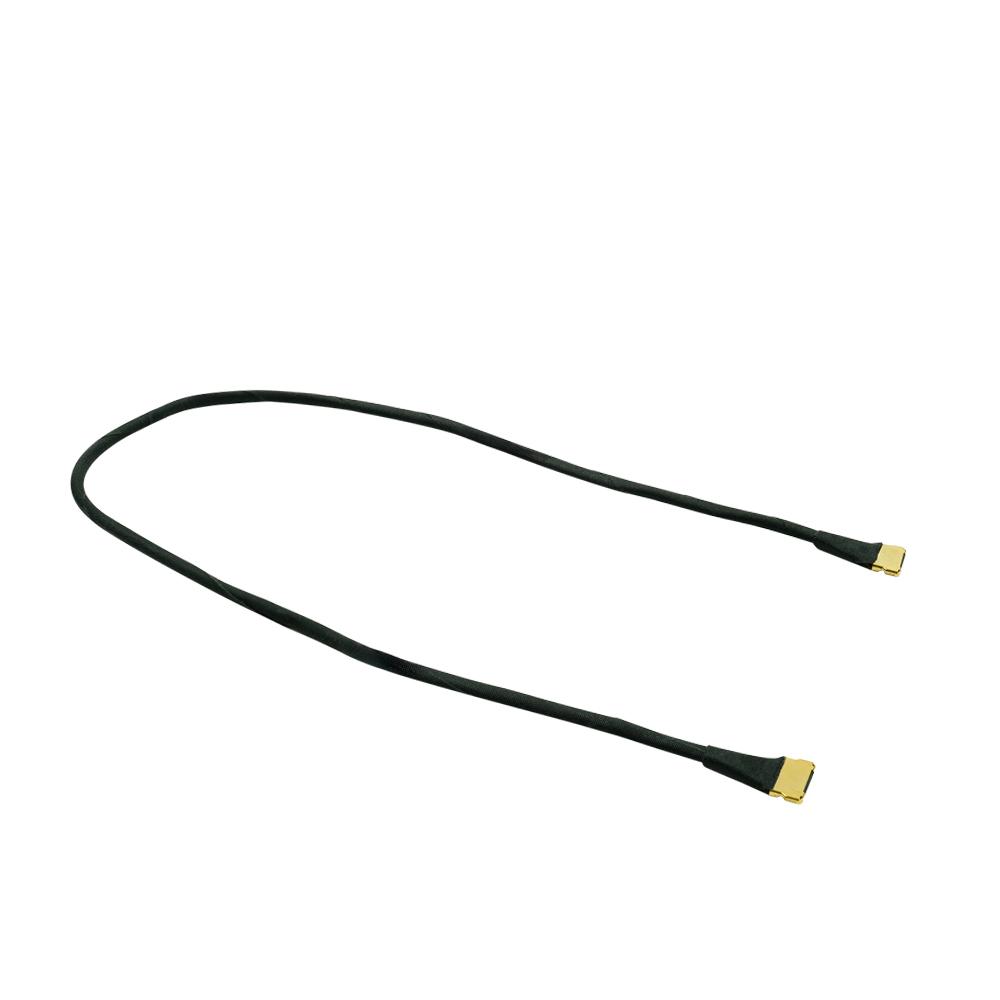

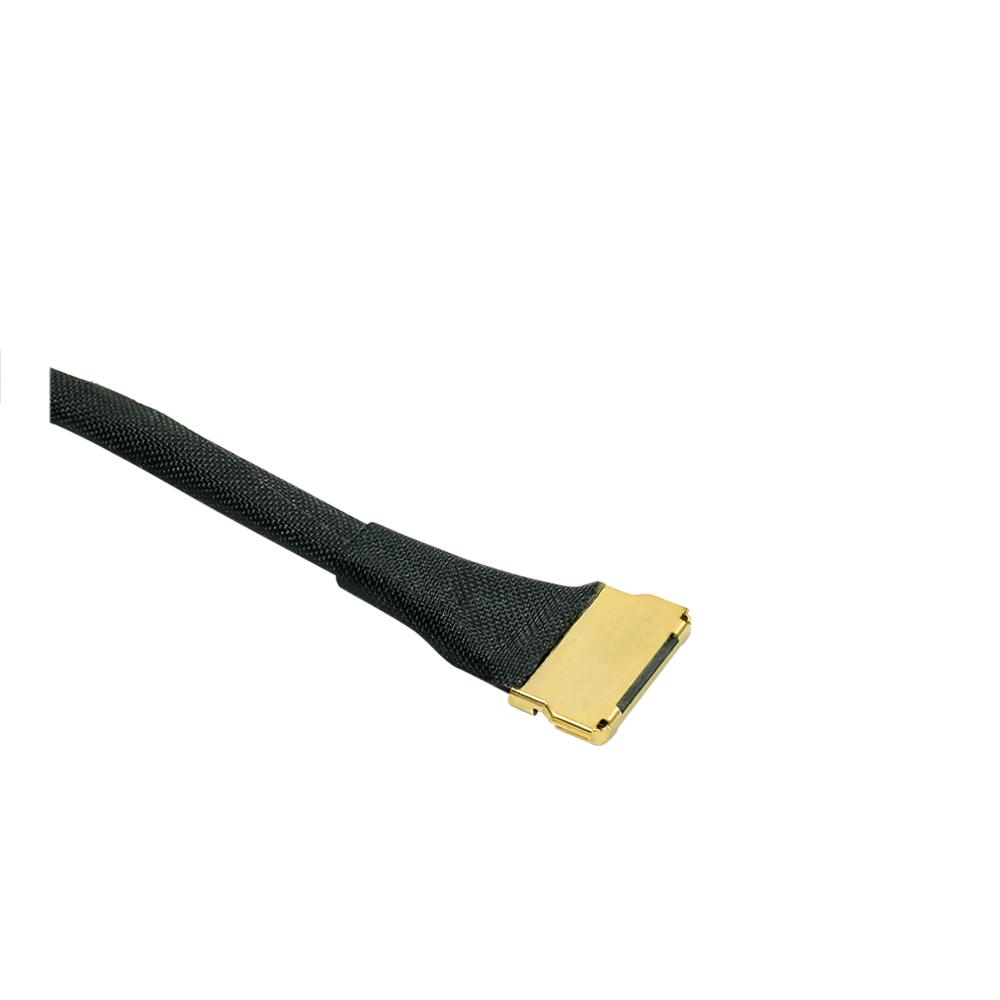

Back to overview New Micro-Coaxial Cable with I-PEX CABLINE®-UY Connector KAB-20857-010T-COAX-0200-1:1 Are you looking for a reliable and high-performance cable for your high-speed data transmissions? We have the perfect solution for you! Our new micro-coaxial cable with an I-PEX CABLINE®-UY connector offers excellent shielding and high data transfer rates. The cable features an I-PEX CABLINE®-UY connector, making it ideal for micro, twin-coaxial cables and discrete wires. With a low mating height of just 0.82 mm, it is optimised for space-saving applications. Thanks to its compact design, this cable is particularly suitable for applications with limited space, such as mobile devices, wearables, and high-speed data transmissions. Product Features:

Ultra-fine pitch: 0.35 mm

Available in 5- and 10-pin configurations High data transfer rate of up to 32 Gbps per line Space-saving design with a low mating height of just 0.82 mm Various cable lengths available upon request

Side 1: I-PEX 20857-010T

Side 2: I-PEX 20857-010T

Conductor: µCoax AWG42, round taped, L = 200 mm (total)

Pinout: 1:1 configuration

Temperature range: -40°C to 85°C

RoHS compliant

Mating height: 0.82 mm max.

Mating direction: Vertical

Pitch: 0.35 mm

Available pin count: 5 or 10

Supported cable types: Micro-coaxial cables: AWG #40 - #46

Discrete wires: AWG #36 - #46

CABLINE®-UY Article Numbers: Connector Cable:

5-pin: 20857-005T-01

10-pin: 20857-010T-01

SMT PCB Receptacle:

5-pin: 20854-005E-02

10-pin: 20854-010E-02
