Micro Coax LVDS Cable

KAB-DF81D-40P-DF13-30DS-0500LI Technical drawing Product catalogue: DF81 series

Discover our innovative Micro Coax LVDS cable for your customized applications. Our exclusive Micro Coax LVDS cable has been crafted with the utmost precision and expertise to meet individual requirements. It not only stands out for outstanding performance but also allows for fully customizable pin configuration, catering to the unique needs of each application. The configuration is created according to customer specifications – giving you the freedom to design the connection based on your specific requirements and applications! Whether in industrial automation, medical technology, consumer electronics, or other demanding applications, our Micro Coax LVDS cable is versatile. The use of individual Teflon conductors, a cable sheath wrapped with a conductive band and an acetate tape mantle, along with UL10064 certification, ensures improved electrical performance and safety.

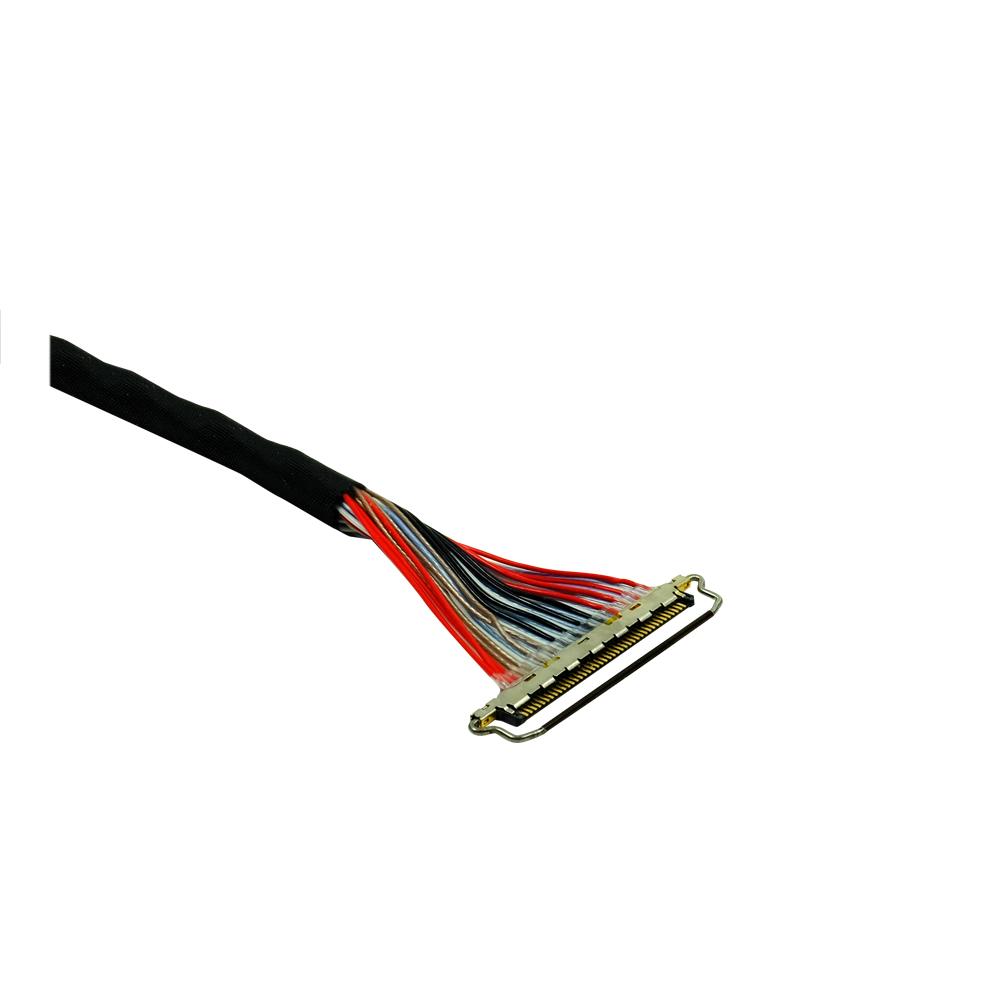

Side 1: HIROSE DF81D-40P-0.4SD

Side 2: HIROSE DF13-30DS-1.25C

Teflon Conductor: 32AWG

Cable Sheath: Conductive band wrapped with acetate tape

UL10064

Length (L): 500 mm

RoHS compliant

The cable is compatible with LCD: P1330FHF1MA00, MW-133FLTNHI-10

Matching pin header: DF81-40S-04H(52)

Regarding HIROSE DF81:

Connector Length: 16.16, 16.8, 20.16, 20.8, 24.16, 24.8 mm

Connector Width: 2.64, 2.75 mm

Connector Height: 0.82, 0.9 mm

Pitch: 0.4 mm

Rated Current max. [A]/Pin: 0.3 A

Rated Voltage: AC 100 V

Temperature Range: -35 °C to +85 °C

Number of Contacts: 30, 40, 50

Mating Cycles: 30

Conductor Cross Section AWG: 36 - 46 (micro coax), 34, 36 (single wire)

Key Features

• Space-saving design
• Supports eDP™: DisplayPort™ Version 1.3, MIPI (D-PHY)
• Improved shielding
• Secure locking with a rotary latch
• Regarding HIROSE DF13 – SignalBee™:
• Rated Current max. [A]/Pin: 1.0 A
• UL 1571, 1061
• Flat design
• Suitable for automatic assembly
• Withstands high tensile forces due to laterally mounted metal fittings.

Product Notes

High-speed data transfer: 5.4 Gbit/s

Versatile use: Suitable for both micro coaxial cables and single strands.

Connector Length: 22.9 mm

Connector Width: 5.2 mm

Connector Height: 4 mm

Pitch: 1.25 mm

Rated Voltage: AC 150 V

Temperature Range: -35 °C to +85 °C

Number of Contacts: 30

Mating Cycles: 30

Conductor Cross Section AWG: 32 (min.), 26 (max./single wire)
