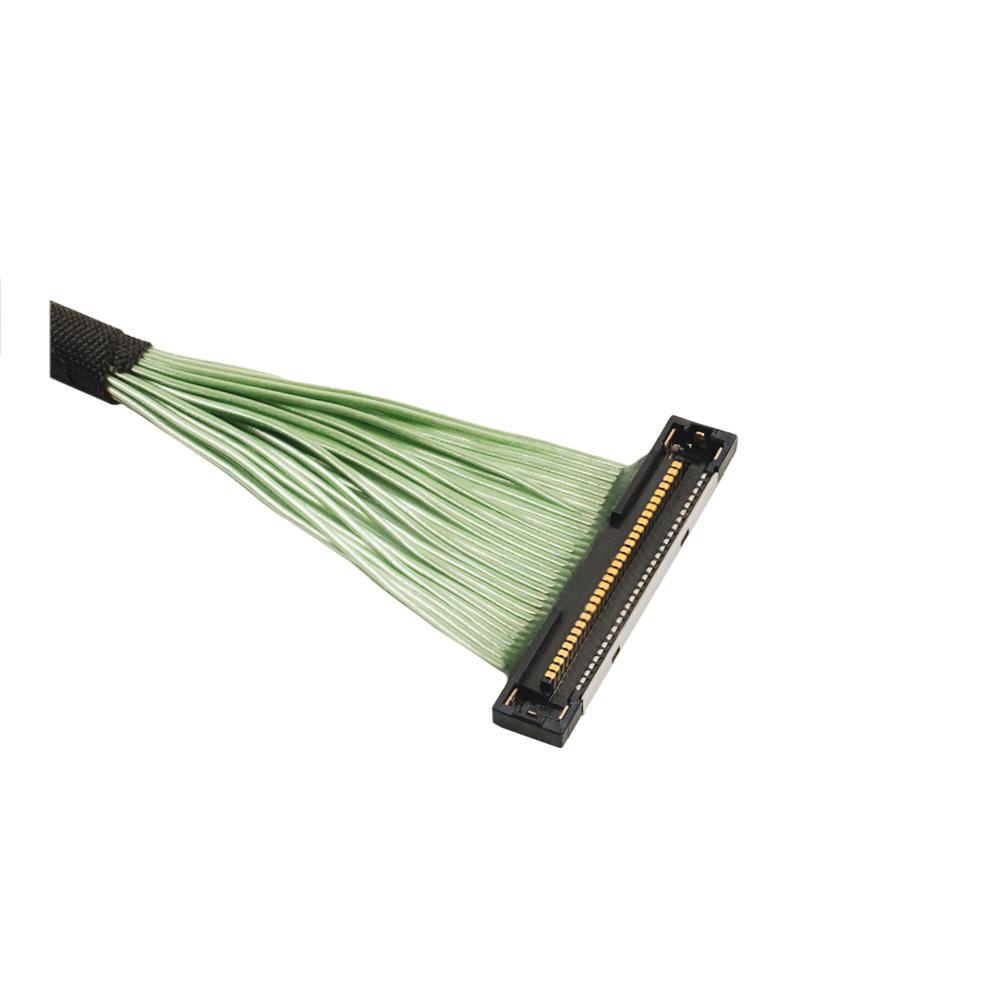

Back to overview New Micro Coaxial Cable Hirose DF36 | 30-Core KAB-DF36-30P-DF36-30P-0152-1:30-ROUND The customised DF36 micro coaxial cable combines an extremely compact design with high signal quality and reliable connectivity. Based on the Hirose DF36 series with a 0.4 mm pitch, it features a round, 30-core micro coaxial cable (AWG42, standard length 100 mm, 1:30 pin assignment). Both cable ends are equipped with DF36C-15P-0.4SD connectors. The cable can also be supplied in a 1:1 single-pole configuration; customer-specific lengths and pin assignments are available on request. Technical Data :

Side 1: Hirose DF36C-15P-0.4SD, pitch 0.40 mm

Side 2: Hirose DF36C-15P-0.4SD, pitch 0.40 mm

Cable: 30-core round micro coaxial cable, AWG42

Length: 100 mm

Pin assignment: 1:30

RoHS2-compliant The DF36 series with its 0.4 mm pitch enables reliable signal transmission in applications with extremely limited space. High manufacturing precision ensures stable high-frequency performance, minimal signal loss and excellent vibration resistance. Key Advantages : Space-saving design with only 0.4 mm pitch Secure locking mechanism for vibration-resistant connections Multi-point shielding for reliable EMC protection Gold-plated contacts for extended durability RoHS2-compliant & halogen-free for sustainable applications Typical Applications : Drones & UAVs Camera modules & displays Medical devices & ultrasound equipment Security systems & laptops Industrial and measurement technology The DF36 micro coaxial cable is ideal for demanding signal, data and imaging transmission and can be tailored to customer-specific requirements in terms of length, pin assignment or number of poles. We look forward to providing you with personal advice and supporting you in selecting the optimal configuration for your application.
