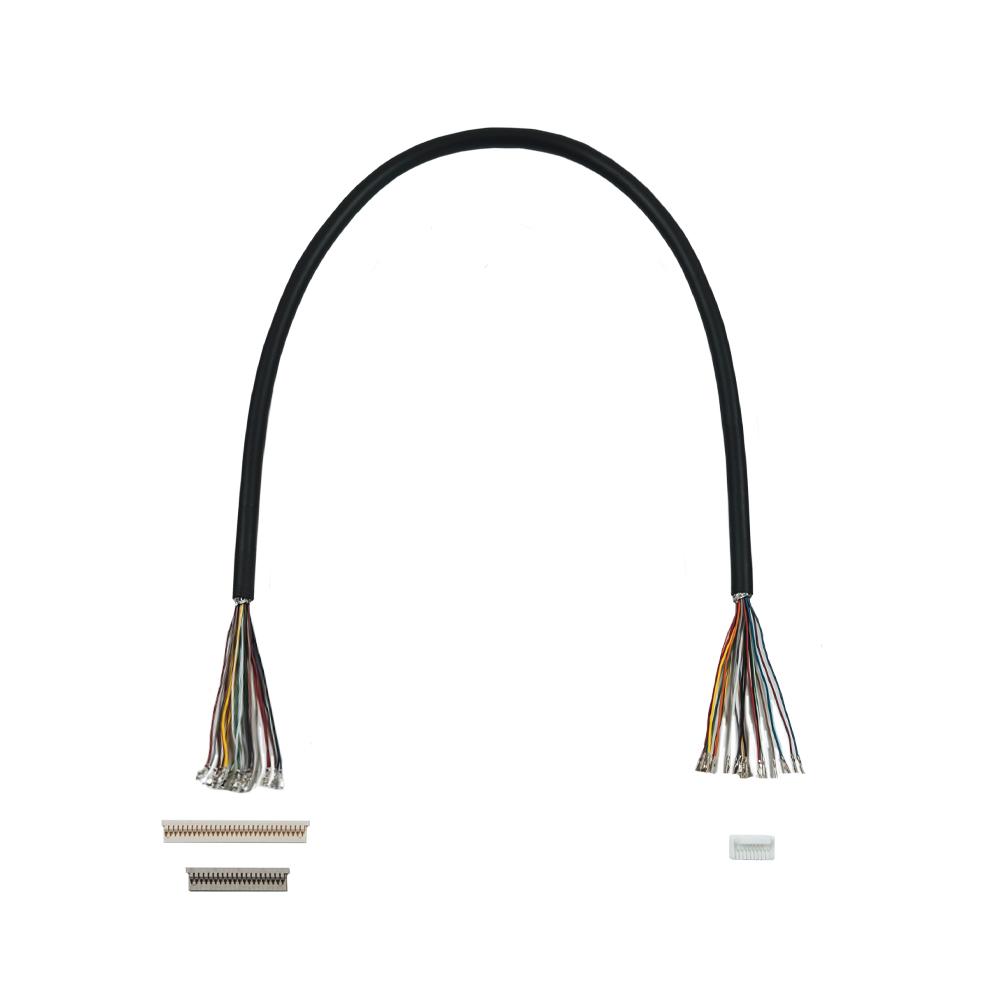

Back to overview New ES&S Color Coding in Accordance with International Standards Cable Set for DF50 and DF14 Connectors KAB-SET-DF50-20S-DF14-XXS-0500RK ES&S Color Coding in Accordance with International Standards This modular LVDS display data cable provides a flexible solution for connecting connectors of the HIROSE DF50 series with connectors of the DF14 series. It is particularly suitable for applications requiring customized signal assignments. The cable set is ideally designed for industrial displays, embedded systems, as well as HMI and automation applications. Thanks to its freely configurable assembly, it enables application- specific signal routing. The shielded LVDS round cable ( AWG30) is supplied with both ends unassembled. The corresponding socket housings are included loose, allowing assembly according to your specific cable layout. This ensures precise contact assignment and reliable, low- interference transmission of LVDS signals.

Side 1: HIROSE DF14; unassembled, socket housings included

Side 2: HIROSE DF50; unassembled, socket housings included

Cable type: LVDS round cable, shielded, AWG 30

Length: 500 mm, black

Stripping: 50 mm – 50 mm

UL21445

Included housings: DF50- 20DS- 1C / DF14- 20S / DF14- 30S

Key Benefits : Sample quantities available from stock Individually configurable on both ends Custom lengths available upon request Suitable for LVDS applications The cable set is supplied unassembled on both ends, including matching housings, enabling flexible and customer- specific further processing. We are also happy to provide full cable assembly services or deliver ready- to- install solutions – single- ended or double- ended – according to your schematic or cable plan.
