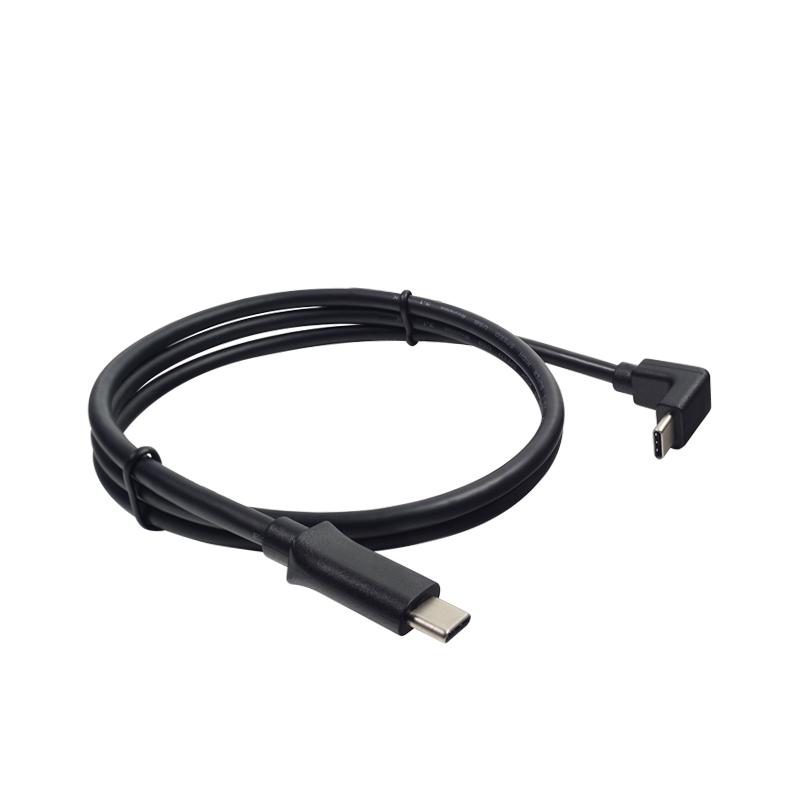

Technical drawing KAB-USB3.1-CM-USB3.1-CM-90U-0900RK Technical drawing Here we offer you an USB 3.1 connection cable - with Type C plug to a 90° upward angled type C plug. Standard length is 900 mm. We would be happy to assemble further lengths for you. USB 3.1 is the new universal standard of the future and is already supported by several manufacturers. USB 3.1 enables data transfer rates of up to 10 Gbps - this is up to 20x faster than the transfer rates of a USB 2.0 port (480 Mbps). Here is an overview of the maximum data transfer rates of the different USB ports:

Low Speed: USB 1.0 -> 1.5 Mbps

Full Speed USB 1.1 -> 12 Mbps

Hi-Speed: USB 2.0 -> 480 Mbps

SuperSpeed: USB 3.0 -> 5 Gbps

SuperSpeed+: USB 3.1 -> 10 Gbps

side 1: USB 3.1 Type C, male

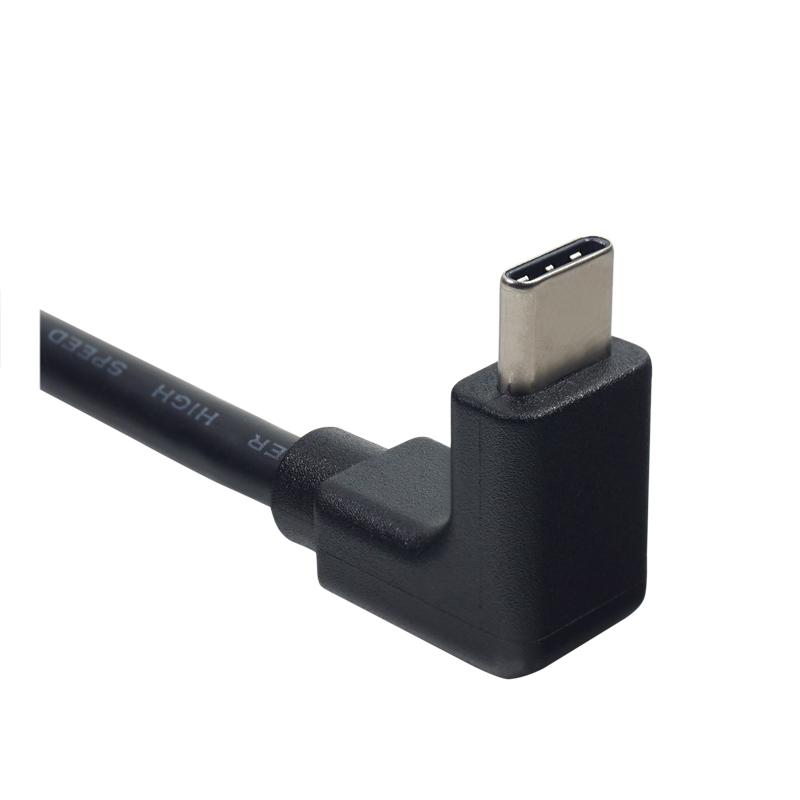

side 2: USB 3.1 Type C, male 90° angled upwards

USB cable: UL2725, AWG32/AWG24, black

OD = 4.8 mm, L = 900 mm MOQ = 500 pcs.

weight: 39.1 g

Key Features

• significantly faster and safer connection speed
• compatible with Thunderbolt™ 3
• can be plugged in on both sides and is thus more variable in application
