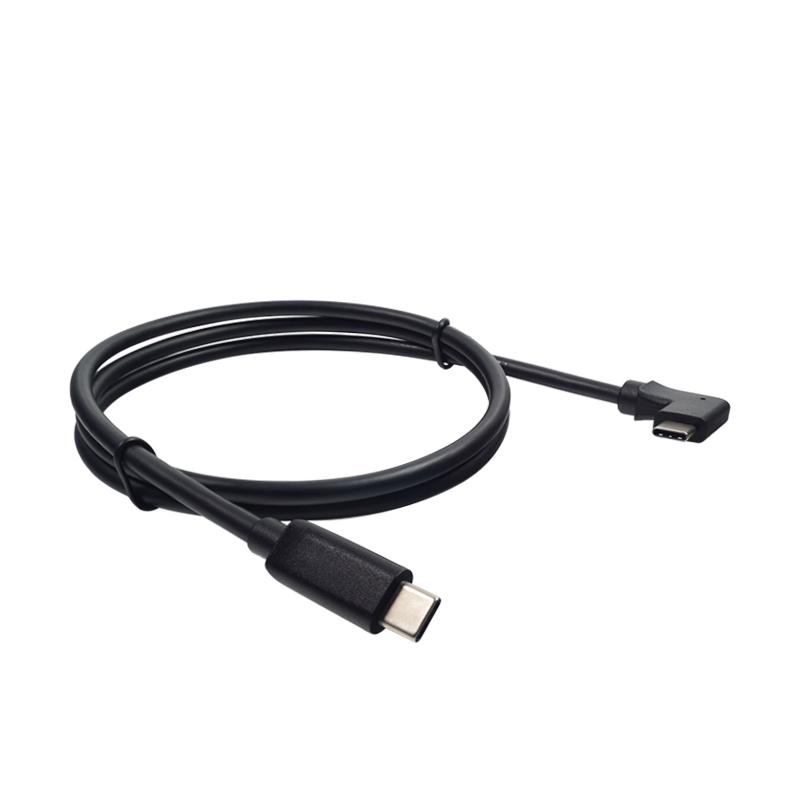

Technical drawing KAB-USB3.1-CM-USB3.1-CM-90-0900RK Technical drawing Here we offer you our USB 3.1 connection cable - with a Type C plug to a 90° angled Type C plug. USB 3.1 is the new universal standard and is already supported by many manufacturers. USB 3.1 enables data transfer rates of up to 10 Gbps - this is up to 20x faster than the transfer rates of a USB 2.0 port (480 Mbps). Here is an overview of the maximum data transfer rates of the different USB ports:

Low Speed: USB 1.0 -> 1.5 Mbps

Full Speed USB 1.1 -> 12 Mbps

Hi-Speed: USB 2.0 -> 480 Mbps

SuperSpeed: USB 3.0 -> 5 Gbps

SuperSpeed+: USB 3.1 -> 10 Gbps

side 1: USB 3.1 Type C, male

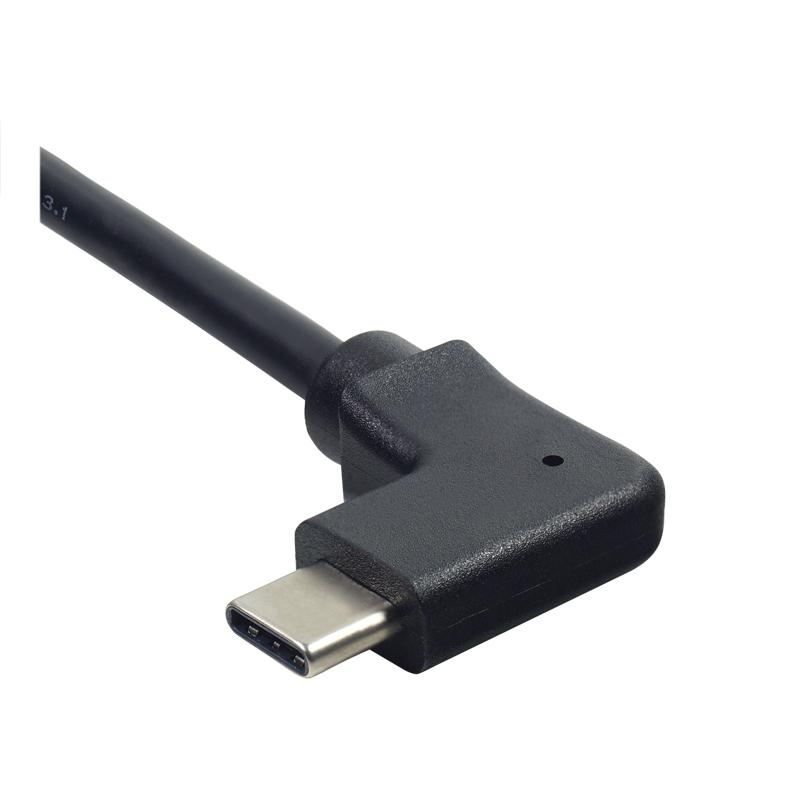

side 2: USB 3.1 Type C, male 90° side angled

USB cable: UL 2725, AWG32/AWG24, black

OD = 4.8 mm, L = 900 mm MOQ = 500 pcs.

weight: 39.2 g

Key Features

• significantly faster and safer connection speed
• compatible with Thunderbolt™ 3
• can be plugged in on both sides and is thus more variable in application
• The standard length of these cables is 900 mm. We are happy to assemble further lengths for you. Samples are available from stock.
