KAB-USB-MICRO-B-F-USB-MICRO-B-M-0500SW

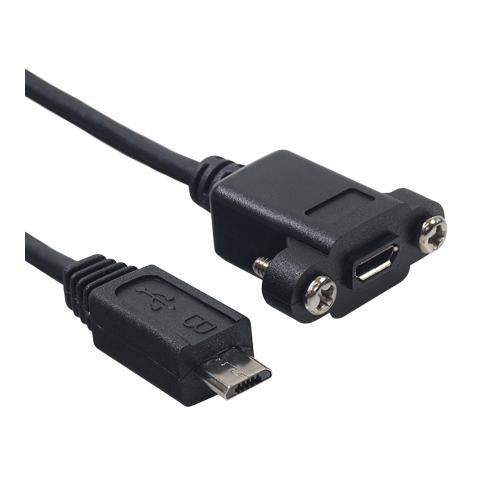

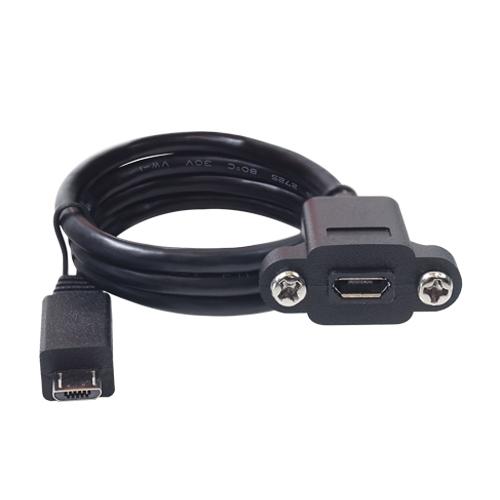

Technical drawing We offer you a micro USB extension (type B, female), with flange for panel mounting by an UNC4/40 screw thread – the distance between the screw connection is 20 mm.

This USB cable is available in the standard 500 mm length, customized lengths are available on request any time (MOQ: 500 pieces).

side 1: micro USB type B, female with flange

side 2: micro USB type B, male

UNC4/40 screw

gap between screw: 20 mm

cable: 4pin USB cable, black

round cable AWG28/28 L = 500 mm (inline)

diameter: Ø 3,5 mm

UL2725

weight: 21 g
