Technical drawing

KAB-HDMI-M-HDMI-F-PANEL-06000RK

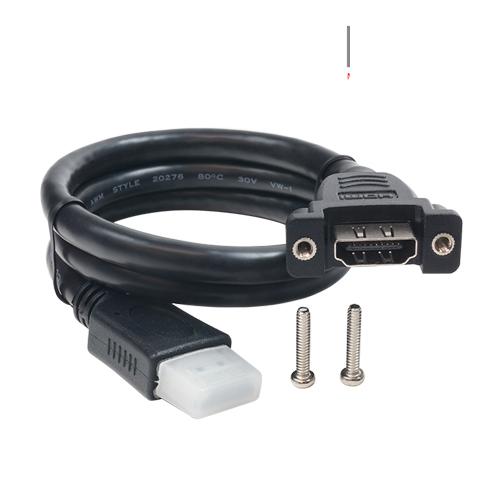

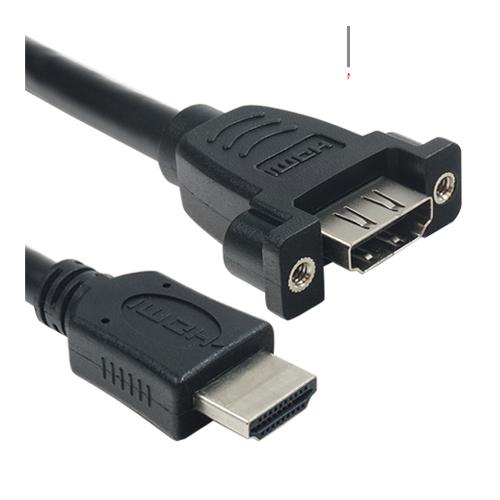

Technical drawing 3ft Standard HDMI® cable for panel mounting.

side 1: HDMI male, 19 pin connector

side 2: HDMI female, 19 pin connector with flange, srew-in, flange = 25 mm

round cable AWG28, black, PVC - Polyvinyl Chloride, DMG rated, length = 600 mm

thread length of the screws: 15 mm

operating temperature: -20 °C to 85 °C

weight: 51.2 g

Provides a well-secured, easy to access HDMI connection on any processor port or control panel. Extend your HDMI® interface and allow you screw mount it to a panel. Panel mount connector for embedded installations.
