KAB-USB-A-M-USB-B-M-2000-LOCK-2

Technical drawing USB type A male connector and a connection cable of 2000 mm length to an USB type B male with locking on either side.

side 1: USB type A male with locking

side 2: USB type B male with locking

USB 2.0 compatible shielded, twiested pair round cable 28+28 AWG 1P+2C+2B, black l = 2000 mm RoHS-compliant UL 2725

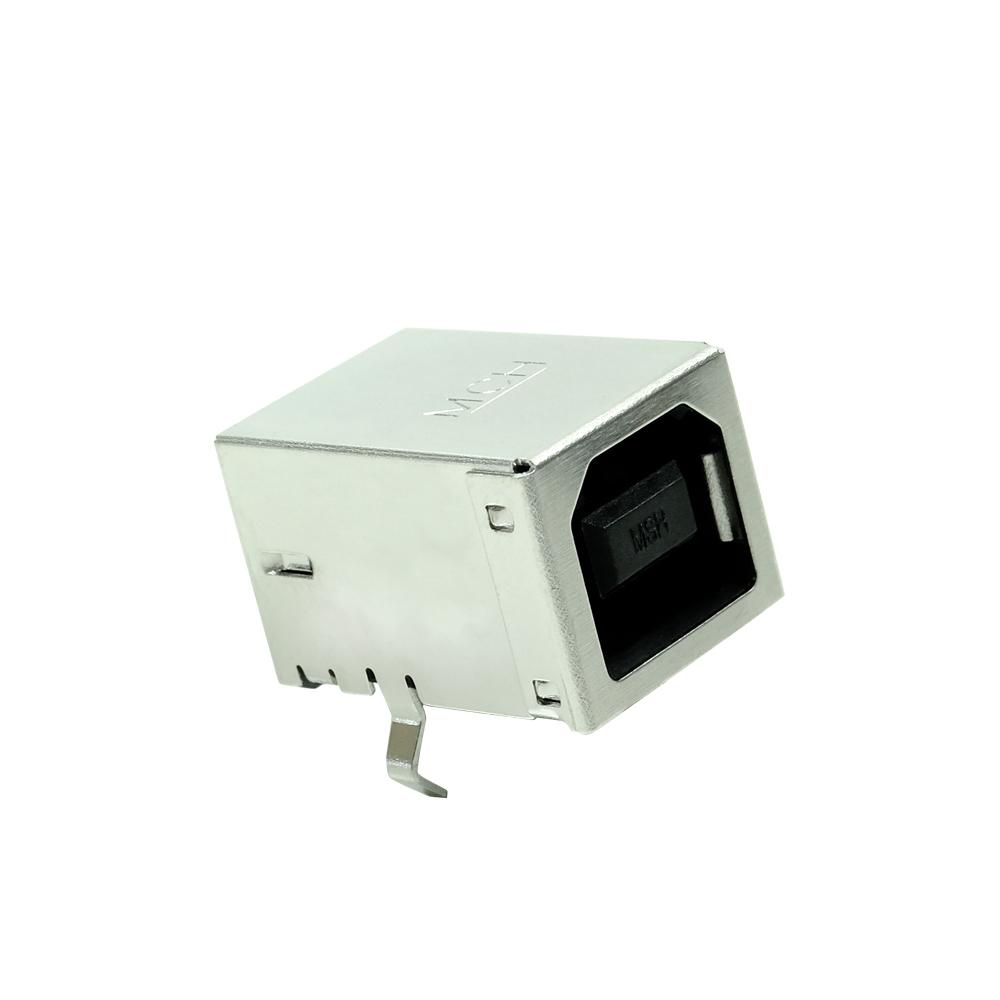

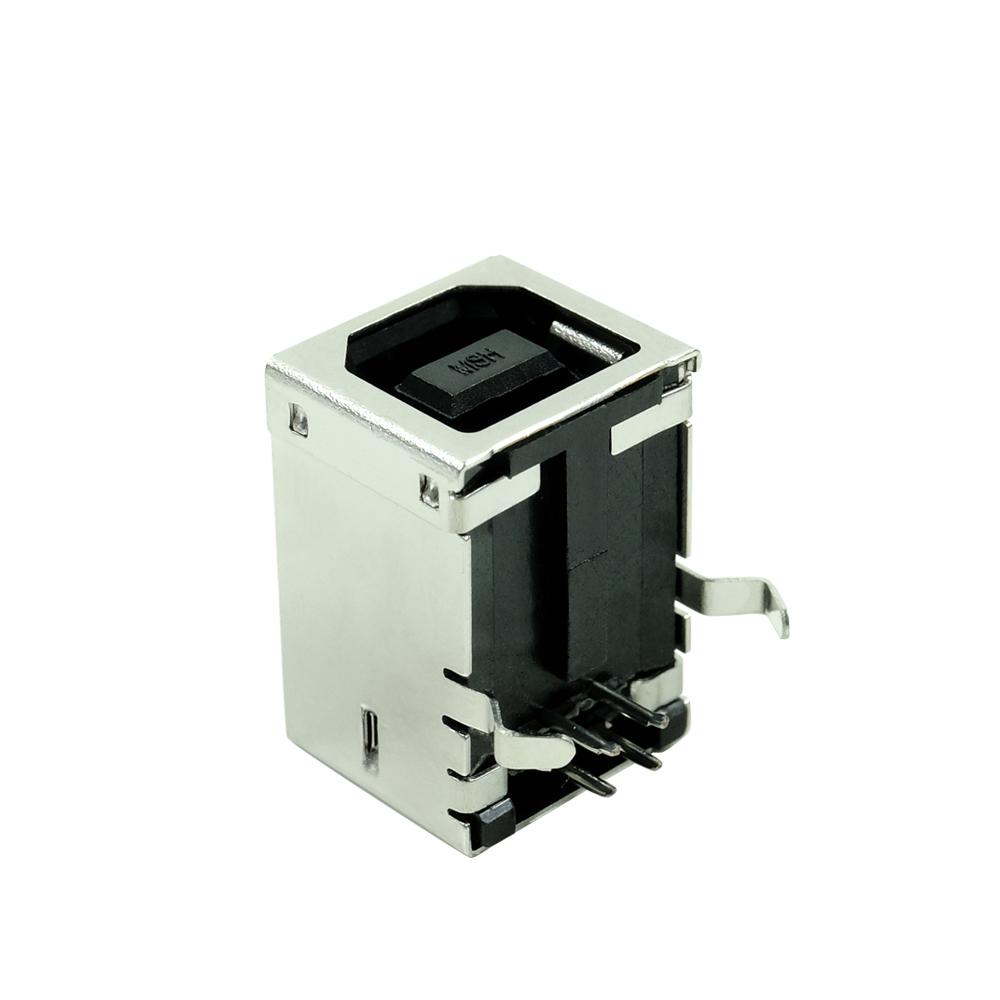

Attention: The USB B plug fits all standard sockets, but some socket manufacturers have a modified design, in which case the USB B plug does not lock! This Molex socket: 67068-8001 is compatible in any case.
