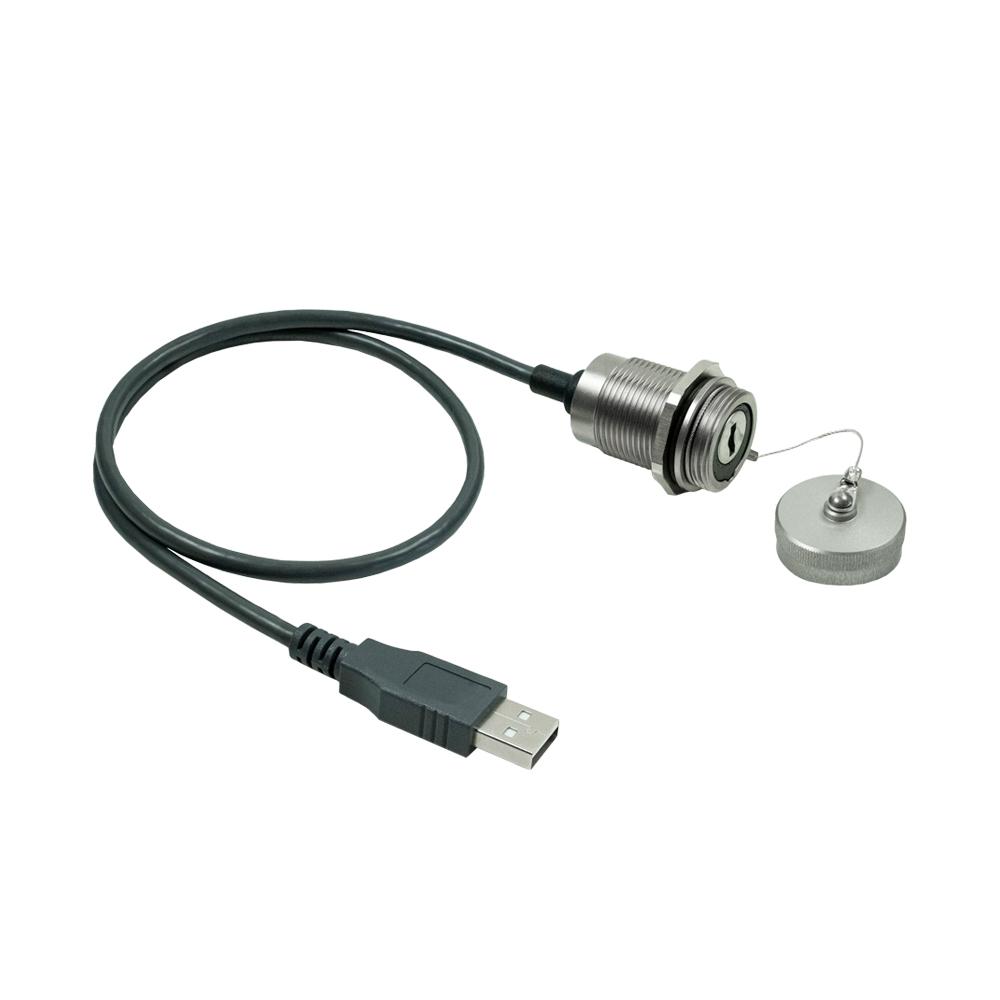

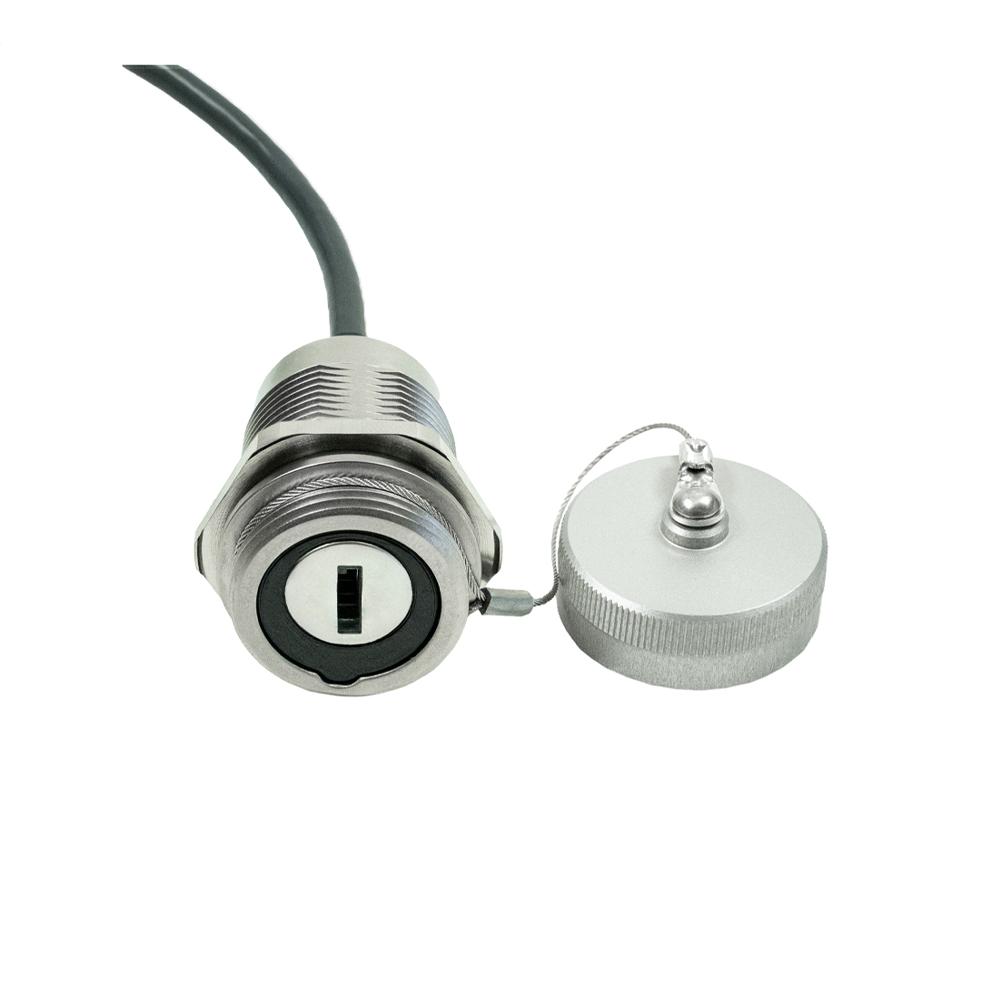

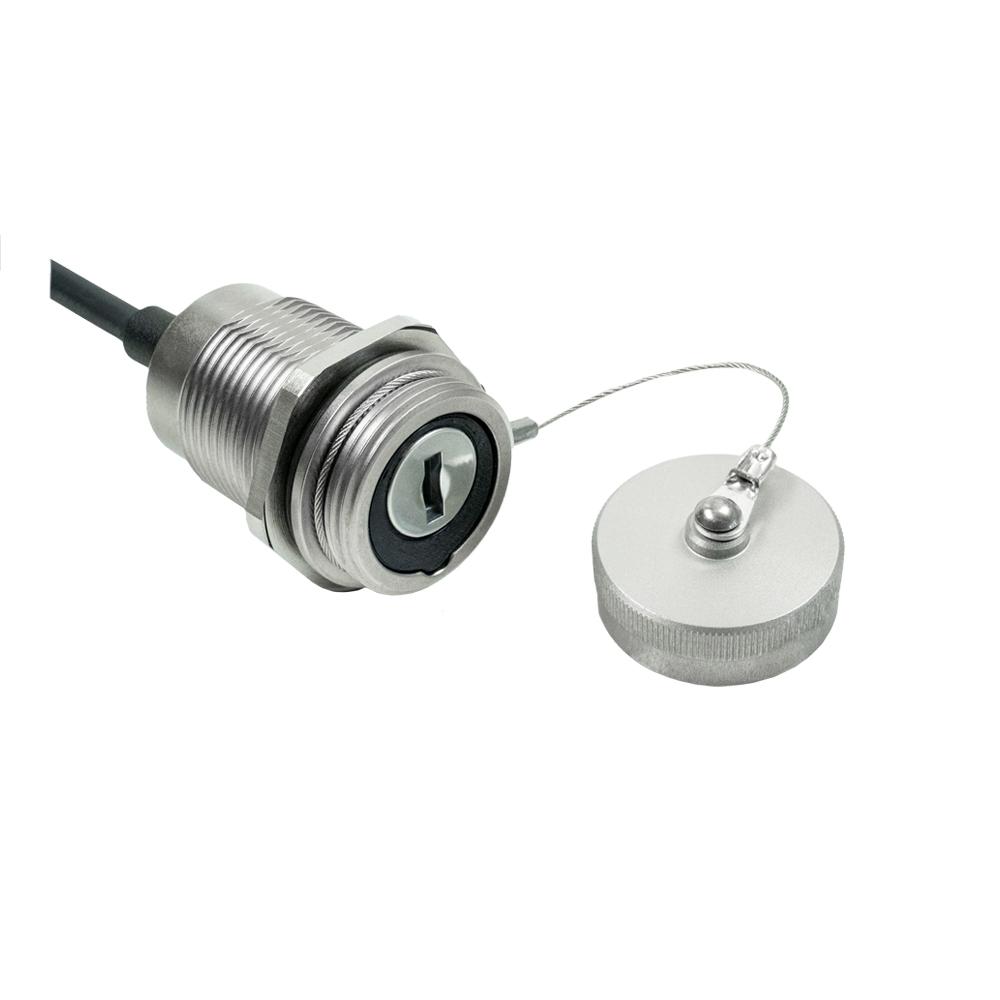

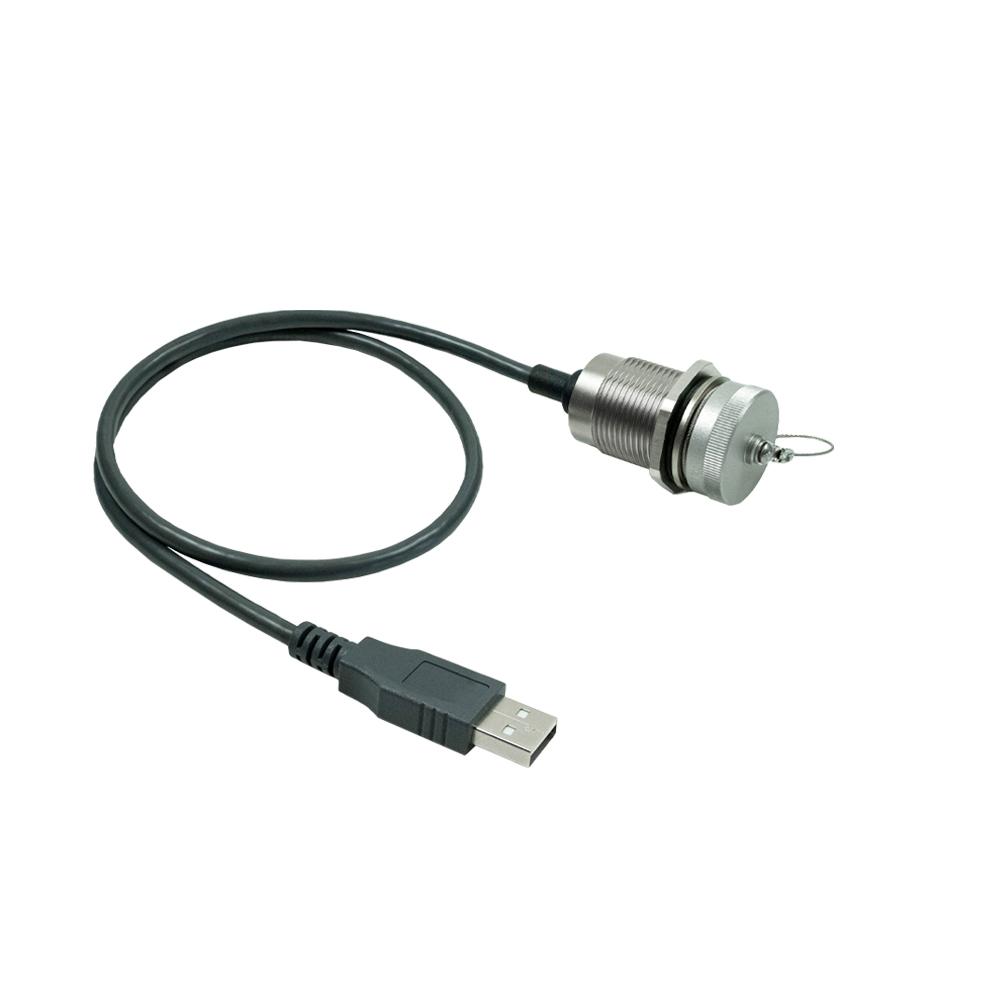

Back to overview EOL New Compact Lockable IP67 USB Socket KAB-IP67-VM-USB-A-F-USB-A-M-0500RK-SECURE-M25-REV-3 Are you looking for a compact, closable IP67 USB solution? This model is the ideal choice – featuring a slimmer design and an expanded range of applications. It combines an IP67-certified USB 2.0 Type-A female connector with a USB 2.0 Type-A male plug. The female connector can be securely locked and is only usable after unlocking it with the key. This ensures reliable access control and prevents unauthorized use. Its compact construction requires only minimal installation depth, making it perfect for devices with limited space, flat control panels, or installations with tight mounting conditions. The robust stainless-steel connector is equipped with a screw-on protective cap and a high-quality rubber seal, keeping the connection dustproof and waterproof in accordance with IP67. A self-locking nut ensures a secure fit for enclosure thicknesses of up to 8 mm. The lockable design can also serve as an access barrier for externally accessible data interfaces and support machine manufacturers in implementing the requirements of the EU Machinery Regulation (EU) 2023/1230.

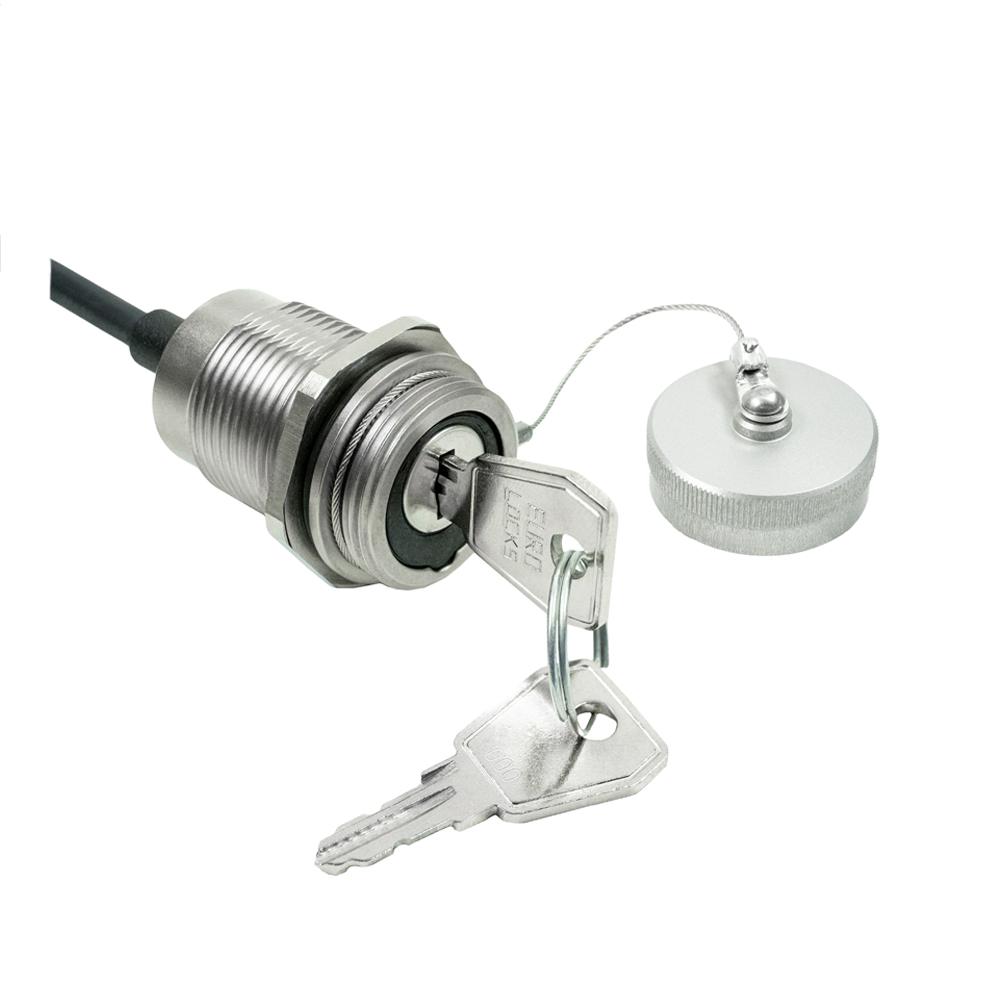

Side 1: IP67 USB 2.0 type A, female, lockable, incl. one key and cap

Side 2: USB 2.0 type A, male

USB cable: AWG28x1-AWG24x2C+AL+D+B, grey

UL2725 (80 °C 30 V)

Weight:

Further IP67 solutions are available and can be customised at any time. Feel free to speak to us about the specific requirements of your application, or find out more about general IP protection classes .
