KAB-IP67-VM-USB3.0-A-F-A-M-DUAL-0500RK-M25 Here we offer you our new IP67 dual-port socket with a double female USB 3.0 Type A plug. The IP67 socket meets the IP67 protection class, it is dust- and waterproof with its screwable cap and rubber seal. In addition, the cap is attached to the socket with an internal safety wire and can therefore not get lost. A self-locking nut is included in the scope of delivery. The socket can be attached with a housing thickness of up to 8 mm. The 500 mm long SuperSpeed premium quality cable offers a double USB 3.0 connection option with two Type A male connectors. SuperSpeed USB 3.0 enables data transfer rates of up to 5 Gbps.

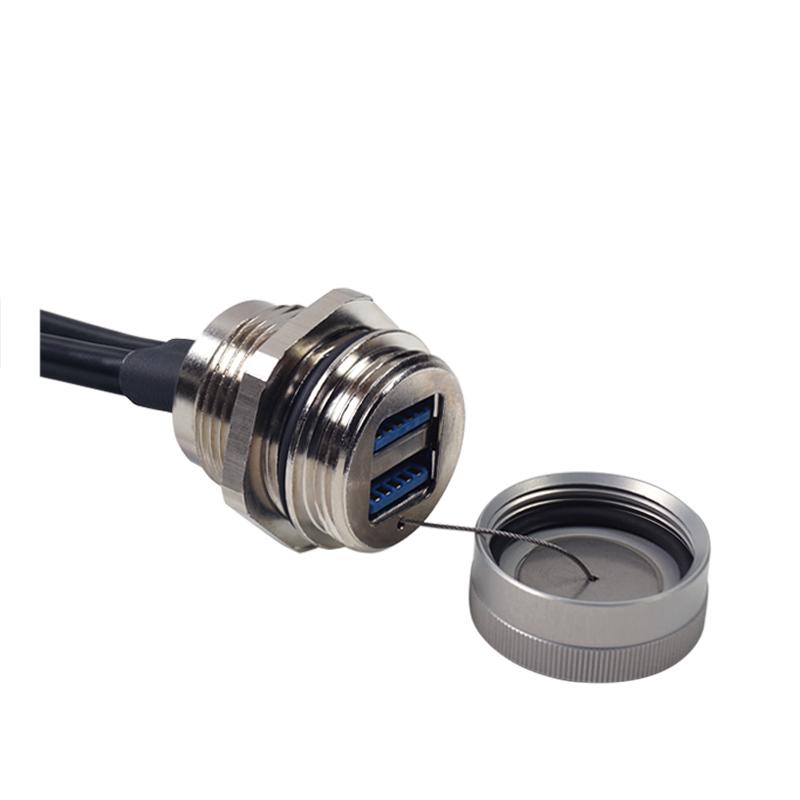

side 1: IP67 dual-port socket; 2x USB 3.0 Type A connectors, female; incl. screwable cap with safety wire, nut and seal

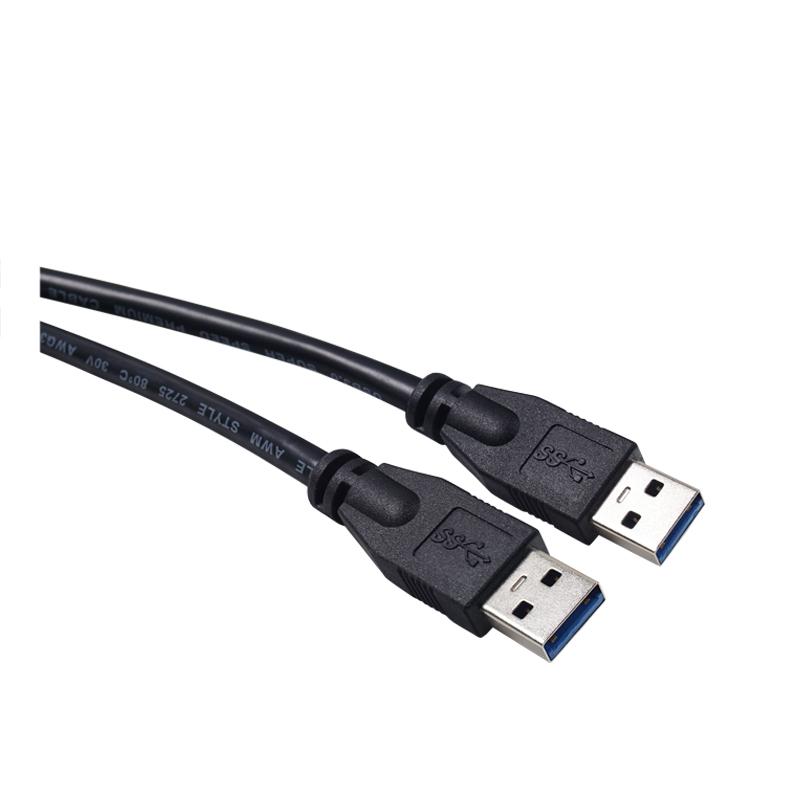

side 2.1: USB 3.0 Type A, male

side 2.2: USB 3.0 Type A, male

round cable USB 3.0: UL2725 (80 °C, 30 V), AWG30/AWG20, black, L = 150 mm

material: nickel-plated brass

thread: M25 x 1.5 mm

The special cap is connected to the socket by a safety wire and can’t get lost. The self-locking nut is suitable for a front panel thickness of up to 8 mm.

weight: 100 g

IP67 accessories can be found here .
