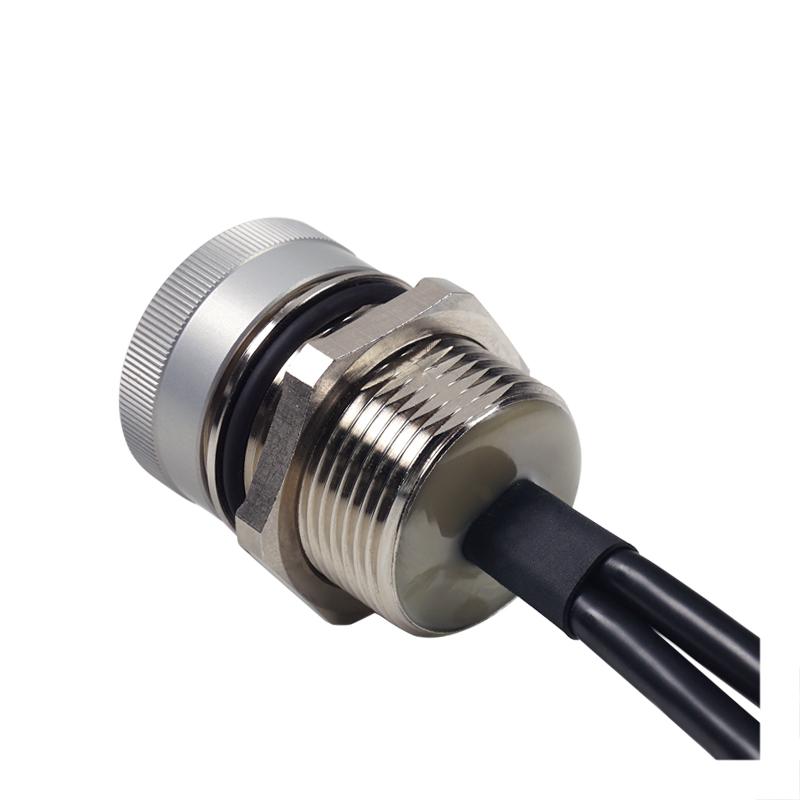

Technical drawing IP67 twin port socket with USB 3.0 type A and USB 3.1 type C connector KAB-IP67-VM-USB-A-USB-C-TWIN-UNV-0500RK-M25 Technical drawing We would like to introduce our new USB 3.0 or rather 3.1 IP67 twin port cable. The IP67 socket offers you connection options for a USB 3.0 Type A plug and a USB 3.1 Type C plug at the same time. The socket with its screwable cap and internal rubber seal is dust- and waterproof and meets the IP67 protection class. In addition, the cap is attached to the socket with an internal safety wire and can’t get lost. A self-locking nut is included in the scope of delivery and provides the socket with the necessary support for a housing thickness of up to 8 mm. The two 500 mm long SuperSpeed connection cables offer connection options with a USB 3.0 Type A plug and with a USB 3.1 Type C plug. USB 3.1 or SuperSpeed+ enables data transfer rates of up to 10 Gbps. Your employees, service technicians and private and business customers benefit from fast data transmission rate.

side 1: IP67 twin/dual port socket; 1x USB 3.0 Type A female connector; 1x USB 3.1 Type C female connector; incl. screwable cap with safety wire, nut and seal

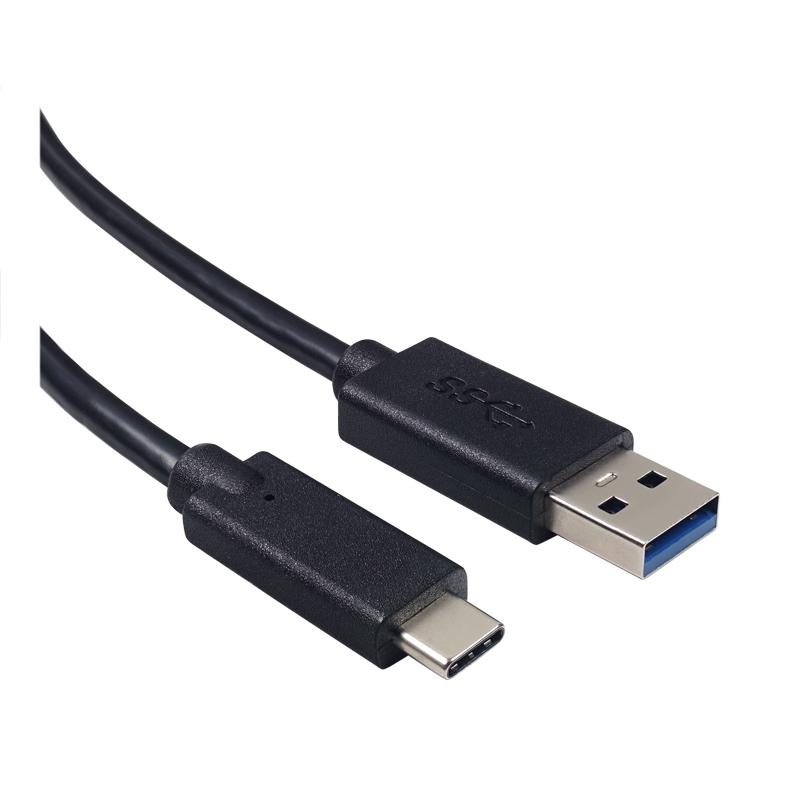

side 2.1: USB 3.0 Type A, male

side 2.2: USB 3.1 Type C, male

round cable USB 3.0: UL2725 (80 °C, 30 V), AD = ca. 4.5 mm, black, L = 500 mm

round cable USB 3.1: UL2725 (80 °C, 30 V), AD = approx. 4.5 mm, black, L = 500 mm

total length = 580 mm

material: nickel-plated brass

thread: M25 x 1.5 mm

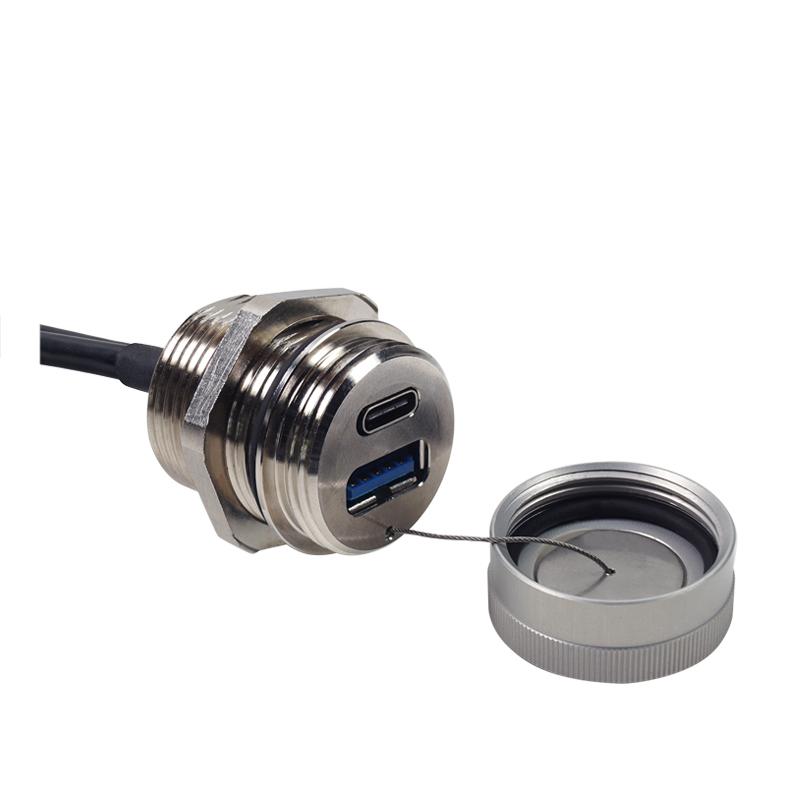

The special cap is connected to the socket by a safety wire and can’t get lost. The self-locking nut is suitable for a front panel thickness of up to 8 mm.

weight: 68 g
