Technical drawing

KAB-DP-M-DP-F-FLANSCH-0400RK

Technical drawing DisplayPort* cable for connecting panels and notebooks.

side 1: DisplayPort*, male, gold plated, connector with lock

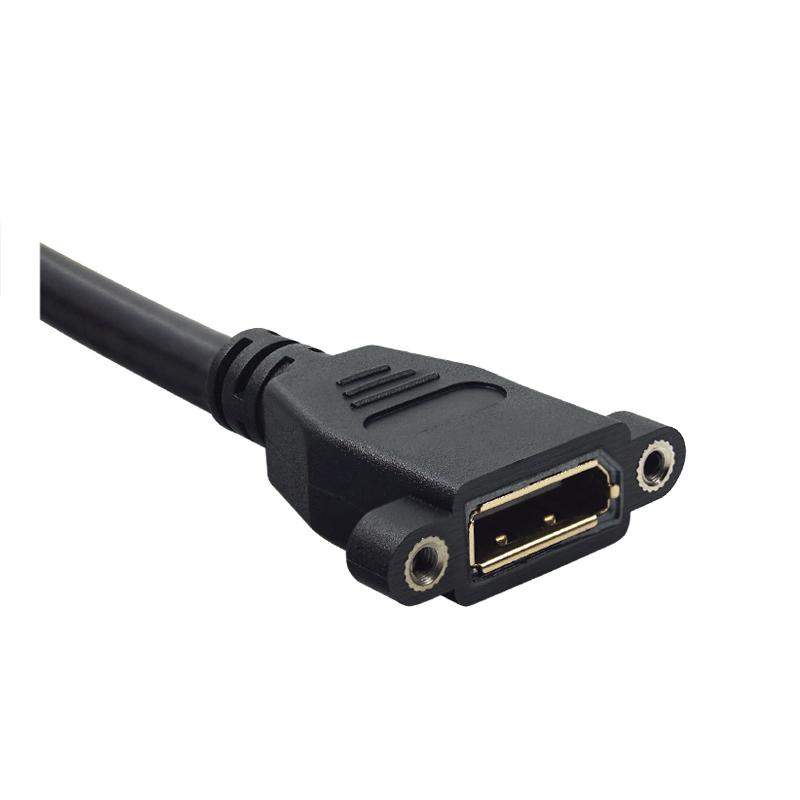

side 2: DisplayPort*, femal, gold plated, flange for panel mounting

PVC mold with M3 through boring cable, AWG30, black, outer diameter 6.00 mm L = 400 mm (inside)

UL20276

operating temperature: -20 °C to 85 °C

weight: 49.3 g

This cable is also with 200 mm length available. KAB-DP-M-DP-F-FLANSCH-0200RK *DisplayPort is a trademark of Video Electronics Standards Association VESA® Embedded DisplayPort Standard (eDP™)
