KAB-501330-0600-0500LI

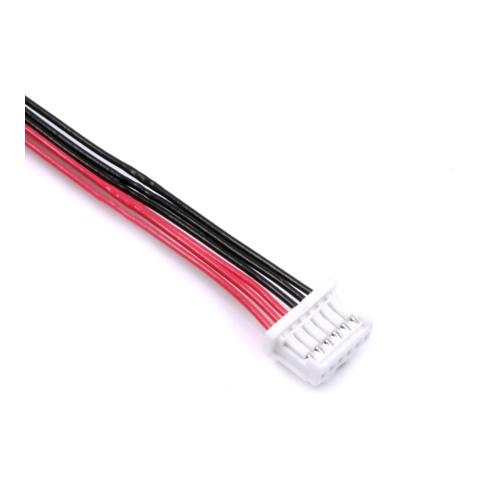

This wiring harness allows a quick and easy connection between a LED-display inverter with a connector of the MOLEX 501330-0600 series and any other graphic board connector. We supply 6 strands with assembled socket housing. The second side of the cable is unprocessed. This cable is particularly suited for samples and small series.

side 1:501330-0600 with crimp terminals 501334-0000

side 2: unprocessed

color strands AWG28, UL1571 L= 500 mm

UL1571

operating temperature: -20 °C to 85 °C

weight: 4.6 g

Key Features

• available ex stock
• customer specific assembly
• deliverable in different lengths
• This cable fits for the following headers:
• MOLEX 501331-0607
• MOLEX 501568-0607
• It supports the following displays/inverter:
• LQ15X1LG82, H12406152 (ERG Inverter), GT-525 (GPS Modul), LQ70Y3LW01, LQ190E1LW52, LQ121S1LG62
