series ACES 91209 Technical drawing

KAB-ACES-91209-01011-0500LI

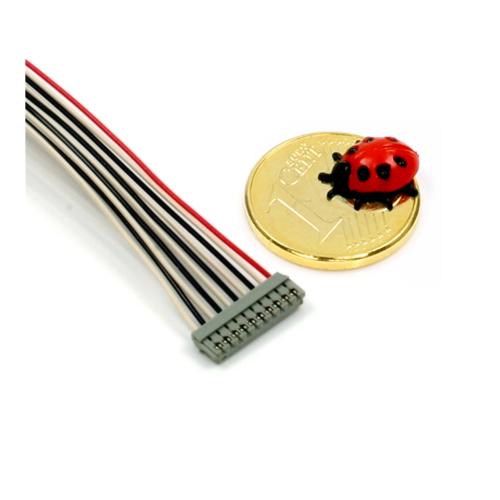

series ACES 91209 Technical drawing This wiring harness allows a quick and easy connection between a display LED-Backlight with a connector of the ACES 91208/91209 series and any other connector. We supply a connector (10-pin) 91209-01011 with 10 strands and an assembled socket housing on both sides. This cable is particularly suited for samples and small series.

side 1: 10 pin ACES 91209-01011, pitch = 1.00 mm, tin plated

side 2: unprocessed

strands UL1571, AWG32 wire OD from 0,52 mm to 0,56 mm length = 500 mm Pin 1 - red strands

operating temperature: -20 °C to 85 °C

weight: 5 g

Advantage: available from stock customer specific assembly available in various lengths This cable fits for the following headers: 91209-01011, 91208-01001 The following connector is usually available from stock:

STE-ACES-91208-01001-H01

This cable supports the following displays: G104X1-L04, G121X1-L03, G104X1-L03, FG100451DSSWNG01, TX31D45VM, AM-1024768GTMQW-T00H, OT104EXWDLV-H1, AM-1024768ZTZQW-00H, VGG107603-0TMLWD, VGG107603-0TMLWC, G121XCE-L02, G104XCE-LH1
