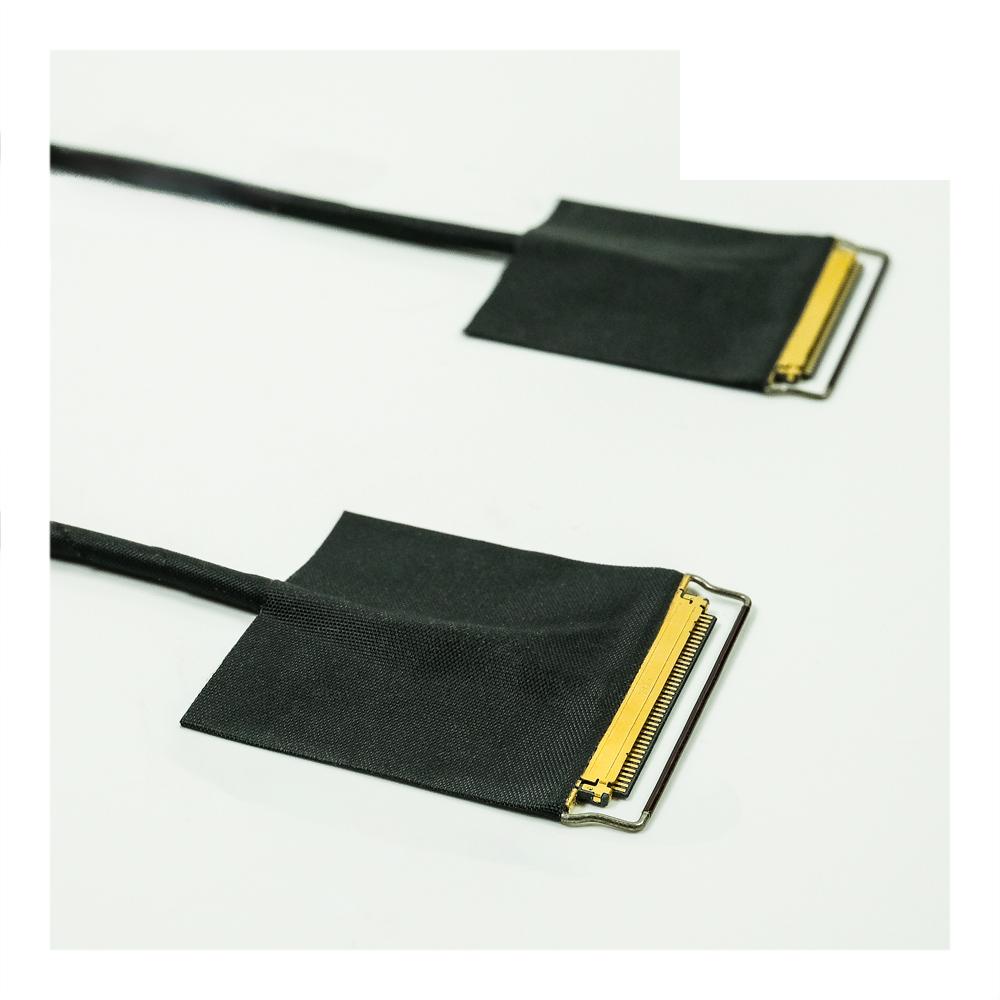

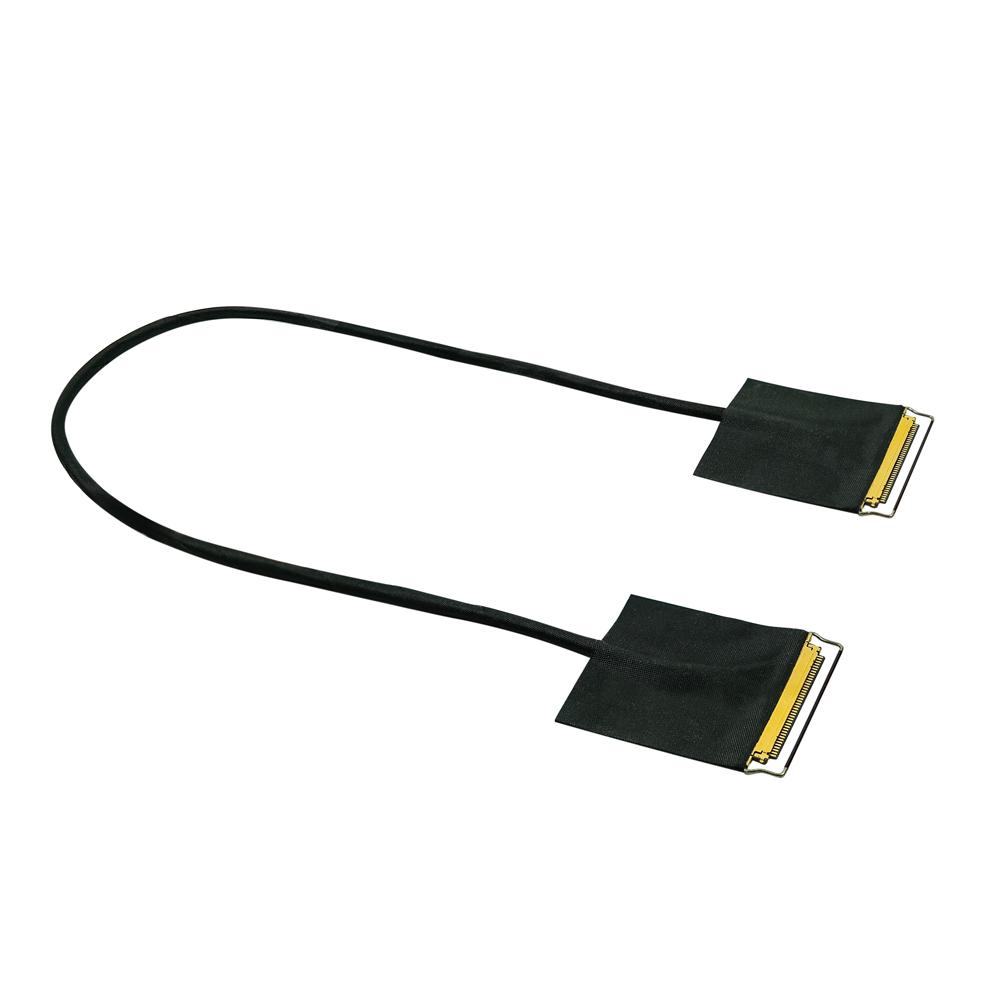

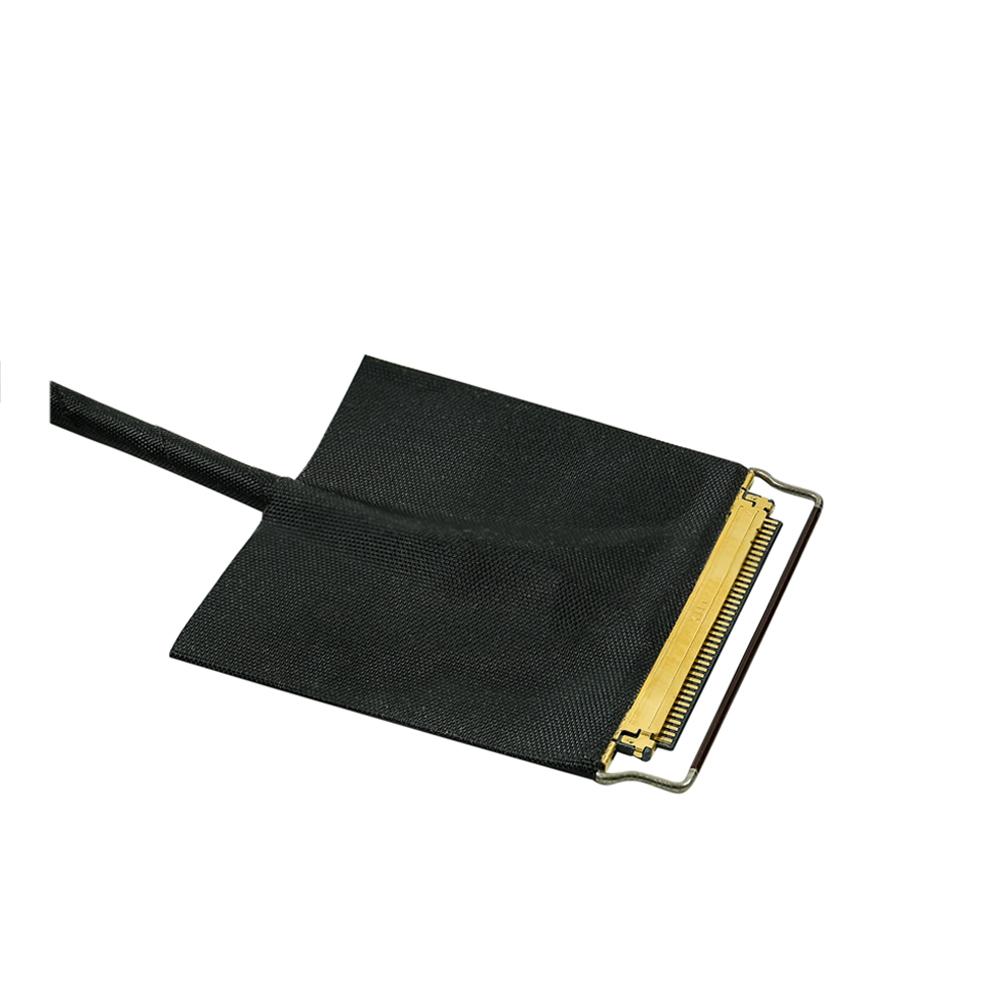

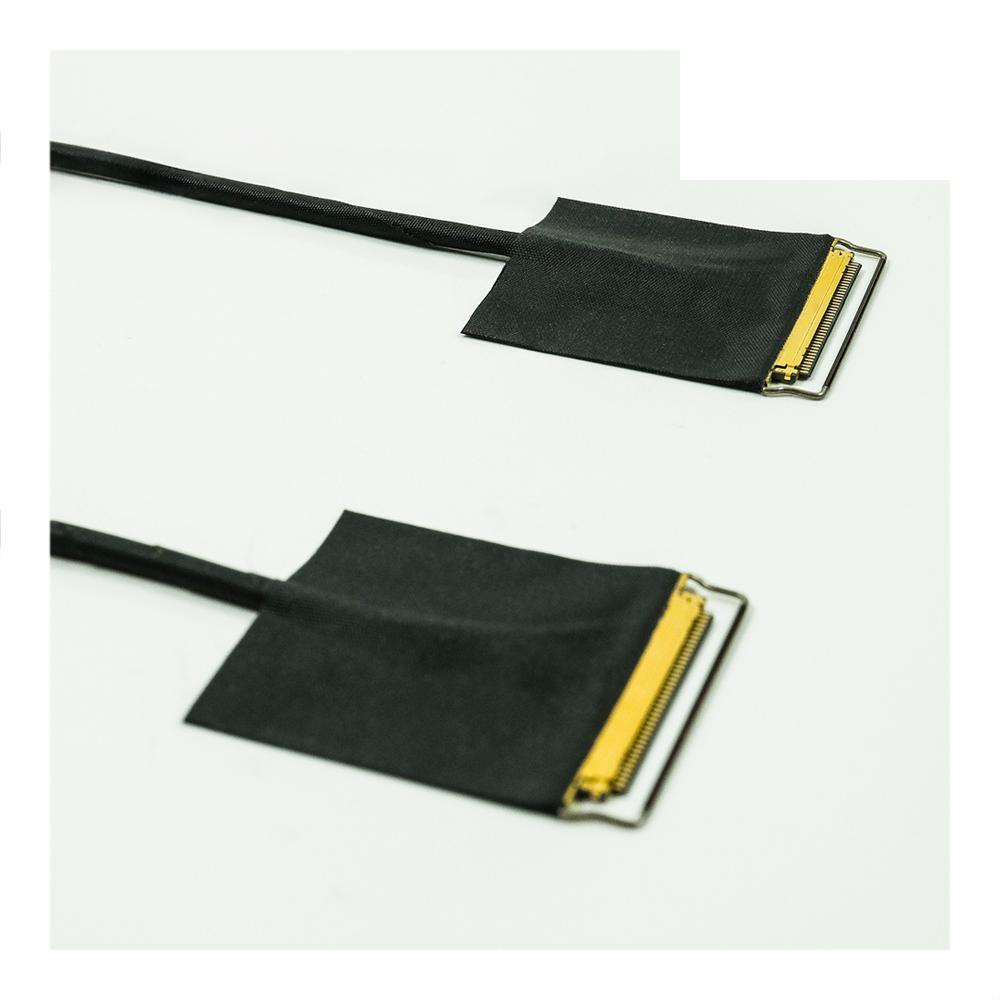

Back to overview New I-PEX Cable for LCD NL192108BC18-06F (TIANMA Displays) KAB-I-PEX-20453-040T-0270-1:1-ROUND-PB-19 Are you looking for a high-quality, custom-fit cable for your TIANMA LCD module NL192108BC18-06F ? Our I-PEX cable offers the perfect solution. Designed with exceptional precision and high compatibility, it ensures a reliable connection and optimal performance. This cable is ideal for industrial displays, medical devices, and other professional applications requiring a highly specific connection solution.

Side 1: I-PEX 20453-040T, R = 0.50 mm with pull bar

Side 2: I-PEX 20453-040T, R = 0.50 mm with pull bar

Round cable: AWG40, taped, coaxial conductors

UL standard: UL1354

Length: 270 mm

Key Features: 1:1 connection: Specifically developed for the TIANMA display NL192108BC18-06F.

Pin configuration: Only 19 out of the 40 possible pins are actively connected, ensuring the unique configuration required for this LCD module.

Ultra-thin design: The counterpart on the PCB has a maximum height of just 1.00 mm, making it ideal for space-constrained applications.

Effective shielding: The integrated metal frame ensures reliable electromagnetic shielding.

Mechanical locking: The cable features robust locking, providing additional security against vibrations and shocks – perfect for use in demanding environments.

High Compatibility with CN1 Connectors This cable is specifically designed for the CN1 socket of the LCD module. The CN1 socket uses connector type 20455-040E (IPEX) , ensuring a seamless connection. Adaptable Connector Types:

Plug Set: 20453-240T-11 (IPEX, Plug Set)

Housing: 20454-240T (IPEX, Housing) or equivalent alternatives

Matching displays : P0840VGF1MA00, P1010WXF1MB10
