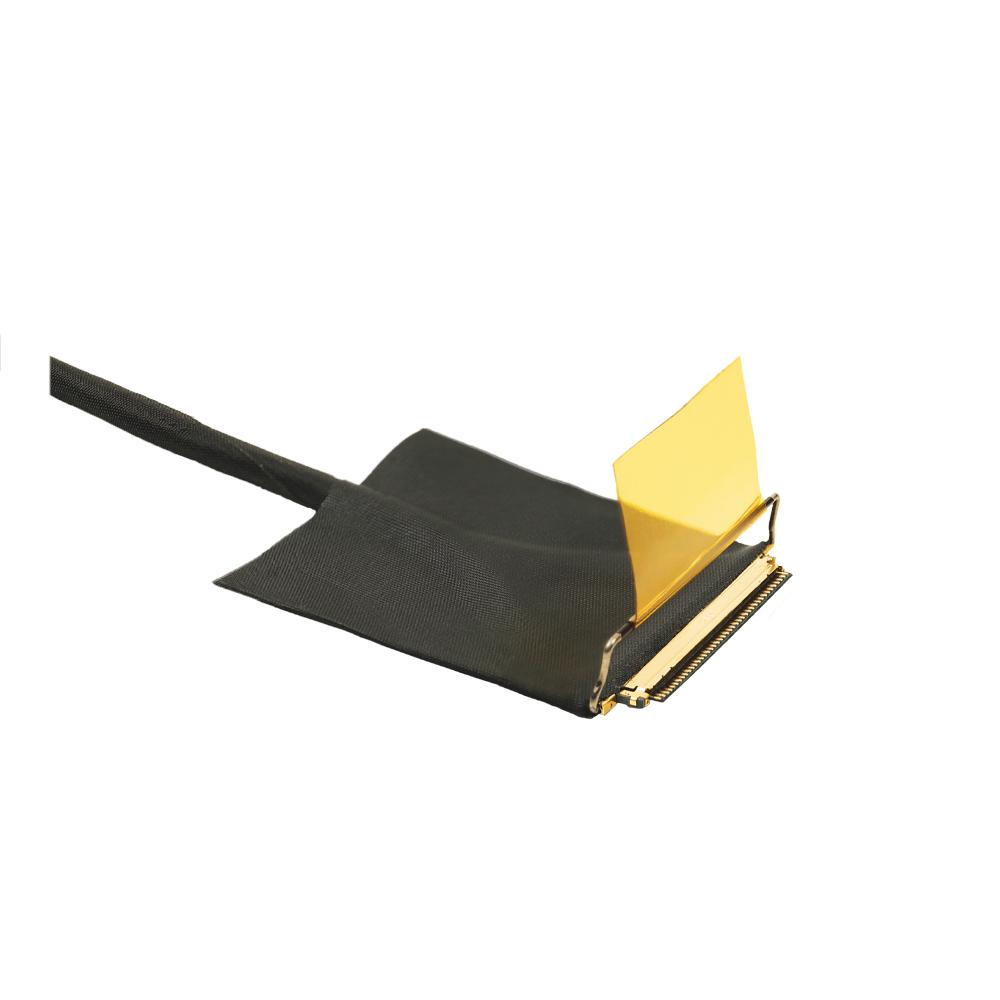

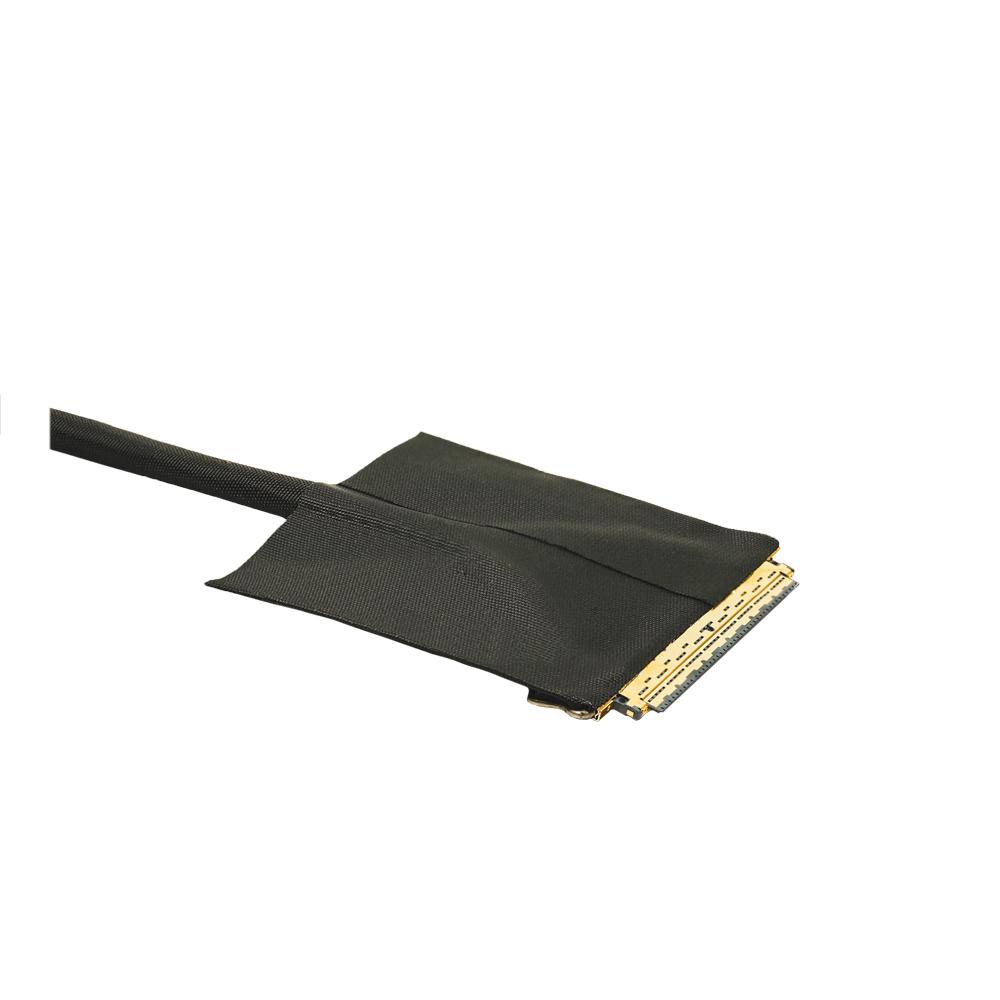

Back to overview New I-PEX Cable for CABLINE®-VS Series | 40-pin, 0.50 mm pitch, with pull bar KAB-I-PEX-20453-040T-0200-1:40-ROUND-PB This high-quality I-PEX cable is compatible with the 20455 series and has been specially developed for high-speed LVDS applications – ideal for driving LCD displays as well as other high-speed data transmissions. The cable is equipped on both ends with 40-pin connectors (20453-040T, 0.50 mm pitch, with pull bar). Thanks to the integrated pull bar locking mechanism, the connection is not only easy to mate but also provides a particularly secure hold – even under vibration or shock conditions.

Side 1: 20453-040T, pitch = 0.50 mm, with pull bar

Side 2: 20453-040T, pitch = 0.50 mm, with pull bar

Cable: Micro-Coax round cable, AWG40, taped

Cable length: 200 mm (other lengths such as 500 mm available on request)

Pin assignment: 1:40

Key Features

• Ultra-flat design – suitable for mating connectors on PCBs with a maximum height of just 1.00 mm
• Reliable shielding through robust metal frame
• Pull bar locking for enhanced mechanical stability against vibration and shock
• Also available as flat cable in various pin counts (20-pin version on request)
• Looking for suitable accessories for your I-PEX CABLINE®-VS connector?
• You’ve come to the right place. Our team will be happy to provide expert advice and prepare a non-binding quotation for you.
• In addition to standard versions, we also offer custom cable assemblies tailored to your specific requirements. On request, we design and manufacture bespoke solutions that are perfectly matched to your application.
• Get in touch with us – we look forward to providing the right solution for your project.

Product Notes

Matching displays : P1010WXF1MB10
