Overview of technical data : Hirose FH 23 series

Flex PCB 45-pin | 0.30 mm pitch

FPC0.30A45-0101-03-03 Overview of technical data : Hirose FH 23 series

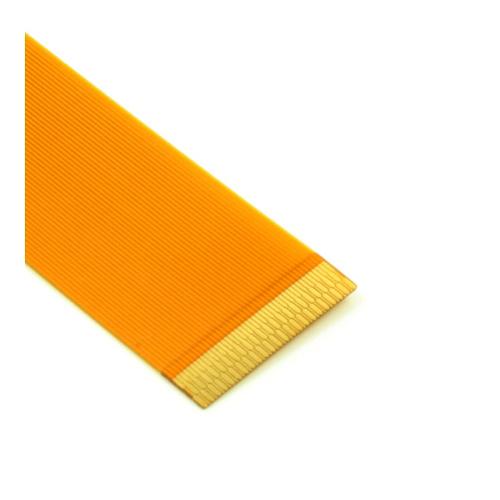

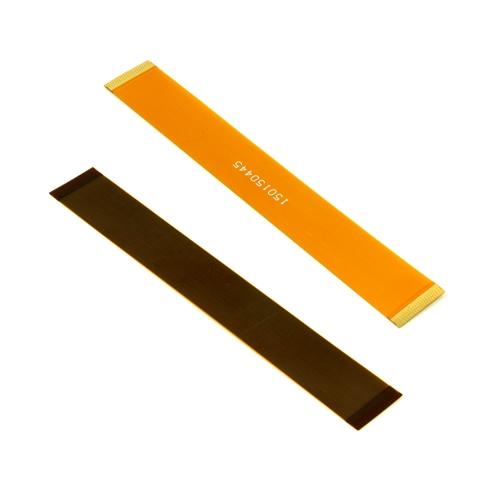

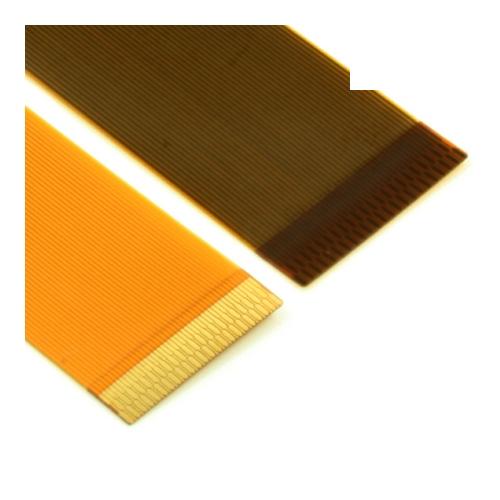

Flexible printed circuit (FPC) 45-pin with grid 0.30 mm

surface: chemical Ni/AU, ENIG

layer: 1

material: polyimide 25 µm, CU: 18 µm

L = 101.6 mm +/-0.5 mm thickness of PCB tail = 0.20 mm configuration 1:1, 50V, 0.2A from 23 to 51 pins in other lengts available FFC cables fit to conector series: Hirose series: STE-FH23-45S-0.3SHAW(05) JST series:

45FXZT-SM1-GAN-TF

FCI series: 10064555-452120HLF (halogen-free) 10064555-452110ELF (with halogen) I-Pex (Dai-Ichi Seiko Co., Ltd.) MINIFRX3-BFN - 20527-045E MINIFRX3-BFN LK - 20584-045E

Suitable for LCD displays: LD101WX1-SL01, LSL101AL01-S01
