Overview of technical data : Hirose FH 23 series

Flex PCB 39-pin | 0.30 mm pitch

FPC0.30A39-0101-03-03 Overview of technical data : Hirose FH 23 series

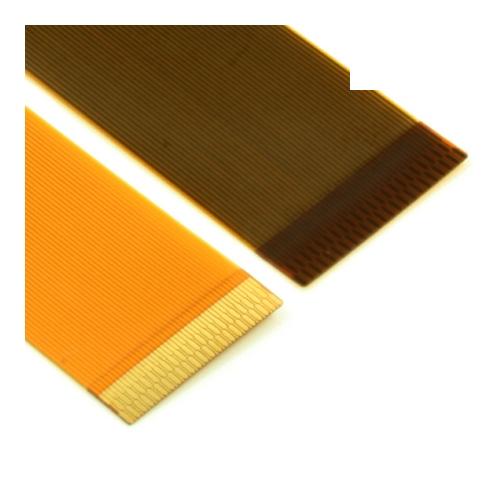

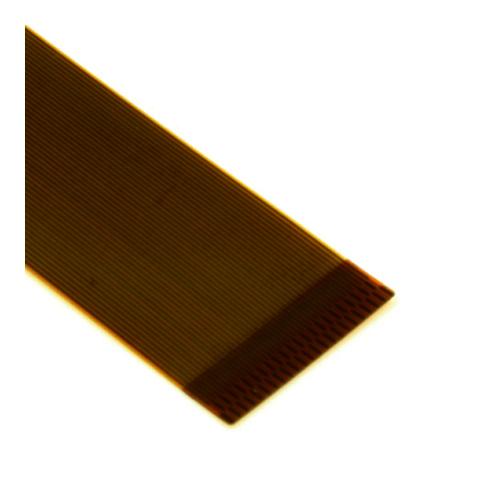

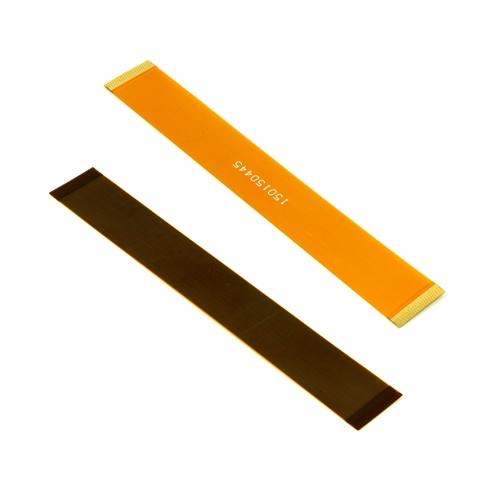

Flexible printed circuit (FPC) 39-pin with grid 0.30 mm

surface: chemical Ni/AU, ENIG

layer: 1

material: polyimide 25 µm, CU: 18 µm

thickness of PCB tail = 0.20 mm configuration 1:1, 50V, 0.2A from 23 to 51 pins available in other lengths FFC cables fit to conector series: Hirose series: STE-FH23-39S-0.3SHAW(05) JST series:

39FXZT-SM1-GAN-TF

FCI series: 10064555-392120HLF (halogen-free) 10064555-392110ELF (with halogen) I-Pex (Dai-Ichi Seiko Co., Ltd.) MINIFRX3-BFN - 20527-039E MINIFRX3-BFN LK - 20584-039E

Fits for LCD: LTTD1280800070-L1, TFT540960-1-E, TFT480640-5-E, COM24H2N62XLC, COM43H4M85ULC, MI0220ET-1
