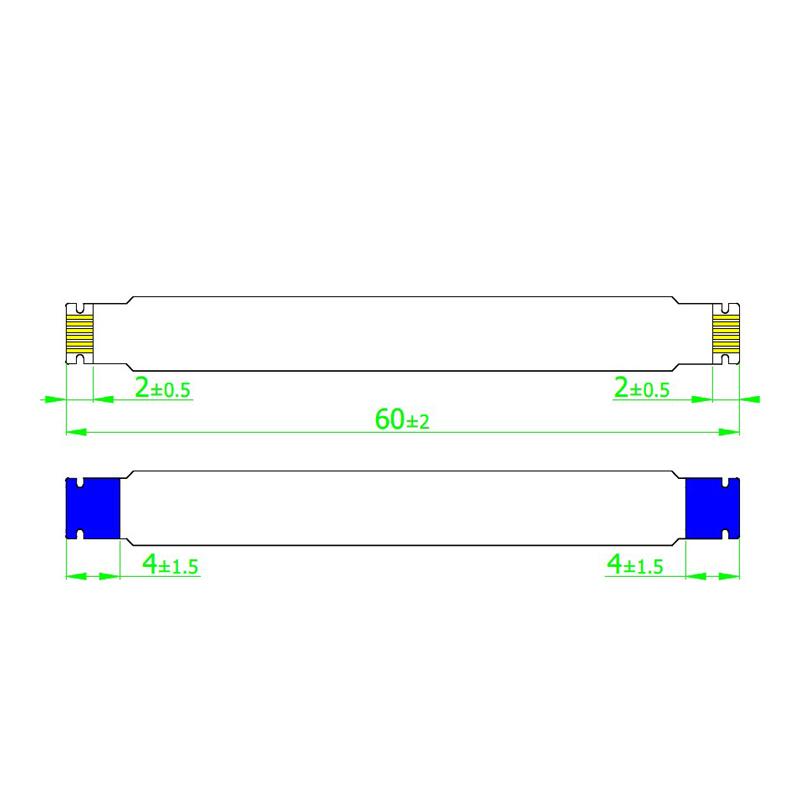

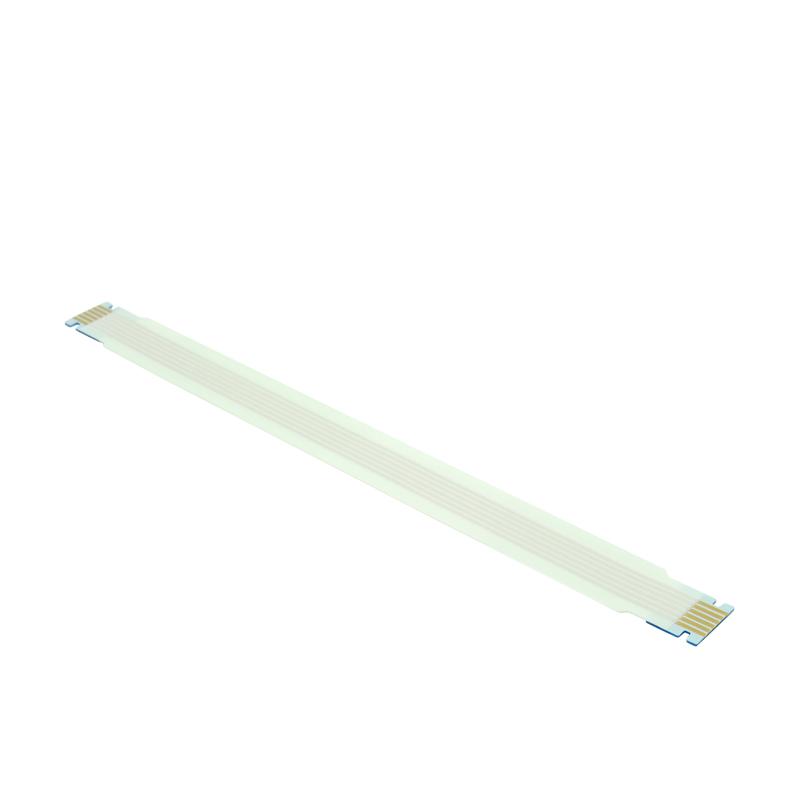

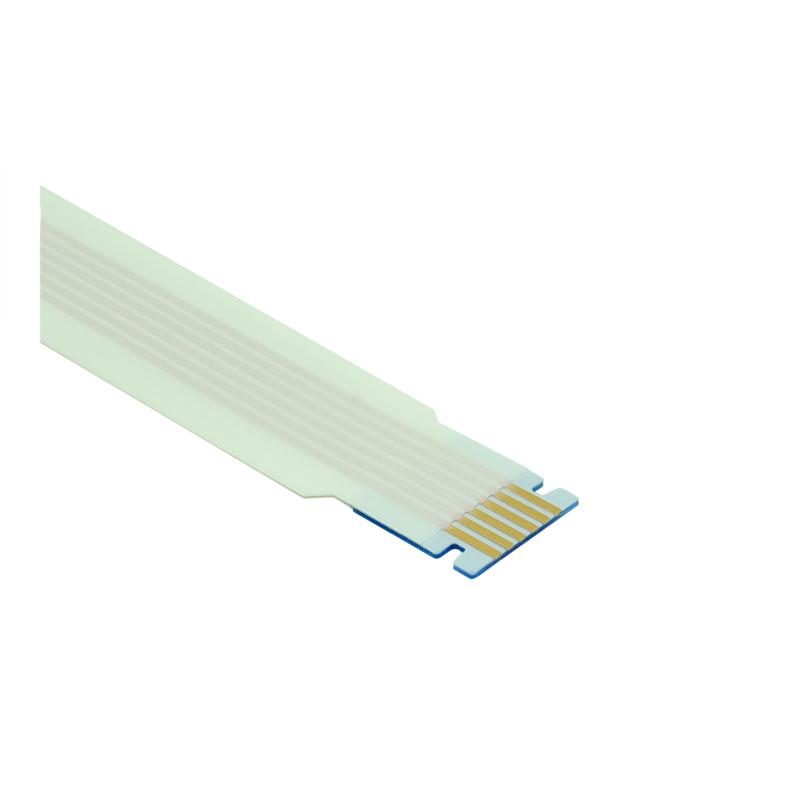

FFC with special Side Catcher for Panasonic AYF53 FFC0.50A06-0056L-2-2-04-04-AU-SC-AYF53 Our FFC cable is a high-quality foil cable with a pitch of 0.50 mm and 6 pins. It is equally insulated and has a total length of 60 mm. The use of UL2896 (80°C, 30V) ensures that the conductors of the cable, with a size of 0.05 x 0.30 mm, are optimally protected. The double-sided gold-plated contacts provide excellent electrical conductivity and ensure reliable transmission of data and signals. With the convenient side catcher, the cable is particularly easy to install and use, especially in conjunction with the Panasonic AYF53 series. foil cable, equally insulated, 6 pins

pitch: 0.50 mm

conductor: 0.05 x 0.30 mm, double-sided gold-plated contacts

total length: 60 mm

UL 2896 (80 °C, 30 V)

special side catcher for: Panasonic AYF53 series

Our FFC cable is an ideal solution for applications that require a compact and flexible connection. It is robust, durable, and provides excellent transmission performance. Convince yourself and order your FFC cable now!

Suitable for connector from Panasonic: AYF530665T
