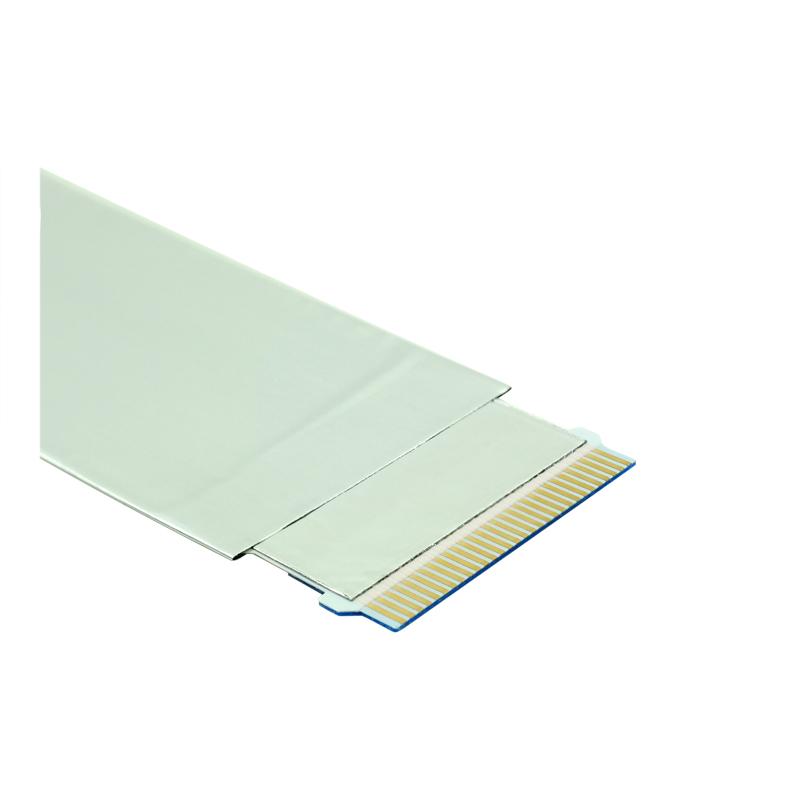

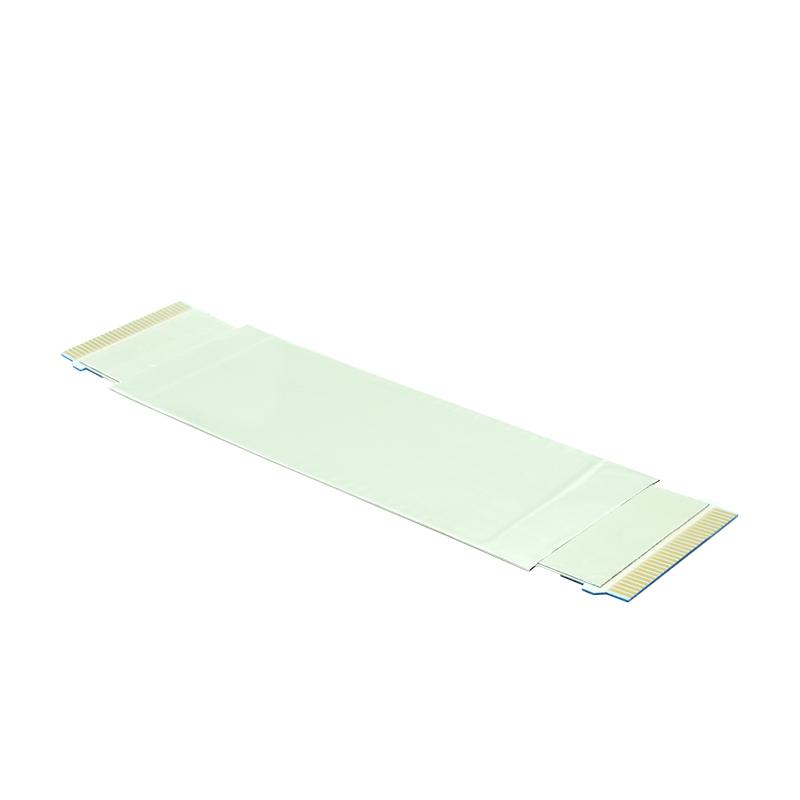

Technical drawing FFC for HIROSE FH41 connectors FFC0.50A30-0061E-2-2-06-06-AU-SHIELD-FH41 Technical drawing This flexible flat cable is specially designed for use with the HIROSE FH41 connector. Our FFC has a 0.50 mm pitch and 30 pin connections. The side-catcher feature makes it perfectly suitable for the mentioned connectors. The conductive tracks are galvanically gold-plated, which guarantees optimal electrical conductivity in combination with the gold-plated contacts in the connectors. The aluminum foil provides excellent signal shielding. FFC, 30 pins

pitch: 0.50 mm (+/-0.05 mm)

cross-section: 0.035 x 0.3 mm (+/-0.05 mm)

contact length: 2 mm (+/-0.05 mm)

reinforcement length: 6 mm (+/-1.50 mm)

contact thickness in the plug area: 0.3 mm (+/-0.05 mm)

total length: 65 mm

80 °C, 30 V, AC, VW-1 UL 2896 certified This FFC cable is particularly flexible due to the use of a 43 µ thick film.

This cable is compatible with the following connectors: FH41-30S-0.5SH(05), FH41-30S-0.5SH(99), FH48-30S-0.5SV.
