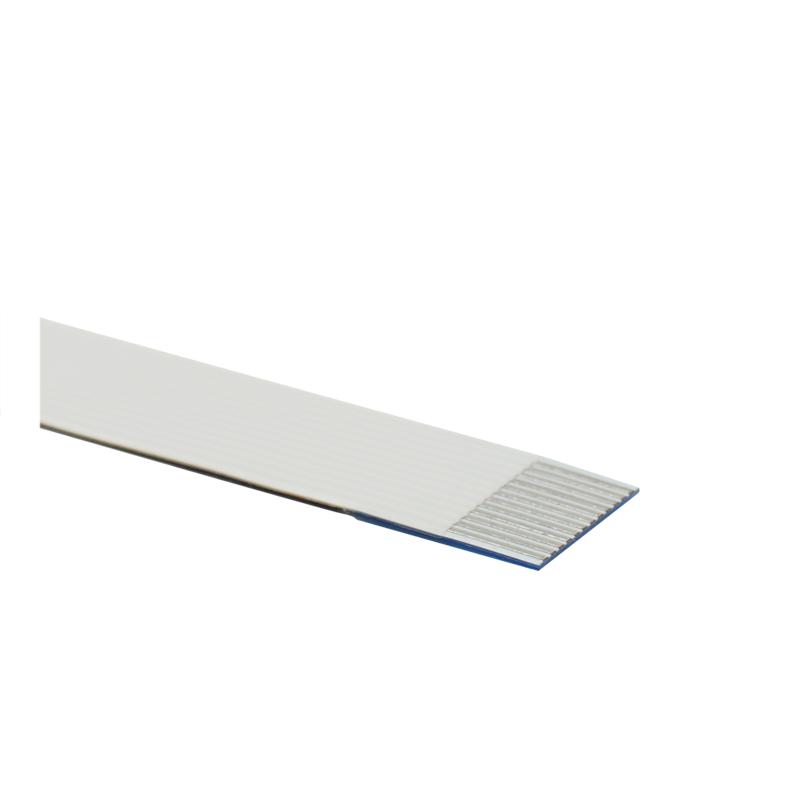

Technical drawing FFC | Pitch: 1.00 mm | 12-pin FFC1.00A12-0992L-4-4-08-08-IMT Technical drawing FFC with controlled impedance for optimal transmission characteristics! Flexible flat cables are often used for internal cabling in electronic devices due to their flat shape, low weight and high flexibility. They also have a high wiring density compared to the cable harness. The demand for high-performance flat ribbon cables suitable for high-speed data transmission and LVDS technology - without the associated signal loss - is constantly increasing. Here, impedance-controlled foil cables are the right choice! Impedance controlled FFCs are equipped with a shielding foil on one side to adjust the inductive and capacitive properties of the cable to the required impedance, mainly 100 Ohm. Technical data: foil cable, stripped on both sides, 12-pin

pitch: 1.00 mm

IMT Impedance Screen, Aluminium/PET laminated tape L = 1000 mm

conductor: 0.1 x 0.65 mm

UL 2896 (80 °C, 30 V)

temperature range: -10 °C to 80 °C, 30 V

weight: 5 g

Key Features

• The use of expensive shielding material can be minimized.
• Competitive FFC costs while improving or maintaining existing EMI & ESD performance.
• Highly customizable to meet various impedance design specifications.
• Compliant with various standards for high-speed serial data links.
