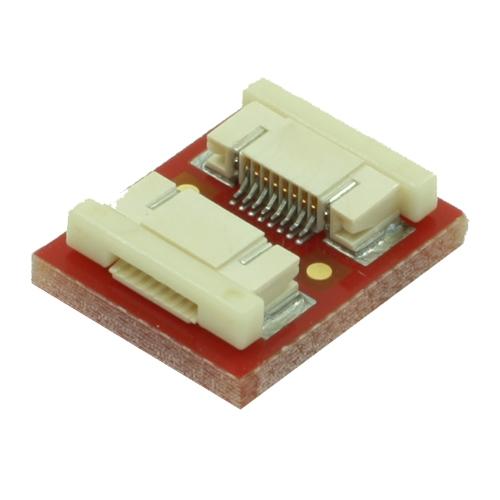

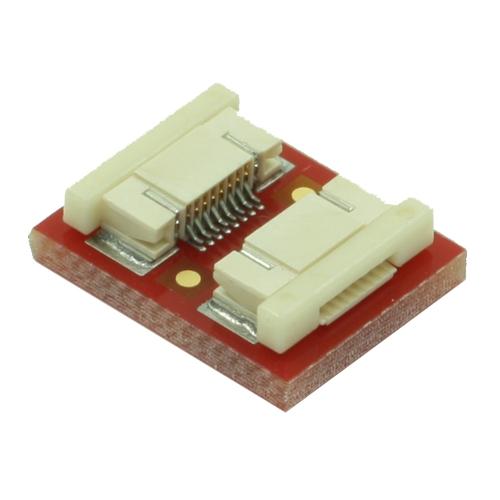

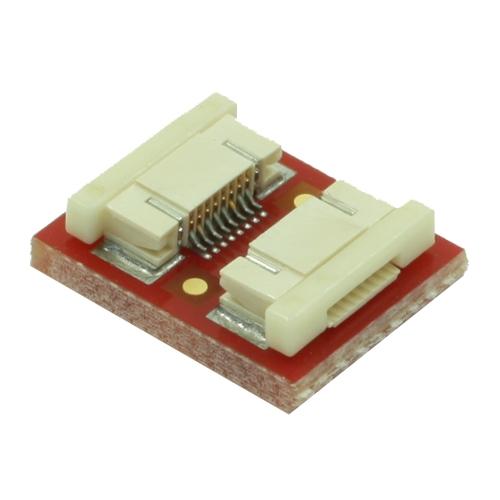

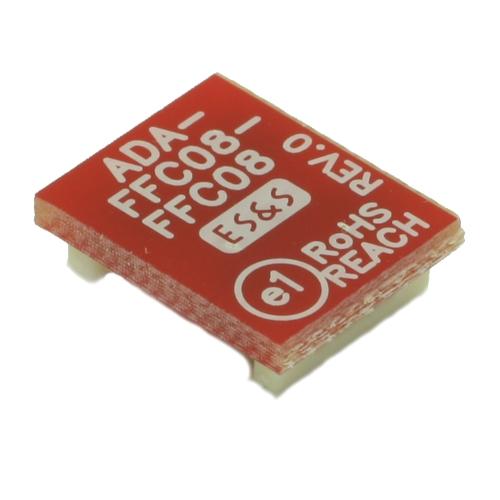

Adapter with 8-pin FFC connector ADA-FFC08-FFC08-050 This adapter allows to extend FFC-cables e.g. in display applications. Technical specifictaions:

side 1: FFC connector, 8 pins, pitch: 0.50 mm, ZIF, bottom contacting

side 2: FFC connector, 8 pins, pitch: 0.50 mm, ZIF, bottom contacting

dimension: 14 (l) x 12 (w) x 4 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 1.3 g

Suitable FFC-cables can be ordered separately: FFC0.50A08-0092L-4-4-08-08 FFC0.50D08-0134L-3-3-06-06 More FFC cables upon request. You can also inquire the suitable FFC cables on our Website using our FFC configurator. The following adapter solutions are mostly available from stock:

ADA-FFC04-FFC04-050 - 4-pin, pitch: 0.50 mm

ADA-FFC06-FFC06-050 - 6-pin, pitch: 0.50 mm

ADA-FFC07-FFC07-050 - 7-pin, pitch: 0.50 mm

This adapter can be manufactured in a customized version (without existing stock) with any pin number required as to quantities starting from 50 pieces.
