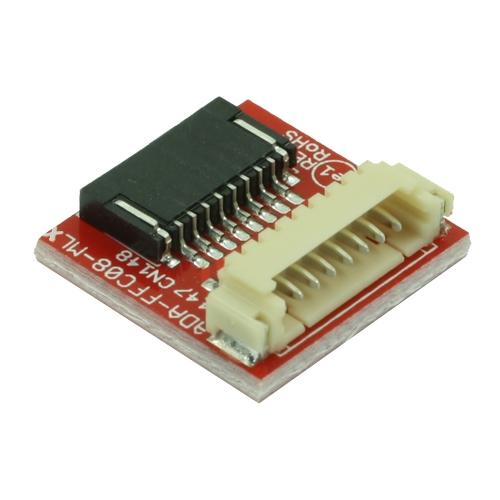

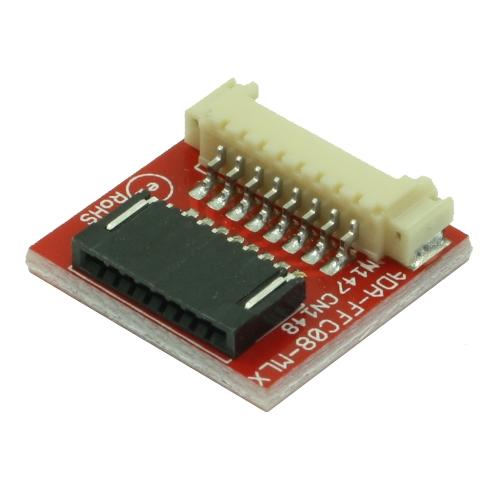

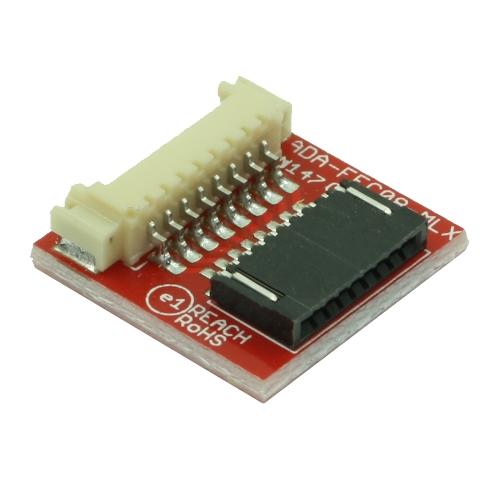

Adapter FFC plug to 12505WR-08 connector ADA-FFC08-MLX8-100 8-pin adapter for a connection with a FFC cable with 1.00 mm pitch This adapter is specifically designed for applications requiring a connection with FFC cables and is particularly suitable for LCD touch functionality. Its compact design makes it an ideal solution for integrating touch panels and similar devices.

side 1: 8-pin FFC connector, LIF SMD bottom, pitch: 1.00 mm

side 2: 8-pin strip for matching cable assembly 12505WR-08, pitch 1.25 mm

dimension: 16 (l) x 16 (w) x 1.6 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 1.3 g

This adapter is often used in touch applications. Matching cable assemblies:

side 1: for enquiries of FFC cable please use our FFC configurator

side 2: custom specific cable assembly KAB-51021-0800-0500FK
