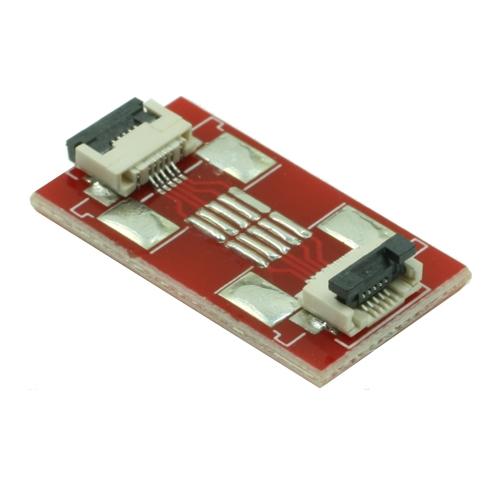

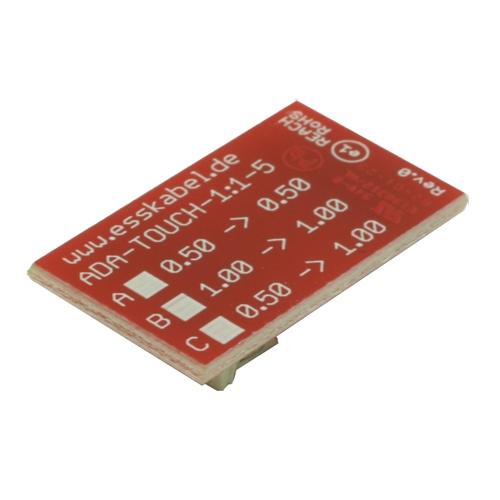

Adapter for touch screen | FFC 5-pin ADA-TOUCH-1:1-5P-C This adapter is designed to extend Flat Flexible Cable (FFC) connections with 5 pins. Additionally the pitch of the cables can be extended from 0.50 mm to 1.00 mm or vice versa. Two bottom contact connectors with ZIF technology (Zero Insertion Force) allow an easy mounting of both FFC cables. Please note that there might occur problems as to the quality of the signals.

side 1: 5 pin FFC, pitch: 1.00 mm connector

side 2: 5 pin FFC, pitch: 0.50 mm connector

dimension: 25 (l) x 14 (w) x 4.7 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 1.7 g

Key Features

• light weight
• lockable
• unilateral placement
• change of pitch
• customized lengths mountable on both sides
• Please note that there are no FFC cables included in delivery. Depending on availability FFC cables in various lengths can be supplied ex stock. Usually this type of FFC cable is used in TOUCHSCREEN solutions.
