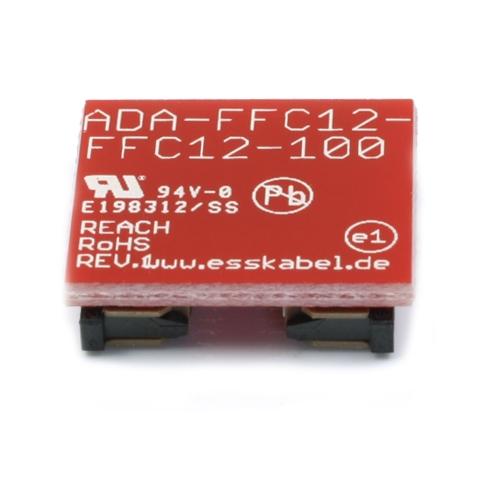

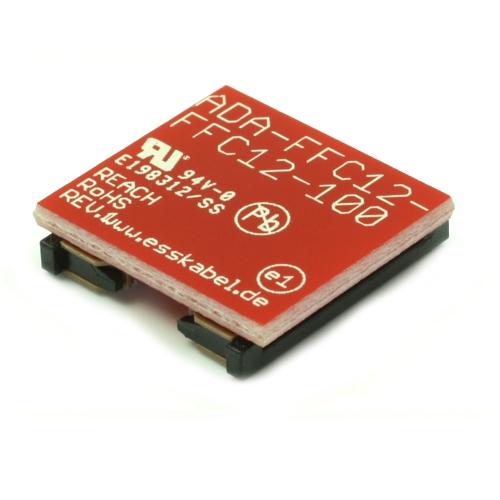

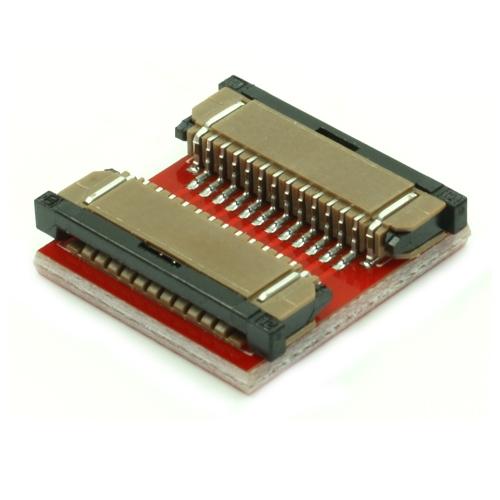

Adapter for FFC | 12-pin ADA-FFC12-FFC12-100 This adapter is designed to extend FFC cable with 12-pins and 1.00 mm grid.

side 1: FFC connector 12 pins, pitch: 1.00 mm, ZIF, bottom contact

side 2: FFC connector 12 pins, pitch: 1.00 mm, ZIF, bottom contact

dimension: 16.00 (l) x 18.00 (w) x 1.6 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 1.8 g

Suitable FFC-cables must be ordered separately i.e. pitch 1.00 mm. FFC1.00A12-0142L-4-4-08-08 FFC1.00D12-0144L-4-4-08-08 The following adapter solutions are mostly available from stock: ADA-FFC10-FFC10-050 - 10 pol. R = 0.50 mm ADA-FFC10-FFC10-100 - 10 pol. R = 1.00 mm ADA-FFC12-FFC12-050 - 12 pol. R = 0.50 mm ADA-FFC20-FFC20-050 - 20 pol. R = 0.50.mm ADA-FFC20-FFC20-100 - 20 pol. R = 1.00 mm ADA-FFC22-FFC22-050 - 22 pol. R = 0.50.mm ADA-FFC24-FFC24-050 - 24 pol. R = 0.50.mm ADA-FFC26-FFC26-050 - 26 pol. R = 0.50.mm Suitable FFC-cables for pitch 0.50 mm i.e.: FFC0.50A12-0142L-4-4-08-08 FFC0.50D12-0144L-4-4-08-08 This adapter can be manufactured in a customized version (without existing stock) with any pin number required as to quantities starting from 50 pieces.
