ADA-IP67-M20-ABM0-U3AF

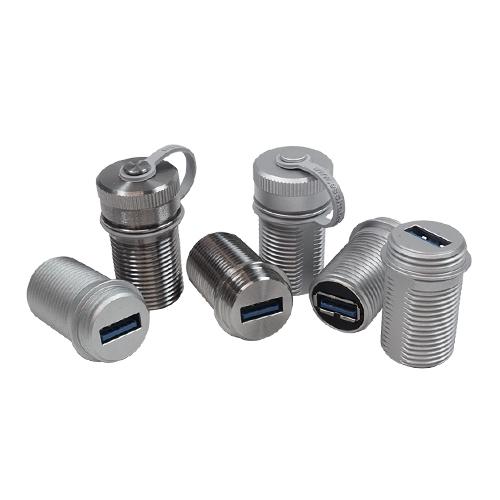

Order code Technical drawing We offer an USB built-in socket (type A, female) in a silver anodized aluminum adaptor version, it is also available in many customized metal and color variations. Please refer to the order code attached for your preferred version. Our standard scope of delivery ADA-IP67-M20-ABM0-U3AF contains the matching plane nut (M20 x 1.5-3.0), a closing cap with its rubber flap and a washer appropriate to any case with a thickness lower than 3 mm. You can add other components, such as a self-locking nut or a smooth cap, anytime. With the screwable closing cap and its rubber flap the adapter reaches protection class IP67. The socket, with its high-quality aluminum housing, can even be used for industrial or medical applications.

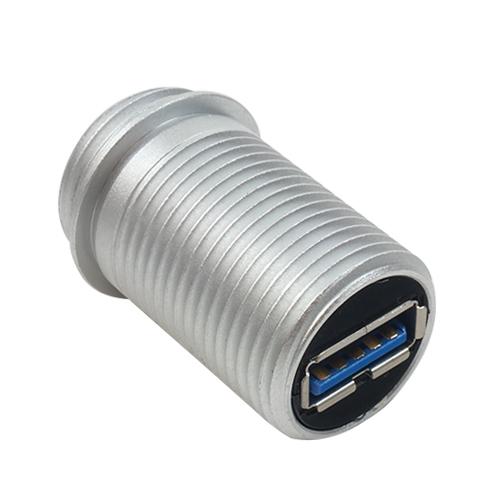

side 1: USB 3.0 type A, female

side 2: USB 3.0 type A, female

silver anodized aluminium housing

screw connection: M20 x 1.5-3.0

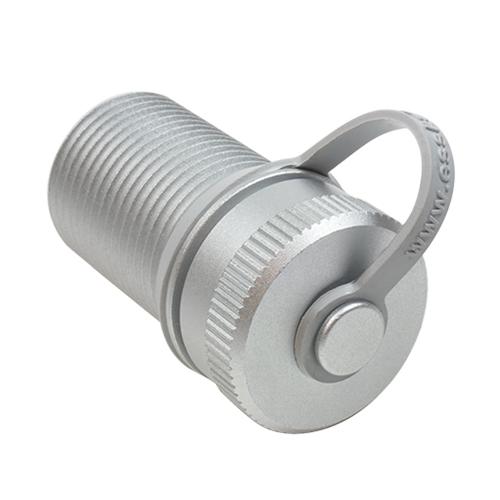

aluminium closing cap with rubber flap

AL6061

weight: ~ 21 g

You will find auxiliary equipment under the category IP67 accessories .
