ADA-IP67-M20-ABM0-U2AM-0500

Order code Technical drawing

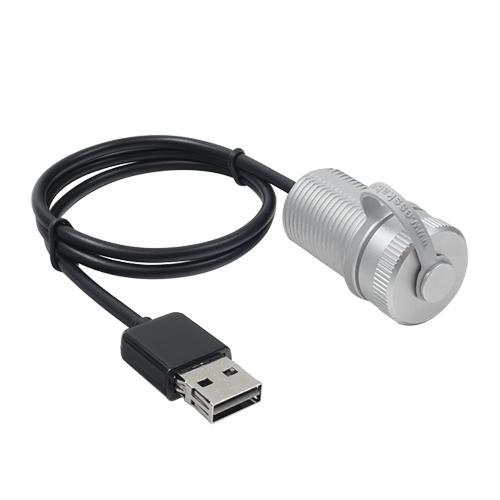

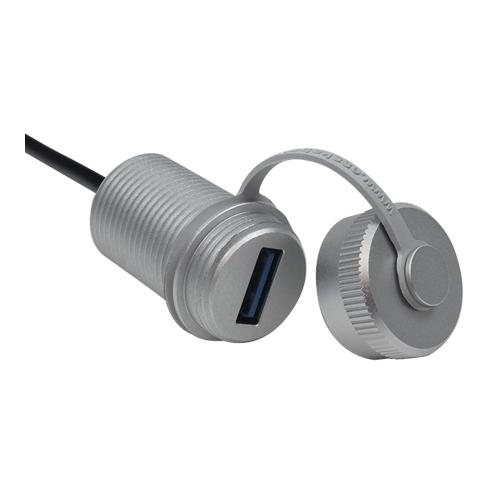

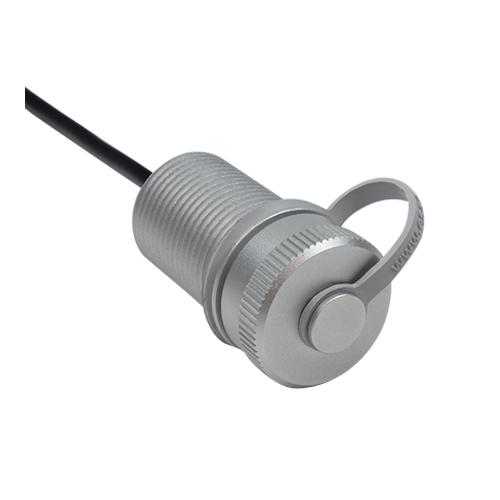

This USB built-in socket is available in a standard 500 mm length, customized lengths are available on request (MOQ: 25 pieces). With the screwable closing cap and its rubber seal the adaptor reaches protection class IP67. The socket, with its high-quality aluminum housing, can even be used for industrial applications.

The mounting socket offered in a silver anodized aluminum standard version, is available in many customized metal and color variations. Please refer to the order code attached for your preferred version, or give us a call for any special requirements. Our standard scope of delivery ADA-IP67-M20-ABM0-U2AM-0500 contains the matching plane nut (M20 x 1.5-3.0), a closing cap with its rubber flap and a washer appropriate to any case with a thickness lower than 3 mm. You can add other components, such as a self-locking nut or a smooth cap, anytime.

side 1: USB 2.0 type A, female

side 2: Cable USB 2.0 (L = 500 mm);

USB 2.0 type A, male silver anodized aluminium housing

screw connection: M20 x 1.5-3.0

aluminium closing cap with rubber flap

AL6061

USB cable length: L = 500 mm

weight: ~ 33 g

You will find auxiliary equipment under the category IP67 accessories .
