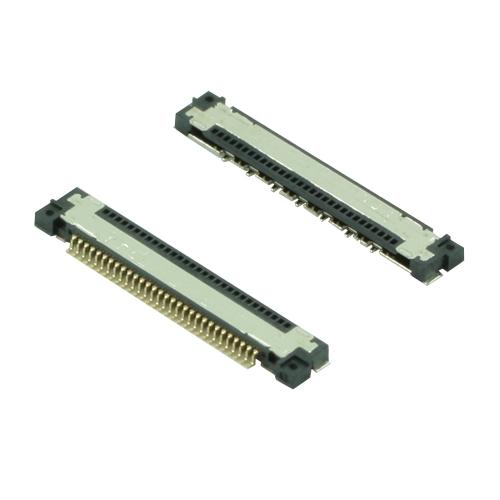

: KEL : KEL USL series USL Connector for Micro-Coaxial Cables | 30-pin

STE-KEL-USL00-30L : KEL : KEL USL series

Connector of the USL series for micro coaxial cables according to AWG42 with 0.4 mm pitch, SMT type, 30-pin SMT type 30-pin operating temperature -40 °C to +85 °C overall hight 1 mm amperages 0.25 A per contact reel packaging (500 pcs/reel)

Suitable for the following camera: Sony 9250

Product Notes

Mating connectors: USL20-30SS

Connector part of Sony HD Camera : FCB-EH3150, FCB-EH3310, FCB-EH3410, FCB-EH6300, FCB-EH6500, FCB-EV7500, FCB-EV7520, FCB-EV5500, FCB-EV7300, FCB-EV7320, FCB-EV7310, FCB-EV5300, FCB-EV7100, FCB-EV7520A, FCB-EV9500M, FCB-EV9500L

Camera modules from TAMRON : MP1010M-VC and MP3010M-EV
