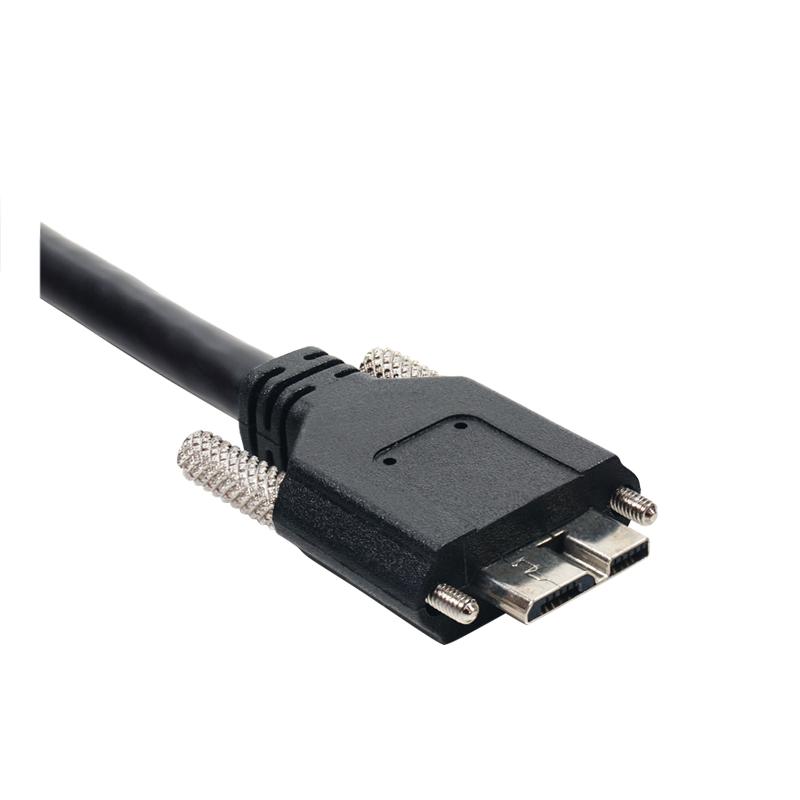

Technical drawing USB 3.0 type micro B with screw lock KAB-USB3.0-A-M-USB3.0-MICRO-B-M-0300RK Technical drawing Here we offer you our high quality USB 3.0 cable. This data cable is designed for high-speed transmissions and allows you to connect devices with a micro USB 3.0 port to a PC or notebook with a free USB port. It is a USB 3.0 type A, male connector, to a micro USB 3.0 type B, male connector. The micro B connector is double secured with a screw lock. You can order this USB 3.0 cable optionally with screw locking on one or both sides of the cable. The screw locking of the plug ensures an extremely reliable connection and prevents the cable from being pulled out unintentionally.

side 1: USB 3.0 type A, male

side 2: USB 3.0 type micro B, male, with screw locking

screw type: M2

screw spacing: 17.88 mm

cable: USB 3.0, AWG28/28/24

cable: Ø 5.5 mm, black, PVC

UL2725

L = 300 mm RoHS compliant

temperature: up to 80°C, 30V

weight: 27.55 g
