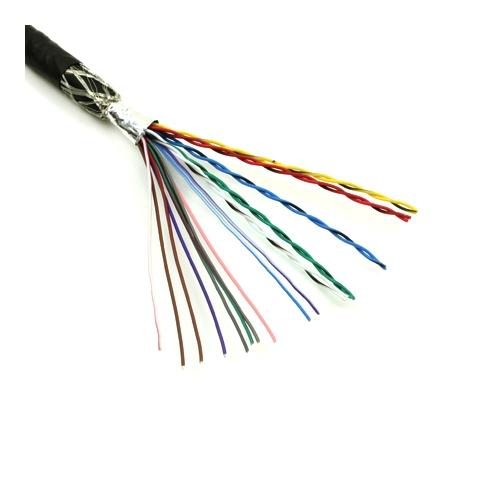

Special Cable for LVDS | 20-pin

LTG-LVDS-05P-10C-AWG30-UL21445-BK

Special-purpose cable for the transmission of LVDS signals with an overall screen. 20-pin LVDS round cable AWG30 (7/0.10) x (5P+10C) 5 twisted pair and 10 single conductors

LSOH-jacket, free of halogen, colour: black

Free of halogen

Diameter of conductor: = 0.60 +/- 0.05 mm

Total diameter of TPE jacket: = 5.5 +/- 0.2 mm

Operating temperature: -10°C to 80°C with 30V

UL 21445
