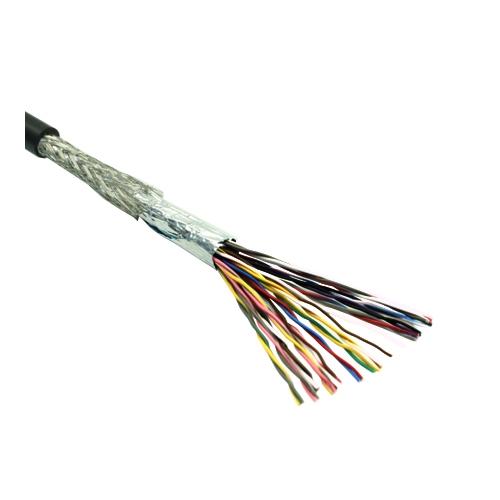

Drawing/ Special Cable for DUAL-LVDS Signals | AWG30 LTG-LVDS-15P-00C-AWG30-UL20276-BK Drawing/ Special cable for the transmission of DUAL-LVDS signals with an overall screen. AWG30 (7/0.10) 15 pairs Zdiff = 100 Ohm DIN color code tinned copper wire conductor single conductor diameter = 0.60 +-0.05 mm total diameter of PVC sheath d = 6.8 +/-0.2 mm

color: black

packing unit: 100 m

UL 20276
