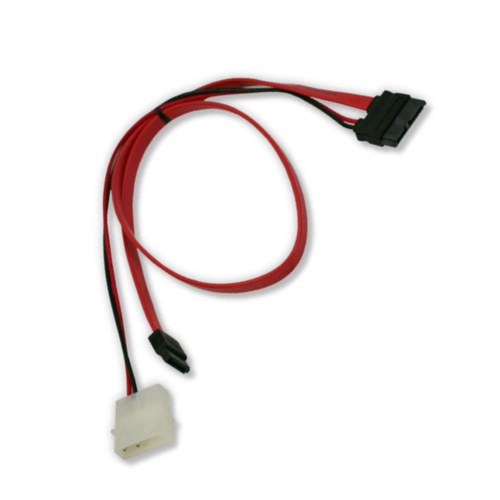

Technical drawing SATA cable KAB-SATA-CDROM-7P-6P-0500RK-0250LI-HDD-REV-1 Technical drawing SATA-cable for Slimline CD / DVD drives This adapter cable is designed to plug CD/DVD drives (Ultra Slim e.g.TEAC DV-28S-V93, Lite On DS-8A2S and Samsung SN-T083A/BEBE)) – which are operated in notebooks or industrial computers – in SATA connectors (6- and 7-pin).

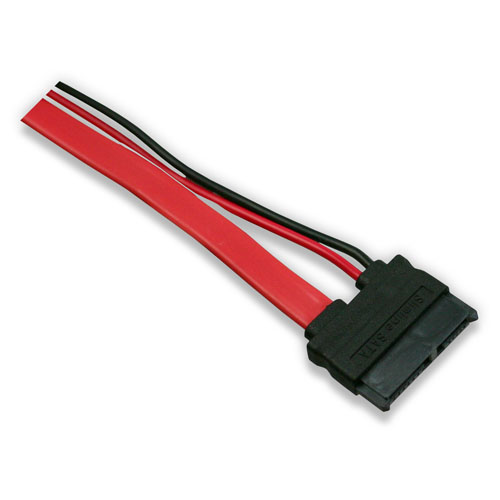

side 1: SATA 7P/6P, straight 180°

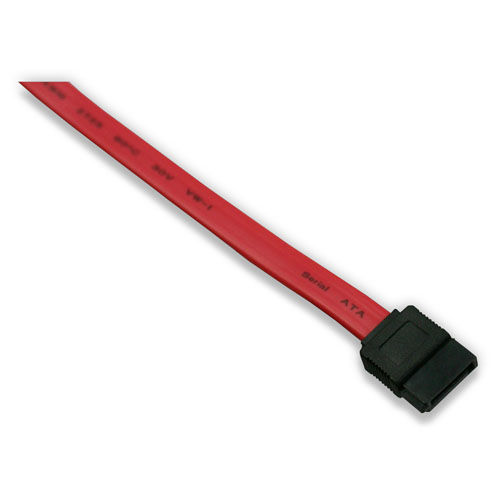

side 2.1: SATA 7P, straight 180°

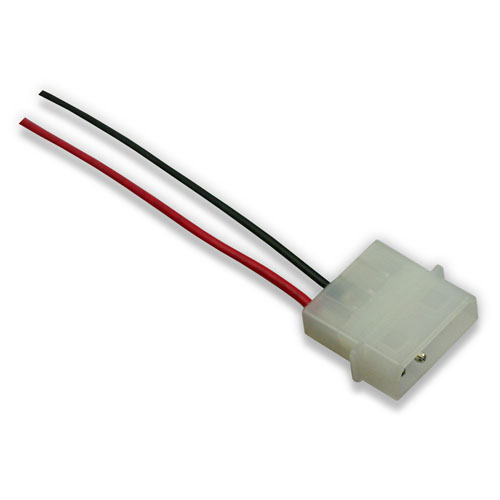

side 2.2: 5.25" Power connector

cable 1: SATA cable 7P, red, L = 500 mm

UL 2725

cable 2: single strands AWG18, red/black, L = 250 mm

UL 1007

operating temperature: -20 °C to 85 °C

weight: 25.6 g
