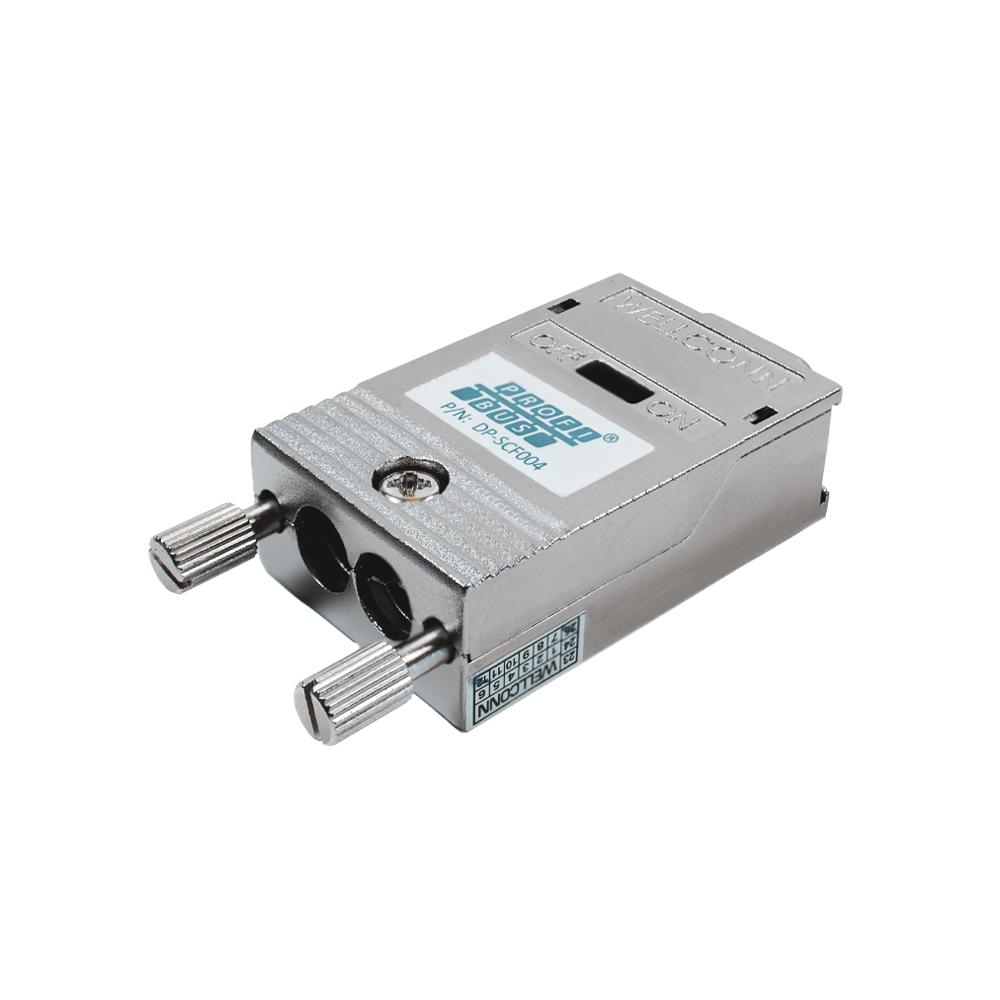

Back to overview New Profibus Interface Connectors / Adapter PROFIBUS Connector – Compact. Robust. Reliable. ADA-DP-SCF004 Profibus Interface Connectors / Adapter The PROFIBUS interface connector ADA-DP-SCF004 is the ideal solution for demanding PROFIBUS networks with transmission rates of up to 12 Mbit/s. Thanks to its extremely compact metal housing (only 32 × 50 mm), it is one of the smallest PROFIBUS connectors available worldwide and is perfectly suited for installations where space is limited. The galvanised ZnAl housing with high-quality shielding ensures excellent interference immunity and reliable data transmission – even at maximum data rates and under harsh industrial conditions. A key feature is the integrated termination resistor, which can be conveniently activated via a slide switch. When activated, the outgoing bus segment is automatically disabled – enabling safe and error-free commissioning segment by segment.

The ADA-DP-SCF004 is suitable for all standard PROFIBUS cables (Type A and B) with an outer diameter of 6 to 8 mm and supports both solid and stranded conductors. Installation is quick and straightforward: strip the cable, insert the conductors, tighten the screws – done.

Technical Data:

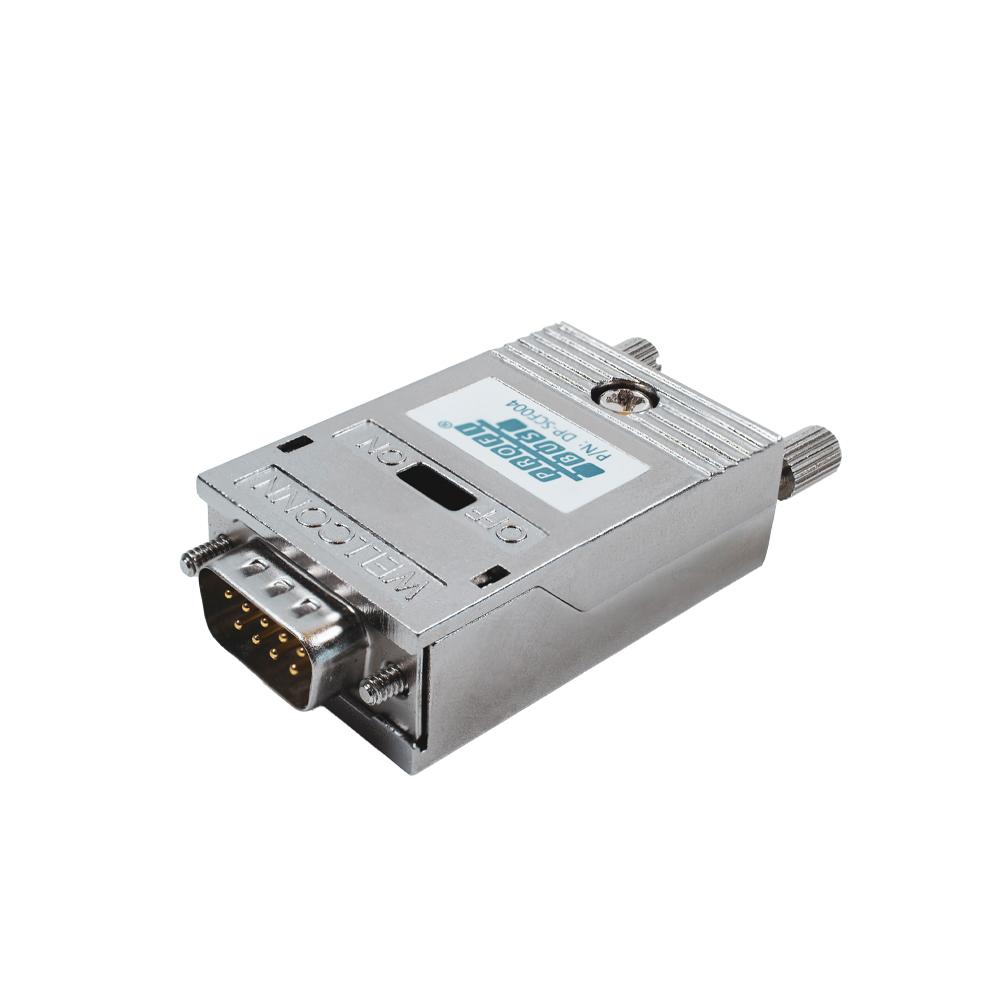

Side 1: 9-pin D-SUB male connector, 180° cable outlet

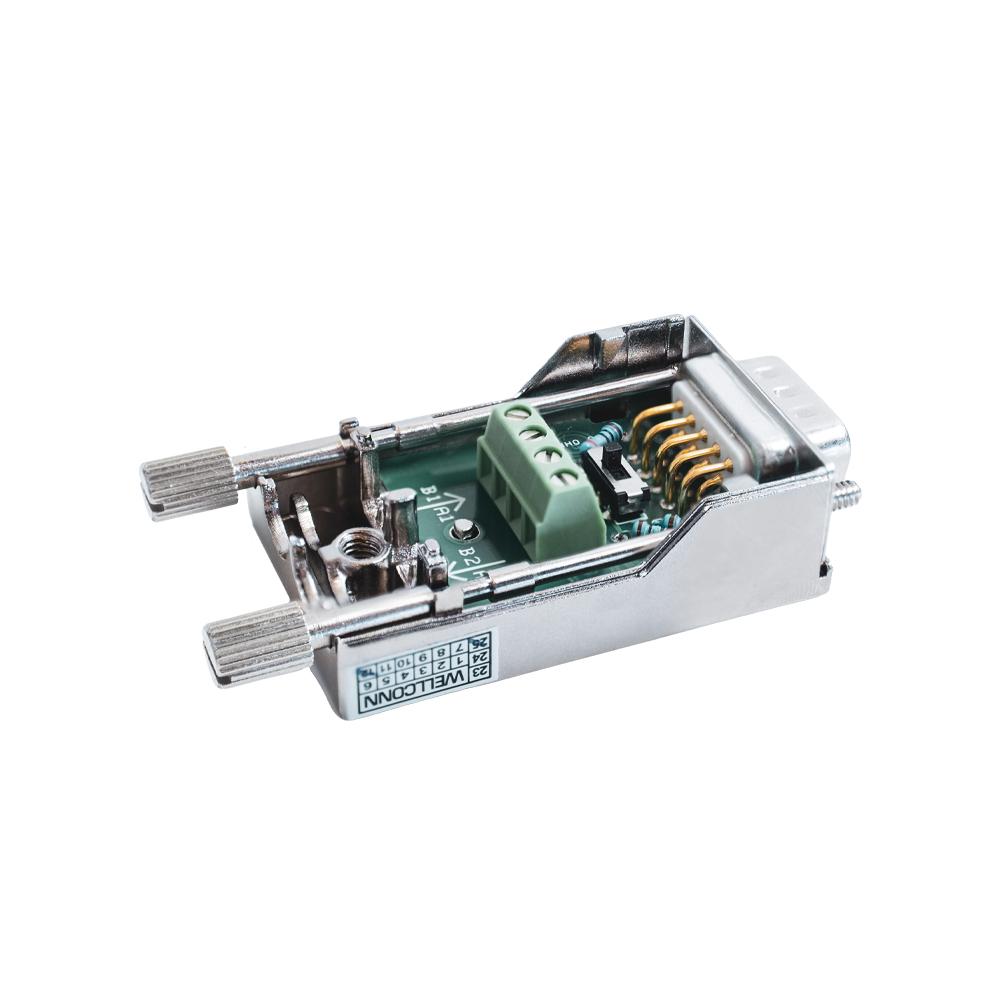

Side 2: Screw terminal connection for PROFIBUS cable

Conductor cross-section: Solid: 0.14 mm² – 1.5 mm² / Stranded: 0.14 mm² – 1.0 mm²

AWG 26–16

Cable diameter: 6.0–8.0 mm

Degree of protection: IP40

Pin assignment: 3, 5, 6, 8

Housing material: ZnAl, galvanised

Key Benefits: PROFIBUS connector up to 12 Mbit/s Extremely compact design Integrated, switchable termination resistor Robust, shielded metal housing (ZnAl, galvanised) Suitable for solid and stranded conductors Fast and secure installation – ideal for field use

Temperature range: –40 °C to +75 °C

The ADA-DP-SCF004 stands for reliability, ease of use and maximum operational safety – the perfect choice for modern PROFIBUS installations in industrial and automation environments. Contact us today for individual consultation and have your cable solution tailored precisely to your requirements.

Compatible with: ERNI 134928, TE 134928-E
