Product catalogue: CABLINE®-UM

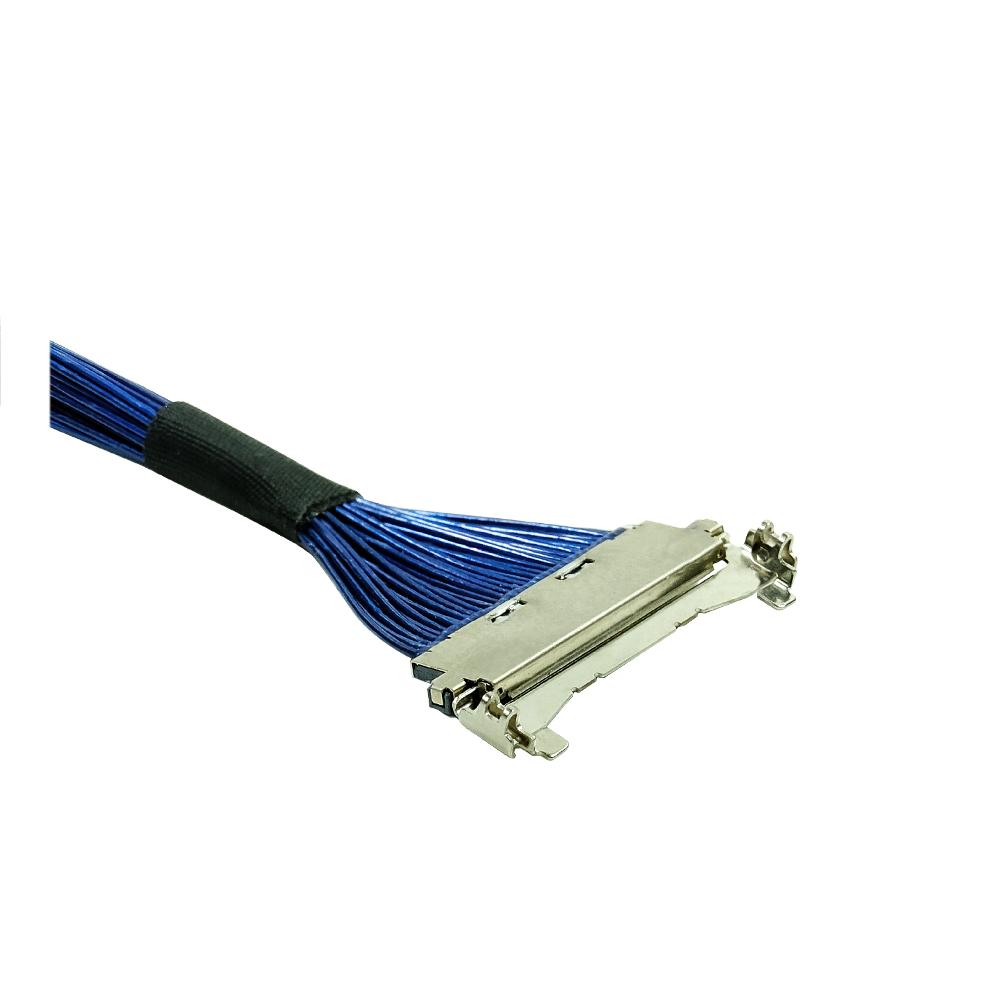

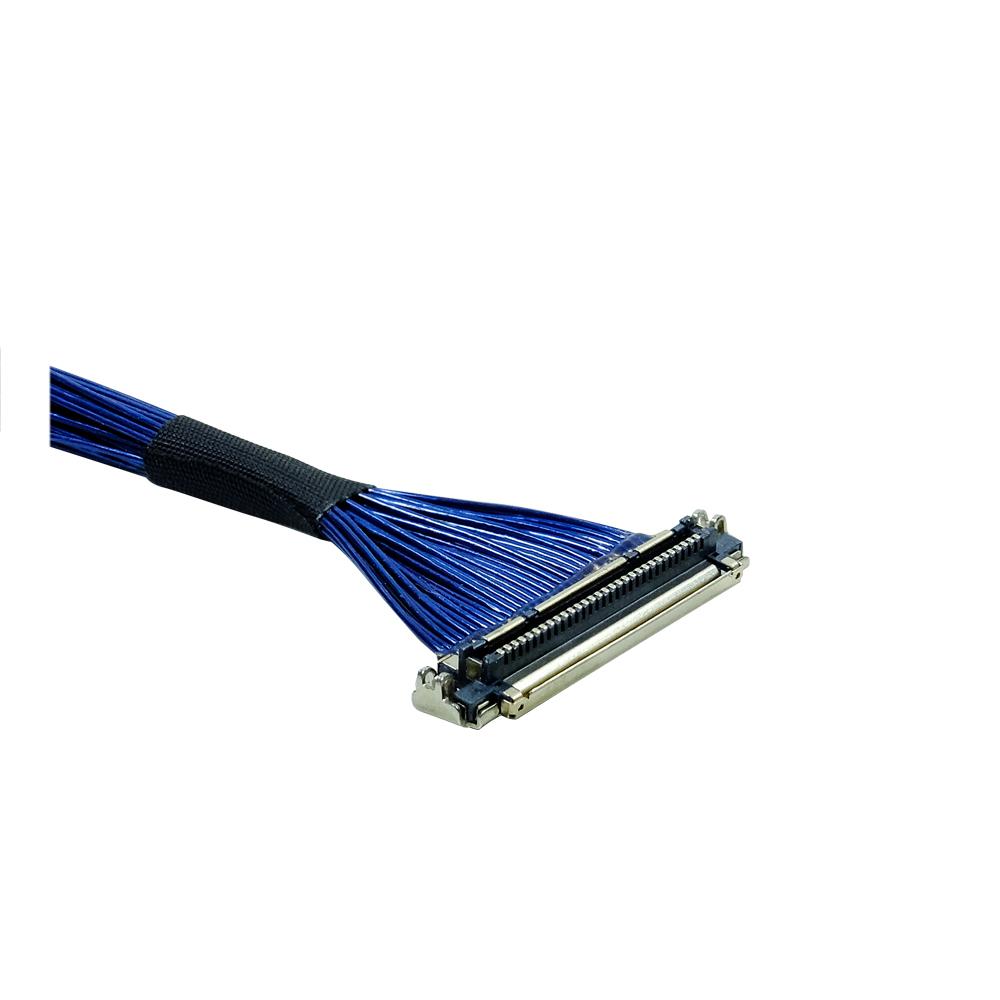

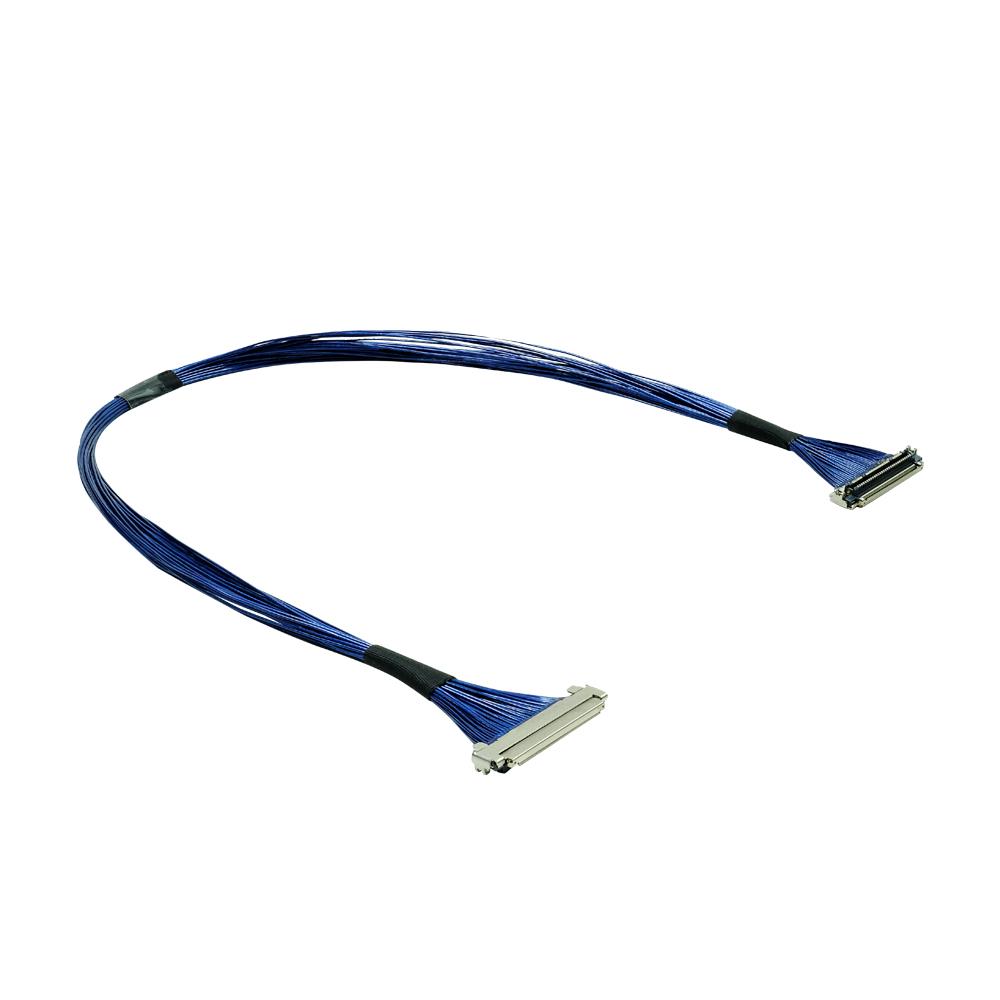

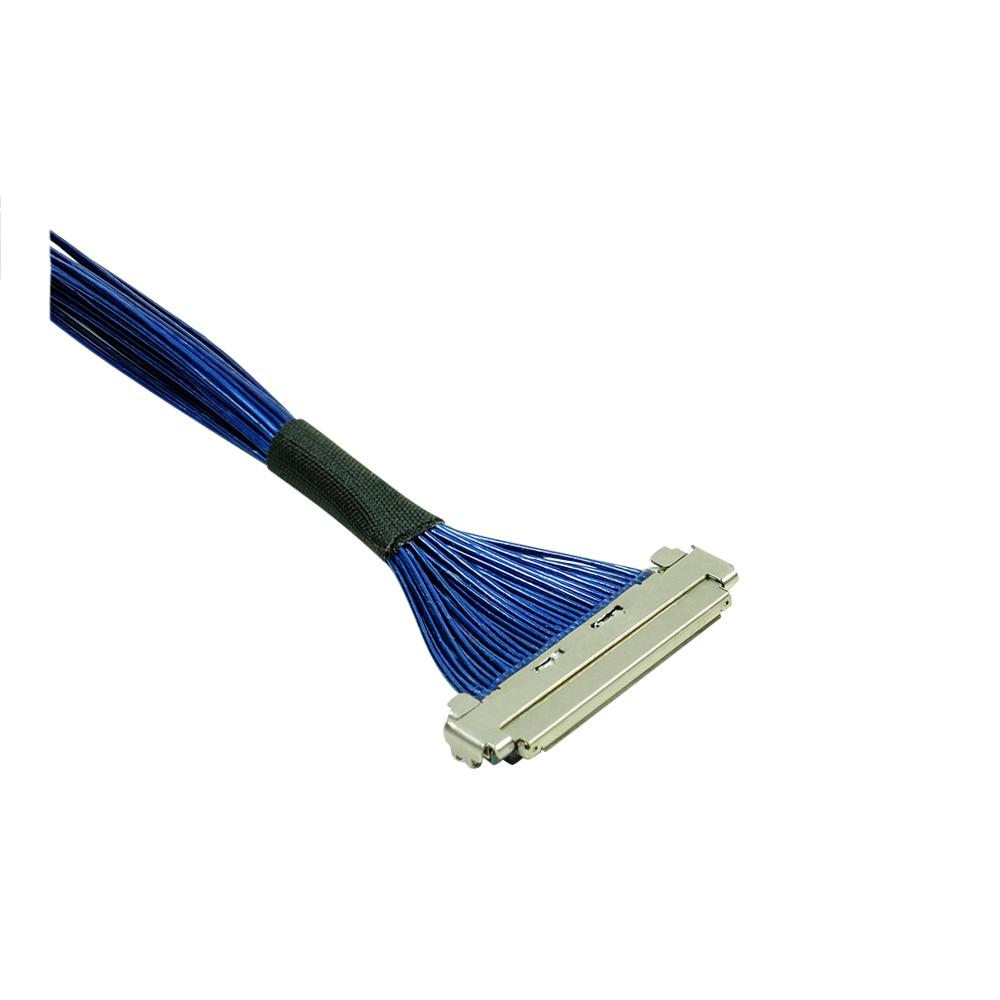

Micro coaxial cable with I-PEX CABLINE®-UM connector & lock cover

KAB-I-PEX-20878-030-20878-030-0200RK Product catalogue: CABLINE®-UM

Are you looking for a reliable and high-performance cable for your high-speed transmissions? Then we have the solution for you! Our new micro-coaxial cable with I-PEX CABLINE®-UM connector and lock cover offers excellent shielding and a high data transmission rate. The cable has an I-PEX CABLINE®-UM connector of the 20878-030 series, which can be used for micro, twin coaxial cables as well as for single strands. The connector has a mating height of 2.2 +/- 0.15 mm (with locking cover), it can be placed on the PCB to save space. By using the mechanical locking cover, the plug retention force is increased even further and the plug can be held securely on the PCB. The micro-coaxial cable consists of 30 blue AWG 40 coaxial strands, which are round taped and have an outer diameter of 0.35 mm. The cable is certified according to UL1354 and complies with the RoHS directives. With our new micro-coaxial cable, you can perform high-quality transmissions at high data rates. Technical data:

side 1: I-PEX- 20878-030, pitch 0.30 mm, 30 pins

side 2: I-PEX- 20878-030, pitch 0.30 mm, 30 pins

cable: 30 coaxial strands, AWG 40, Ø 0.35 mm, blue

length = 200 mm, round taped (10 mm), black

plugged height: 2.2 +/- 0.15 mm (with locking cover)

UL1354

mating type: vertical, right angle

mating cycles: 30

halogen-free RoHS compliant

temperature range: -40 °C to 85 °C

Electrical characteristics:

voltage: 100 V AC per contact

current: AWG40 = 0.3 A AC/DC - per contact

contact resistance: max. 5.0 Ω

dielectric withstand voltage: 250 V AC for one minute

insulation resistance: min. 10 MΩ | 200 V DC, 0.5 sec.

For more detailed technical information, feel free to take a look at the attached PDFs and this I-PEX manufacturer video or check out the I-PEX website . Please also visit our I-PEX category. Here you will find more cable assemblies with I-PEX connectors. CABLINE®-UM part numbers for components:

plug: 20877-030T-01 (30 pins)

receptacle: 20879-030E-01 (30 pins)

plug shell: 3488-0301

plug lock cover: 3493-0301
