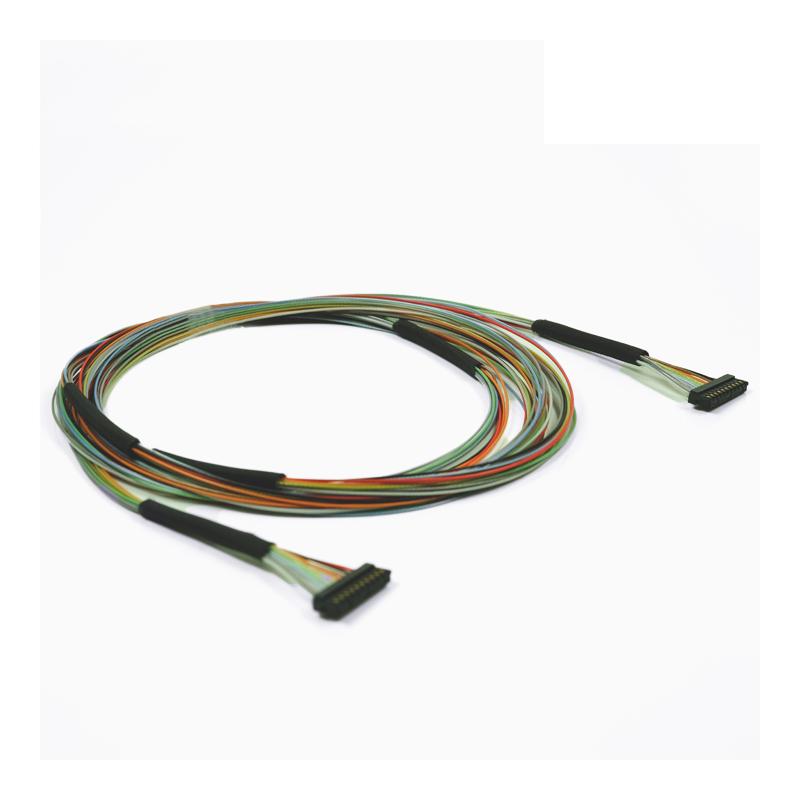

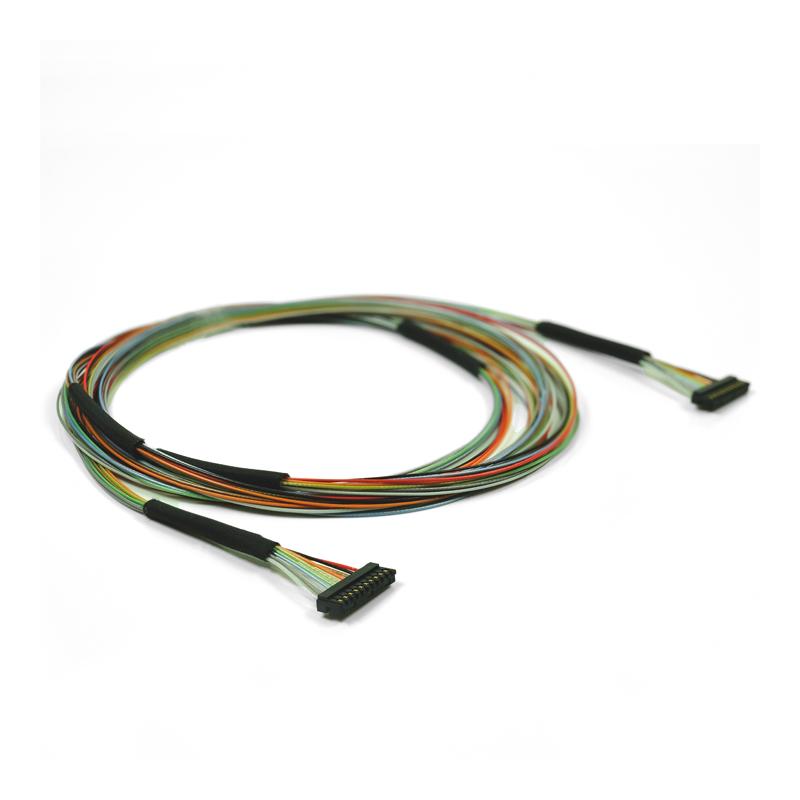

LED backlight display cable with Teflon strands KAB-ACES-91209-01011-1000LI-TEFLON-1:1 With our LED Backlight Display Cable, you can easily connect a display LED backlight to any connector. The cable is supplied with a 10-pin ACES connector (91209-01011) with 10 wires mounted on both sides, ensuring a quick and easy connection. This particular cable is particularly suitable for sample and small series production and allows for a 1:1 configuration. With a length of 1000 mm and Teflon wires available in different colours, the cable ensures excellent performance. It is UL 10064 certified and offers an extremely durable construction designed for a temperature range of -80 ℃ to +105 ℃, making it ideal for use in demanding applications. With this LED Backlight Display Cable, you will receive a reliable and high-quality connection solution that is perfect for use in various applications.

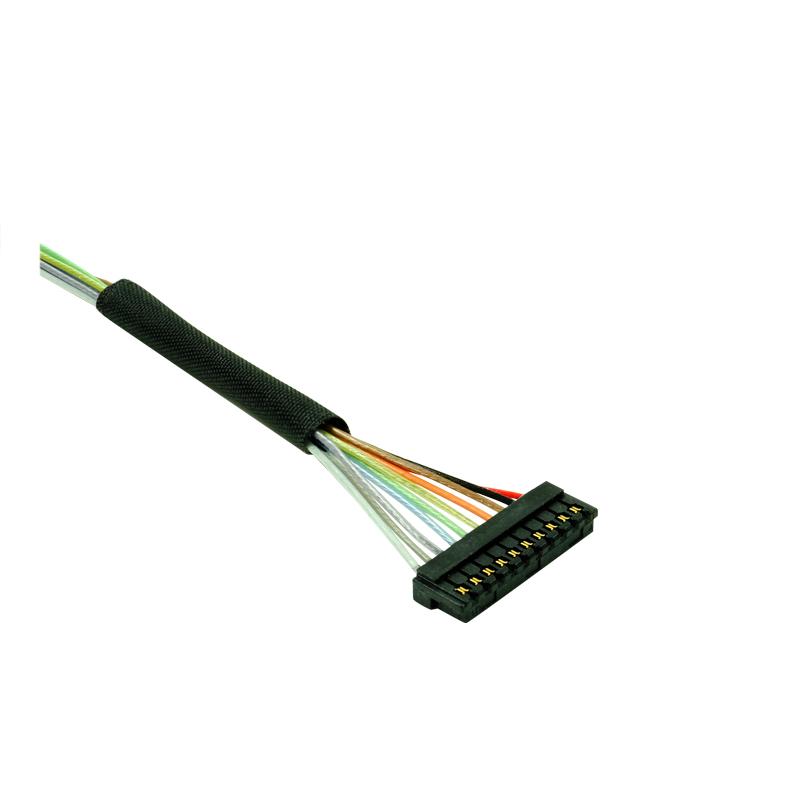

Side 1: ACES 91209-01011, 10 pins, pitch = 1.00 mm

Side 2: ACES 91209-01011, 10 pins, pitch = 1.00 mm

Teflon stranded wire AWG32, coloured

Outer diameter: from 0.52 to 0.56 mm

UL 10064 L = 1000 mm Assignment 1:1

Temperature range: -80 ℃ ~ +105 ℃

This item is available immediately from stock. Need a different length? We are happy to provide you with additional options. Contact us!

Also, be sure to order the matching pin header: STE-ACES-91208-01001-H01 and the appropriate ES&S adapter: ADA-91209-01011-51021-1000 .

This cable is compatible with the following pin headers: 91209-01011, 91208-01001.

The cable is suitable with the following displays: G104X1-L04, G121X1-L03, G104X1-L03, FG100451DSSWNG01, TX31D45VM, AM-1024768GTMQW-T00H, VGG107603-0TMLWD, VGG107603-0TMLWC, and G121XCE-125.
