We would like to introduce our new USB 3.1 Type C data cable: with a male Type C connector to a female Type C panel connector. The panel connector with flange offers you a screw connection with your end device. Mounting hole distance: 20 mm. Screws are unfortunately not included.

USB 3.1 enables data transfer rates of up to 10 Gbps - this is up to 20x faster than the transfer rates of a USB 2.0 port (480 Mbps). Here is an overview of the maximum data transfer rates of the different USB ports:

Low Speed: USB 1.0 -> 1.5 Mbps

Full Speed USB 1.1 -> 12 Mbps

Hi-Speed: USB 2.0 -> 480 Mbps

SuperSpeed: USB 3.0 -> 5 Gbps

SuperSpeed+: USB 3.1 -> 10 Gbps

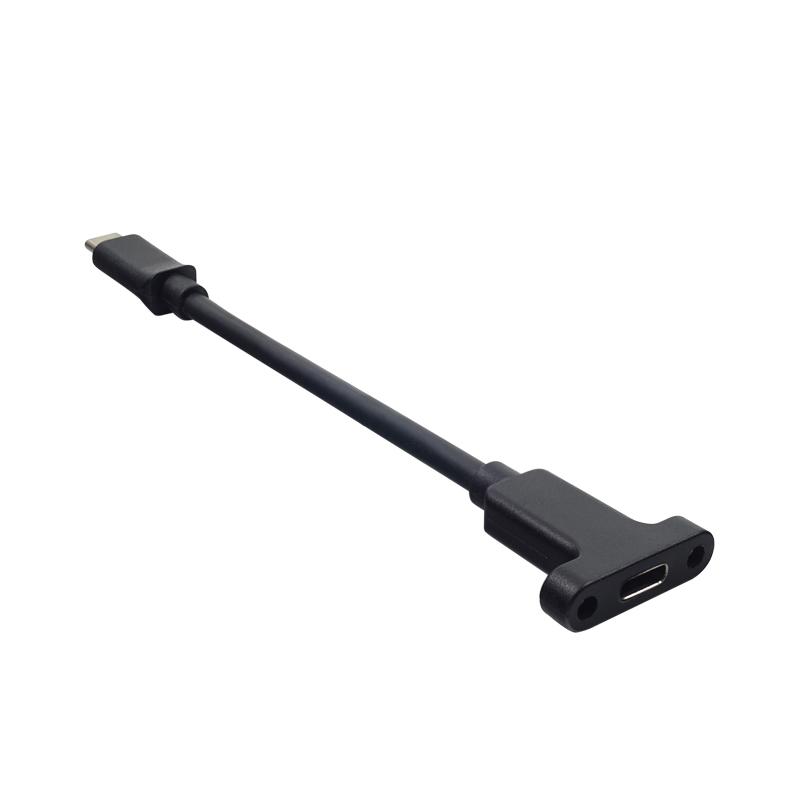

side 1: USB 3.1 Type C, male

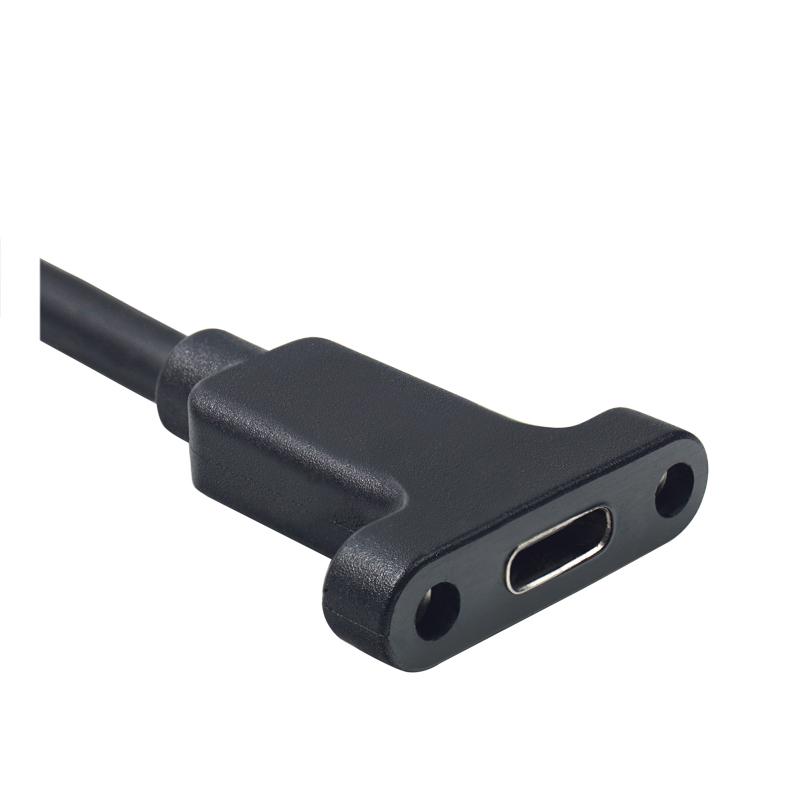

side 2: USB 3.1 Type C, female panel mount with flange (27.5 mm), thread UNC 4-40

USB cable: UL2725, AWG32/AWG24, black

OD = 4.8 mm, L = 150 mm MOQ = 500 pcs.

weight: 11.7 g

Key Features

• significantly faster and safer connection speed
• compatible with Thunderbolt™ 3
• can be plugged in on both sides and is thus more variable in application
