Technical drawing

KAB-USB-B-MINI-USB-B-F-FLANSCH-0500RK

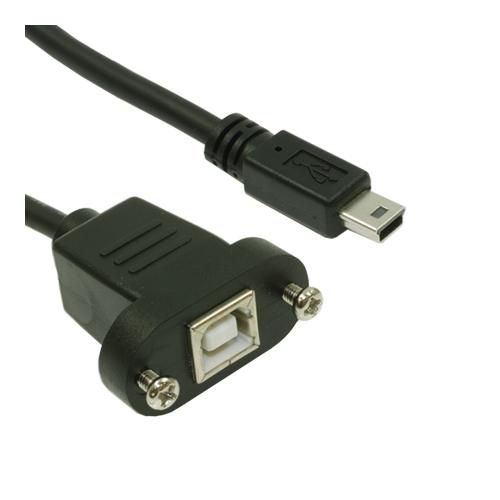

Technical drawing USB extension cable typ B female with flange for panel mounting and M3 threaded to USB-B male mini.

side 1: USB-B male mini

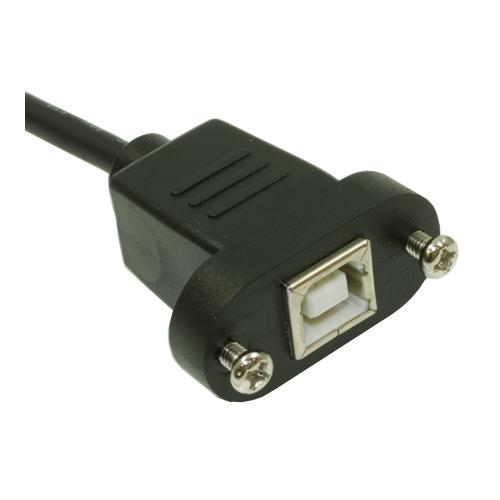

side 2: USB-B female with flange, M3 threaded

shielded, twisted pair USB 2.0 round cable, AWG28/1P, AWG24/2C, color black, OD 4.5 mm, l = 500 mm UL 2725

weight: 33 g

Please let us know your special requirements as to the USB cable. We would be glad to also offer you customized solutions.
