KAB-USB-A-USB-B-MINI-90-LINKS-0500RK

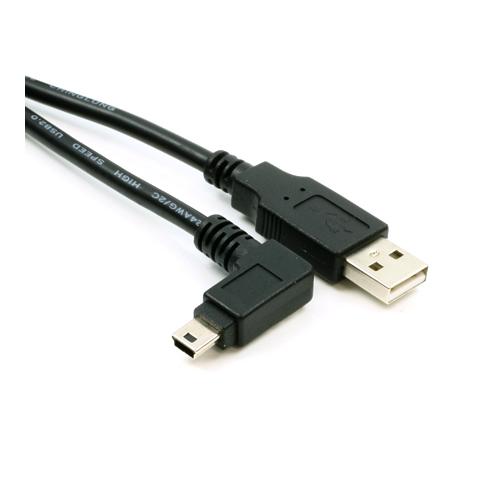

USB 2.0-1.1 connecting cable USB connector type A and USB-Mini connector type B for mobile hard disks, navigation systems, cockpits and digital cameras. The special feature of this cable is an angled USB-Mini connector type B. This cable is space saving as to its mounting into housings. Due to its length of only 50 cm there is no additional power supply needed. The cable design is extremely short and thus ideal for mobile applications and for a connection of high-powered USB devices. The twin shielding makes this cable perfectly suitable for industrial applications.

side 1: USB-A connector, 180°

side 2: USB-B-Mini (5-pin) 90° angled to the left in plug direction

USB wire AWG28/1P (pair twisted data cable), black, l = 500 mm, twin shielding (screen and netting) UL2725, temperature class 80°C, voltage class 30V

operating temperature: -10 °C to 80 °C

weight: 28.5 g

Further designs are available upon request on short call: USB-connector A angulated to the right USB connector A angulated to the left USB-connector A angulated downwards USB-connector A angulated upwards USB-connector B angulated to the right USB-connector B angulated to the left USB-connector B angulated downwards USB A + B angulated to the right USB A + B angulated to the left A angulated to the right + B angulated to the left
