KAB-USB-A-M-USB-A-M-0500-LOCK

Functional description Technical drawing This special USB cable is designed for a standard USB connection with interlocking function. Advantage: vibration-proof for industrial applications available ex stock customer specific modification possible Disadvantage: The plug fits on 99 percent of all standard sockets. Some socket manufacturers have a modified design. In this case the male connector does not lock!

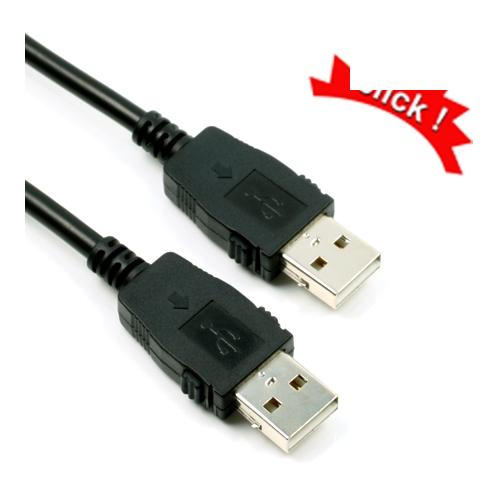

side 1: USB Typ A male with interlock

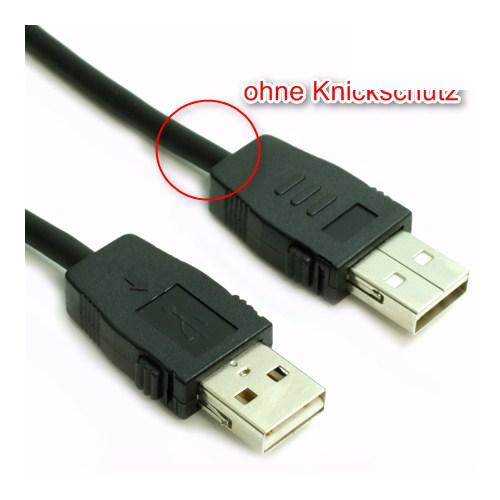

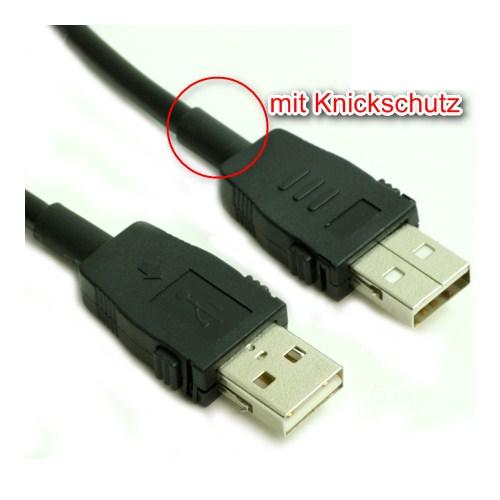

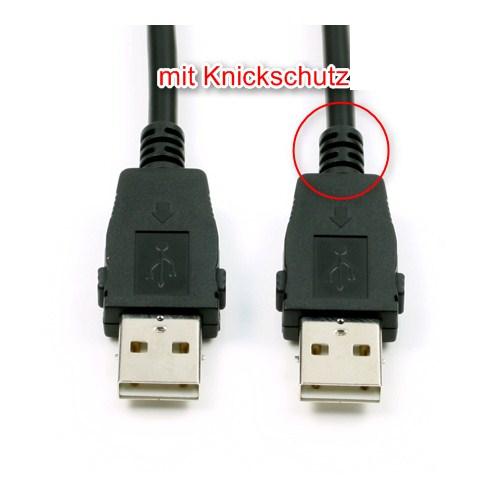

with or without bending protection

cable: USB cable 2.0, UL2725, 1P+2C+2B, AWG24+28, black color

dimension: 500 (l) (in mm)

operating temperature: -20 °C to 85 °C

weight: 26 g

The folllowing lengths are available: 240 mm 500 mm 600 mm 1000 mm 2000 mm 5000 mm
