Wire colour code

KAB-SET-FI-X30XX-FI-X30XX-0500RK-26P

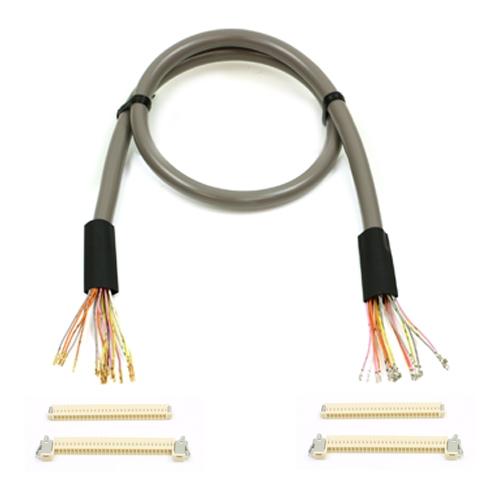

Wire colour code This cable set allows a quick and easy connection between a display with a STM connector P2407P30 or PK2407P30 (compatible with JAE series FI-X or FI-XHL) and any graphics board connector of the same series STM P2407P30 oder PK2407P30. We supply a 26-pin round cable with both connectors P2407P30 or PK2407P30 on side 1. The same STM connectors for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM P2407P30 und PK2407P30 (compatible with FI-X und FI-XHL series)

side 2: STM P2407P30 und PK2407P30 (compatible with FI-X und FI-XHL series)

both sides unplugged ighly flexible round cable, 2 x 13 pins , twin stranded, AWG28, shielded, length = 500 mm

weight: 35 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• FI-XB30SRL-HF11, FI-X30S-HF-NPB, A1006-WR-S-30P, CNTH243A30123, CNT243A3011, CNT243C3011, GS23302, MDF76K-30S-1H, GT101-30S-H16, 915-001-1008R, 093G30-B0001A, 093E30-000220-G4, 093F30-B0B01A, IP100-C30B-C15, IS100-C30B-C15, IS100-L30O-C23, FI-X30C2L, MSBK240TP3, HS100-L30N-N23, JS-1267-30, MSBKT2407P30HB, MDF76KBW-30S-1H(55)
• The following displays will be supported:
• G215HVN01.0, M156BGE-L10, IAQS80, IAQS80F, IAQX10, IAQX10M, LB064V02, LB064V02, LB064V02-A1, LB104V03, LB104V03-A1, LB104V3, LC230W02, LC230W02-A5K1, LC230WX3, LC260WX2, LC300W01-A3, LC300W01-A5, LC320W01, LC370W01-A5, LC370WX1, LC420W02, LC420W02-AK, LC420WX5, LC550W01, LM170E01, LM170E01-A5, LM170E01-LTA1, LM170E02, LM170E03, LM171W02, LM181E06-A4M1/D4, LM190E01-C4, LM190E02-A4, LM190E03, LM190E03-B4, LM190E05, LM190E05-SL02/03, LM190E06, LM190E08, LM190E3-B4K1, LM190WX1, LM201U02-A3M1, LM201U03-A3, LM201U04, LM201U04-A3, LM201U05, LM201W01, LM201WE03, LM201WE2, LM220WE1, LM260WU1, LM300W01-A3, LM300WQ3, LP133WX1, LP133WX2, LP141WX1, LP141WX3, LP150E05/E06, LP150X08, LP150X09, LP154W01, LP154WP1, LP154WX4, LP171WP4, LQ190E1LX31, LQ201U1LW21, LQ255T3LZ19, LQ315T3LZ28, LQ315T3LZ49, LTM170E6-L04, LTM170EU, LTM170EU-L01, LTM170EU-L21, LTM190E1, LTM190E1-L01/L03, LTM190E4-L01, LTM190EX, LTM190EX-L01, LTM190M2, LTM213U6, LTM213U6-L01, LTM240M1, LTM240M2, LTM300M1, N150P2-L04, N150P3-L04, N150U3, N150X4-L01, N150X4-L14, NL128102BC29-01, NL128102BM29-05A, NL12810BC29-10, NL10276BC24-19D, T216XW01, LC200WX1, T260XW01VM, LQ197V3DZ89, LTM170ET01, CLAA102NA0BCW, G190EG02 V0, LQ070Y3LG4A, LQ121S1LG71, LB121S03-TL03, M240HW01 V6, LC170WXN, G240HW01-V0, G190EG01-V1, FG100451DSSWNG01, G150XTN06.1_rev1.0, TCG104SVLQ-PNN-AN-37, TCG104SVLQ*PNN-AN*37, T-55787GD104J-LW-AGN, LQ156M3LW01, NL192108AC18-02D, G150XTN06.1_rev1.0, G240HW01, AM-1280800J3TZQW-00, AM-800480D2TMQW-TA0H, LQ185M3LW01, G104XVN01.0, OT104EXWDLV-H1, OT104KXWDLV-00, G121EAN01.0, G121EAN01.1, G121EAN01.2, G121I1-L01, OT121ABWDLT-03, OT121ABWDLV-H0, OT121ZBWDLV-00, LQ121K1LG59, G150XTN06.1, G151EVN01.0, G156HAN02.1, G156XTN01.0, G156XTT01.1, G156XW01 V1, G156XW01 V3, OT156CBWDLT-00, LQ156M3LW01, G170EG01 V1, G170ETN02.0, LB170E01-SL01, G173HW01 V0, G185HAN01.0, G185XW01 V0, G185XW01 V1, M185XTN01.2, G190EAN01.0, G190EAN01.1, G190EAN01.2, G190EG01 V1, G190EG02 V1, G190ETN01, G190SF01 V0, M190PW01 V8, LB190E02-SL02, LB190E02-SL03, LB190E02-SL04, LQ190E1LW52, LQ190E1LW72, LQ190E1LX75, LQ190N1LW01, G220SVN01.0, G230HAN01.1, LM230WF3-SLD1, G238HAN01.0, G238HAN01.1, G238HAN01.2, LM238WF1-SLE1, G240HW01 V0, G240HW01 V1, LM240WU8-SLE1, LM240WUA-SSA1, LM270WF5-SLN2, CLAA104XA02CW, CLAA104XA01CW, CLAA104XA12BW, G156XTT01 V1, G185XW01 V201, G170ETN01.0, G170ETT01.0, G185XW01 V2, VGG107603-0TMLWD, VGG107603-0TMLWC, VGG128005-0TMLWB, VGG107606-6UFLWA, VGG137601-2UFLWA, G215HVN01.0, AM-1024768FTMQW-05H, AM-1280800J3TZQW-00, LQ190E1LW02, ETML1010K6DHA, EJ101IA-01G, EJ101IA-01D, DV215FHM-NN0, G215HAN01.3, G215HCJ-L01, EV238FHM-N11, MV230FHM-N10, MI210UT-1, ETML1210G0DRA, NL10276AC30-53D, NL128102AC29-17, LM215WFA, G240HW01V1, G215HVN01.3, JIC-192FILXXNL000-01, G156HAN02.3, G170ETN03.1, TM156VDSG17, OT070ZGWDLV00, G070ACE-L01, P215HAN01.2, G104XCE-LH1, G070ACE-LH3, G156HAN04.0, LM270WF7, PH128800T003-ZFA, PH128800T003-ZFC01, DLC1850BDP00LF-C-2, G190EG02V1(V104), P1850FHF1MB01, P1730FHF1MB00, P1560FHF2MA00, G156HAN04.1, G215HCJ-LH1, ETML121025LUDYA
• The following board will be supported:
• NUC5I5MYBE-INTEL NUC BOARD, aStone A9r2 - armstone A9r4
• Compatible connectors:
• P-TWO 196479-40041-3, JS-1276
• Compatible to:
• FI-X30HL-KITASSY-300M

Product Notes

Matching backlight cable : KAB-DF19G-14S-0500RK
