Wire colour code

KAB-SET-FI-X30XX-2002-XX-0500RK

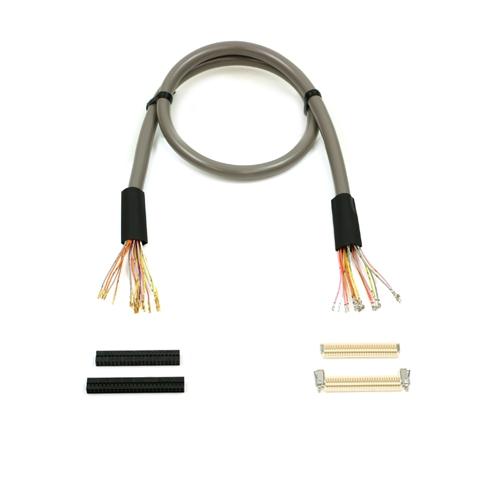

Wire colour code This cable set allows a quick and easy connection between a display with a STM connector P2407P30 series or PK2407P30 (compatible with JAE FI-X30H or FI-X30HL)) and any graphics board connector (2-rowed with pitch = 2 mm). We supply a 26-pin round cable with two STM connectors for side 1 (STM-P2407P30 and PK2407P30), lockable). For side 2 we supply a STE-2002-2X22P and STE-2022-2X25P connector. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled in the corresponding housings according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM-P2407P30 compatible with JAE FI-X30H, STM-PK2407P30 compatible with JAE FI-X30HL (lockable)

side 2: STE-2002-2X22P and STE-2002-2X25P

pitch 2.00 mm, 2-rowed, both sides unplugged 26-pin, highly flexible round cable, twin stranded, AWG28, length = 500 mm

included housings: STM-P2407P30, STM-PK2407P30, STE-2002-2X22P. STE-2002-2X25P

operating temperature: -20 °C to 85 °C

weight: 33.07 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS and DVI
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• FI-XB30SRL-HF11, STE-2002-2X22P, STE-2002-2X25P, FI-X30H, FI-X30HL (verriegelbar), P2407P30, PK2407P30 (verriegelbar), FI-X30S-HF-NPB, A1006-WR-S-30P, CNTH243A30123, CNT243A3011, CNT243C3011, GS23302, MDF76K-30S-1H, GT101-30S-H16, 915-001-1008R, 093G30-B0001A, 093E30-000220-G4, 093F30-B0B01A, IP100-C30B-C15, IS100-C30B-C15, IS100-L30O-C23, FI-X30C2L, MSBK240TP30, JS-1267-30, MSBKT2407P30HB, MDF76KBW-30S-1H(55)
• The following displays will be supported:
• G215HVN01.0, IAQS80, IAQS80F, IAQX10, IAQX10M, LB064V02, LB064V02, LB064V02-A1, LB104V03, LB104V03-A1, LB104V3, LC230W02, LC230W02-A5K1, LC230WX3, LC260WX2, LC300W01-A3, LC300W01-A5, LC320W01, LC370W01-A5, LC370WX1, LC420W02, LC420W02-AK, LC420WX5, LC550W01, LM170E01, LM170E01-A5, LM170E01-LTA1, LM170E02, LM170E03, LM171W02, LM181E06-A4M1/D4, LM190E01-C4, LM190E02-A4, LM190E03, LM190E03-B4, LM190E05, LM190E05-SL02/03, LM190E06, LM190E08, LM190E3-B4K1, LM190WX1, LM201U02-A3M1, LM201U03-A3, LM201U04, LM201U04-A3, LM201U05, LM201W01, LM201WE03, LM201WE2, LM220WE1, LM260WU1, LM300W01-A3, LM300WQ3, LP133WX1, LP133WX2, LP141WX1, LP141WX3, LP150E05/E06, LP150X08, LP150X09, LP154W01, LP154WP1, LP154WX4, LP171WP4, LQ190E1LX31, LQ201U1LW21, LQ255T3LZ19, LQ315T3LZ28, LQ315T3LZ49, LTM170E6-L04, LTM170EU, LTM170EU-L01, LTM170EU-L21, LTM190E1, LTM190E1-L01/L03, LTM190E4-L01, LTM190EX, LTM190EX-L01, LTM190M2, LTM213U6, LTM213U6-L01, LTM240M1, LTM240M2, LTM300M1, N150P2-L04, N150P3-L04, N150U3, N150X4-L01, N150X4-L14, NL128102BC29-01, NL128102BM29-05A, NL12810BC29-10, NL10276BC24-19D, T216XW01, LC200WX1, T260XW01VM, LQ197V3DZ89, LTM170ET01, CLAA102NA0BCW, G190EG02 V0, LQ070Y3LG4A, LQ121S1LG71, LB121S03-TL03, M240HW01 V6, LC170WXN, FG100451DSSWNG01, G150XTN06.1_rev1.0, TCG104SVLQ-PNN-AN-37, TCG104SVLQ*PNN-AN*37, T-55787GD104J-LW-AGN, LQ156M3LW01, NL192108AC18-02D, G150XTN06.1_REV1.0, AM-1280800J3TZQW-00, AM-800480D2TMQW-TA0H, LQ185M3LW01, G104XVN01.0, OT104EXWDLV-H1, OT104KXWDLV-00, G121EAN01.0, G121EAN01.1, G121EAN01.2, G121I1-L01, OT121ABWDLT-03, OT121ABWDLV-H0, OT121ZBWDLV-00, LQ121K1LG59, G150XTN06.1, G151EVN01.0, G156HAN02.1, G156XTN01.0, G156XTT01.1, G156XW01 V1, G156XW01 V3, OT156CBWDLT-00, LQ156M3LW01, G170EG01 V1, G170ETN02.0, LB170E01-SL01, G173HW01 V0, G185HAN01.0, G185XW01 V0, G185XW01 V1, M185XTN01.2, G190EAN01.0, G190EAN01.1, G190EAN01.2, G190EG01 V1, G190EG02 V1, G190ETN01, G190SF01 V0, M190PW01 V8, LB190E02-SL02, LB190E02-SL03, LB190E02-SL04, LQ190E1LW52, LQ190E1LW72, LQ190E1LX75, LQ190N1LW01, G220SVN01.0, G230HAN01.1, LM230WF3-SLD1, G238HAN01.0, G238HAN01.1, G238HAN01.2, LM238WF1-SLE1, G240HW01 V0, G240HW01 V1, LM240WU8-SLE1, LM240WUA-SSA1, LM270WF5-SLN2, CLAA104XA02CW, CLAA104XA01CW, CLAA104XA12BW, TM070RDSG12, G156XTT01 V1, G185XW01 V201, G170ETN01.0, G170ETT01.0, G185XW01 V2, VGG107603-0TMLWD, VGG107603-0TMLWC, VGG128005-0TMLWB, VGG107606-6UFLWA, VGG137601-2UFLWA, G215HVN01.0, AM-1024768FTMQW-05H, AM-1280800J3TZQW-00, LQ190E1LW02, ETML1010K6DHA, EJ101IA-01G, EJ101IA-01D, MI210UT-1, NL10276AC30-53D, NL128102AC29-17, LM215WFA, G240HW01V1, G215HVN01.3, JIC-192FILXXNL000-01, G156HAN02.3, G170ETN03.1, TM156VDSG17, OT070ZGWDLV00, G070ACE-L01, P215HAN01.2, G104XCE-LH1, G070ACE-LH3, G156HAN04.0, LM270WF7, ET101025LDXA, ET121025LDXA, ETML101025LDYA, ETML156025LDYA, G190EG02V1(V104), P1850FHF1MB01, P1730FHF1MB00, P1560FHF2MA00, G156HAN04.1, G215HCJ-LH1, ETML121025LUDYA
• Compatible connectors:
• P-TWO 196479-40041-3, JS-1266, JS-1276
• The following boards will be supported:
• NUC5I5MYBE-INTEL NUC BOARD, aStone A9r2 - armstone A9r4

Product Notes

Matching backlight cable : KAB-DF19G-14S-0500RK
