KAB-SET-FI-S20S-FI-SXXS-0500RK

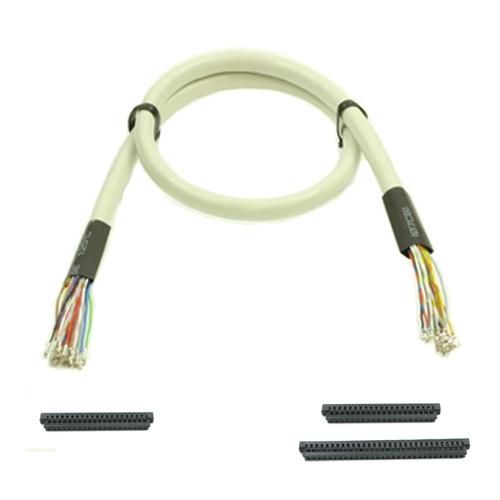

Wire colour code This cable set allows a quick and easy connection between a display with a STM connector FI-S20S (20 pin) and any graphics board connector of the STM FI-S30S (30 pin) or FI-S20S (20 pin). We supply a 20-pin round cable with a STM connector FI-S20S on side 1. Two STM connectors FI-S20S (20 pin) and FI-S30S (30 pin) for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM FI-S20S (20 pin)

side 2: STM FI-S20S (20 pin), FI-S30S (30 pin)

both sides unplugged, LTG-DCY, 20-pin, highly flexible round cable, twisted pair, UL2560, AWG28, shielded, length = 500 mm

operating temperature: -20 °C to 85 °C

weight: 32.07 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable is compatible with socket:
• I-PEX 20199-020
• Matching LED backlight cable:
• KAB-SHLP-10-0500LI, KAB-FI-S06S-0500LI, KAB-SHLP-06-0500LI

Product Notes

This cable fits to the following pin headers: 076B20-0048RA-G4, FI-SEB20P-HFE, FI-SEB20P-HF13E, FI-SEB20P-HF13RE, FI-SEB20P-HF10E, FI-SEB20P-HF16RE, FI-SEB20P-HF13E-E1500, TU1213HNO-20, TU1213WNR-20S
